CZE 4818 KAA (968999228) - Husqvarna 48" Zero-Turn Mower (2003-11) TRANSMISSION Parts Diagram

48" Zero-Turn Mower

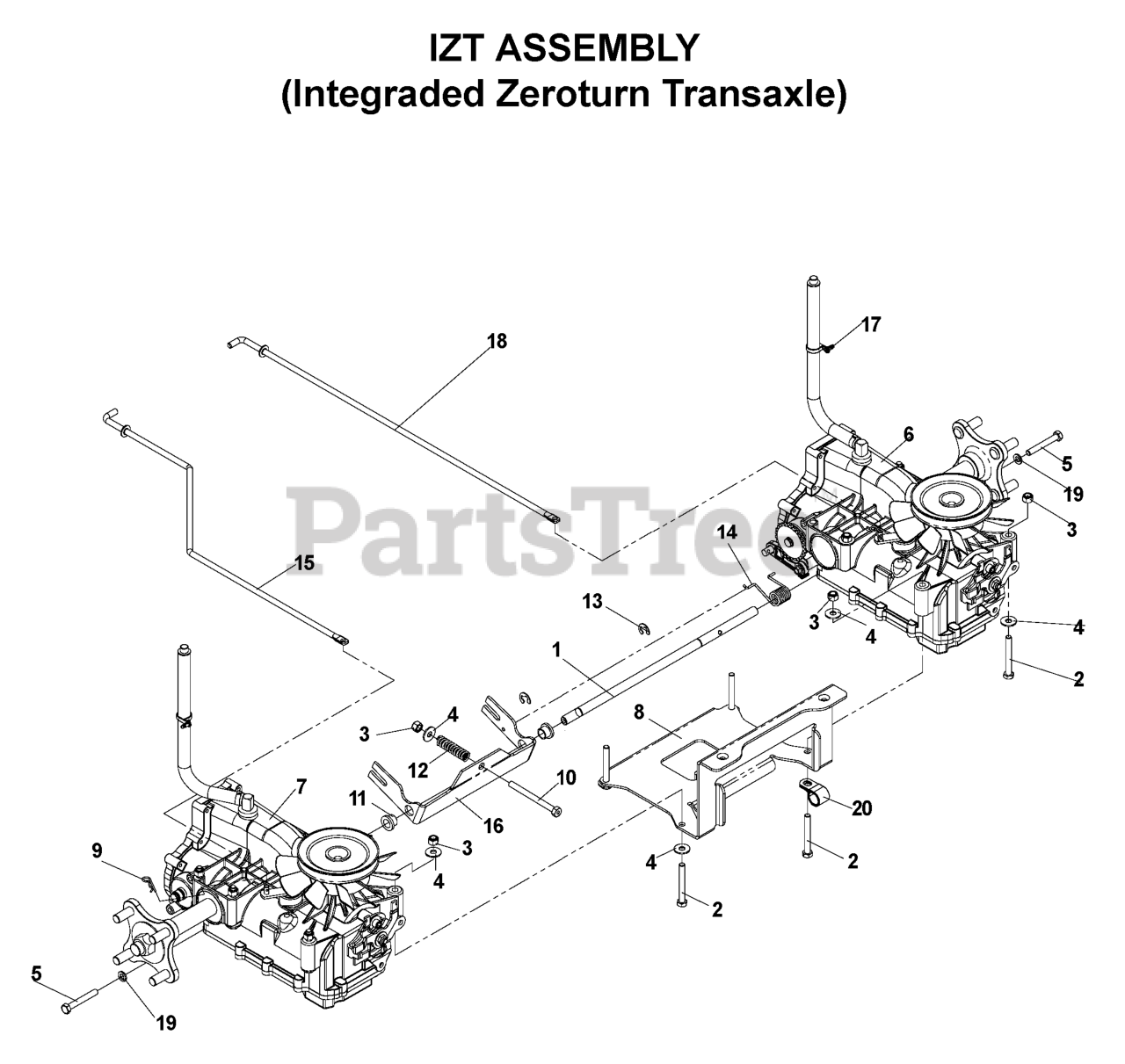

TRANSMISSION Parts Diagram

  • Title

14

Husqvarna 539107708

TORSION SPRING

$7.49

$

In Stock, Qty 5

0

19

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

16

Husqvarna 539107488

BRAKE U-ARM

$

$

Not available

17

Husqvarna 539107921

RETAINER

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539108002

HEX SCREW-.313C X 2.25 GR8

$3.99

$

In Stock, Qty 6

0

7

Husqvarna 539107606

HG_IZT-RIGHT

$

$

Not available

8

Husqvarna 539107556

IZT SUPPORT

$

$

Not available

6

Husqvarna 539107605

HG_IZT-LEFT

$

$

Not available

9

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

539107710

Husqvarna 539107710

BELT, IZT

$

$

Not available

15

Husqvarna 539107498

IZT BYPASS LINKAGE

$

$

Not available

18

Husqvarna 539107931

BYPASS LINKAGE-LH

$

$

Not available

11

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

12

Husqvarna 539102796

SPRING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

4

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 539107595

BRAKE BOLT

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539107554

TIE ROD

$

$

Not available

3

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539107891

CLIP

$2.99

$

In Stock, only 1 left!

0
