CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

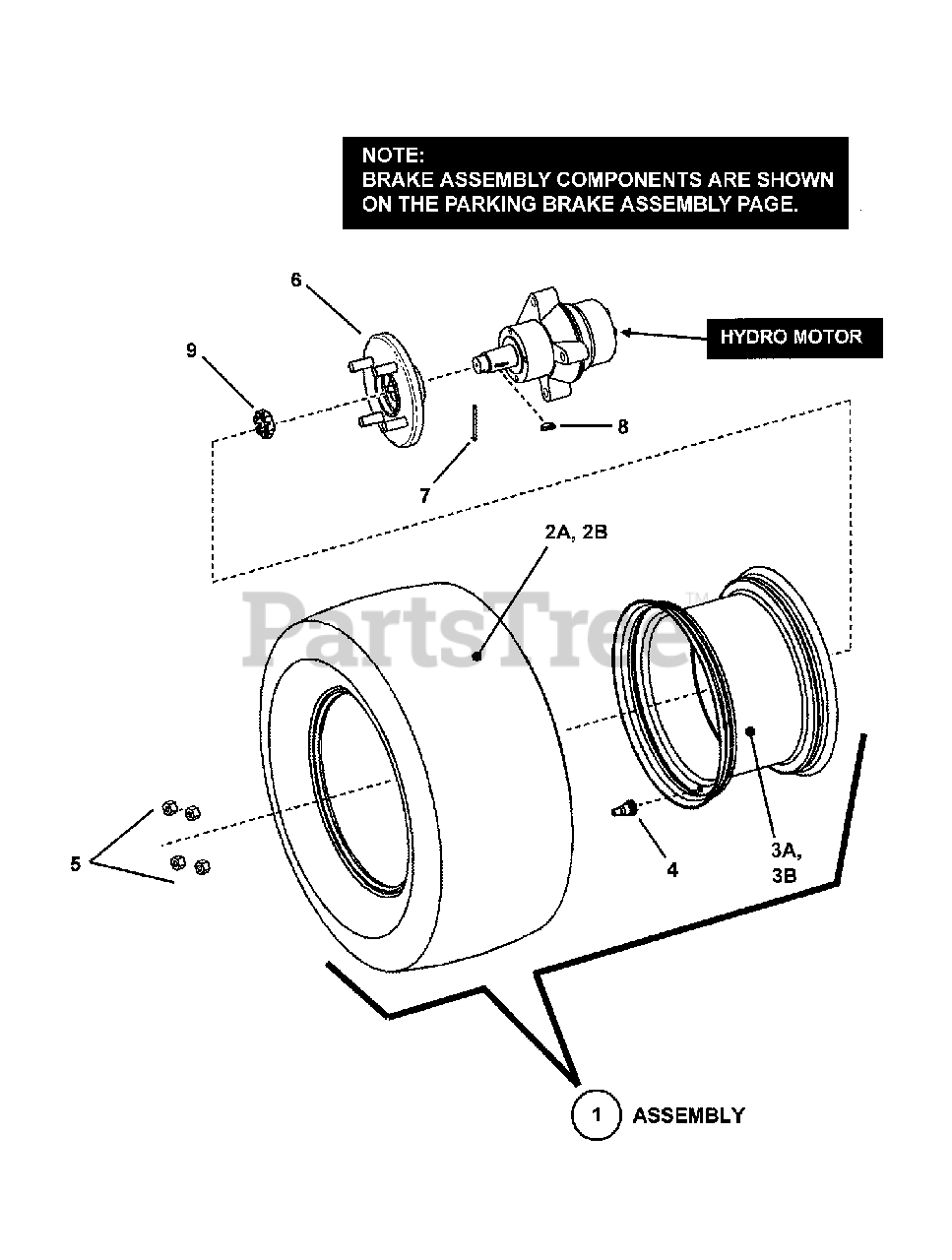

DRIVE TIRE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Snapper 7071838

WHEEL ASSY, 20 x 10-10 4 Ply

Note: used on HZT models (incl. items 2A, 3A & 4)

$

$

Not available

1

Snapper 7100110

WHEEL ASSY, 22 x 10-10 4 Ply

Note: used on CZT models (incl. items 2B, 3B & 4)

$

$

Not available

2A

Snapper 7071837

TIRE, 20 x 10-10 4 Ply
(Superseded to 7071837YP)

$

$

Not available

2B

Snapper 7100209

TIRE, 22 x 10-10 4 Ply "Turfmaster"
(Superseded to 7100209YP)

$227.99

$

Usually ships in 2-12 days

0

3A

Snapper 7071836

RIM, 10 x 7.00 4/4

$

$

Not available

3B

Snapper 7100208

RIM, 10 x 7.00

$

$

Currently unavailable

4

Snapper 7012234

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

5

Snapper 7027192

LUG NUT, 1/2-20 Tapered Seat
(Superseded to 7027192SM)

$

$

Not available

6

Snapper 7078222

BRAKE DRUM
(Superseded to 7078222YP)

Note: also shown on Parking Break Assembly page

$36.99

$

Usually ships in 2-12 days

0

7

Snapper 7091793

PIN, 9/64 x 1-1/2" Cotter
(Superseded to 7091793YP)

Note: included as part of wheel motor

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7013861

KEY, #11 Woodruff
(Superseded to 7013861YP)

Note: included as part of wheel motor

$3.99

$

In Stock, only 2 left!

0

9

Snapper 7091828

NUT, 3/4-20 Slotted Hex

Note: included as part of wheel motor

$

$

Not available
