CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp HYDRO IDLER ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

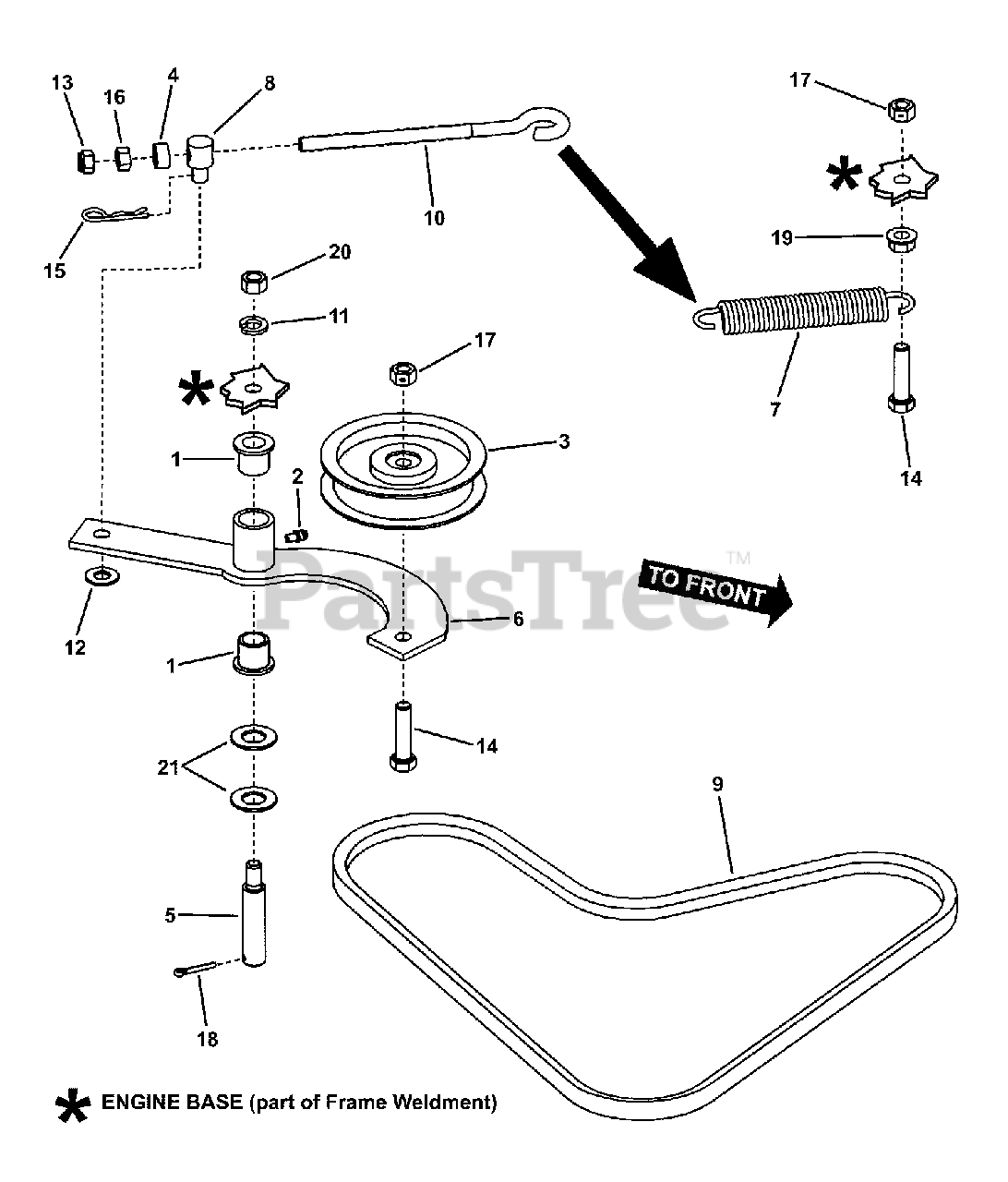

HYDRO IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7014409

BEARING, 9/16" I.D. Flange
(Superseded to 7014409SM)

$7.49

$

In Stock, only 4 left!

0

2

Snapper 7014669

LUBE FITTING, 3/16"
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 14

0

3

Snapper 7018574

FLAT IDLER, 4.12 O.D.
(Superseded to 7018574SM)

$40.99

$

In Stock, Qty 13

0

4

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7035816

IDLER STUD (3/8-24)
(Superseded to 7035816YP)

$

$

Not available

6

Snapper 7059094

WELDMENT, Idler Arm
(Superseded to 7059094YP)

Note: Hydro Drive

$259.99

$

Usually ships in 2-12 days

0

7

Snapper 7073992

SPRING, Extension
(Superseded to 7073992YP)

$

$

Not available

8

Snapper 7075078

SWIVEL, Adjustable
(Superseded to 7075078YP)

$20.99

$

In Stock, only 1 left!

0

9

Snapper 7075109

* BELT, Traction Drive (HA Section, 47.5 Effective Length)
(Superseded to 7075109YP)

Note: Series 0 Moodels

$35.99

$

In Stock, only 3 left!

0

9

Snapper 7100177

* BELT, Traction Drive (4L Section, 48.3 Effective Length)
(Superseded to 7100177YP)

Note: Series 1 Models

$41.99

$

In Stock, only 3 left!

0

10

Snapper 7078063

EYEBOLT, 5/16-18
(Superseded to 7078063YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

12

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

15

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, only 3 left!

0

17

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

18

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, Qty 14

0

19

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 17

0

20

Snapper 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091804

WASHER, 9/16" Flat (Type Narrow)
(Superseded to 5103679)

$4.49

$

Usually ships in 2-12 days

0
