CZT 2142 (7800381) - Simplicity Axion 42" Zero-Turn Mower, 21hp 42" Mower Deck - Housing & Arbor Group Parts Diagram

Axion 42" Zero-Turn Mower, 21hp

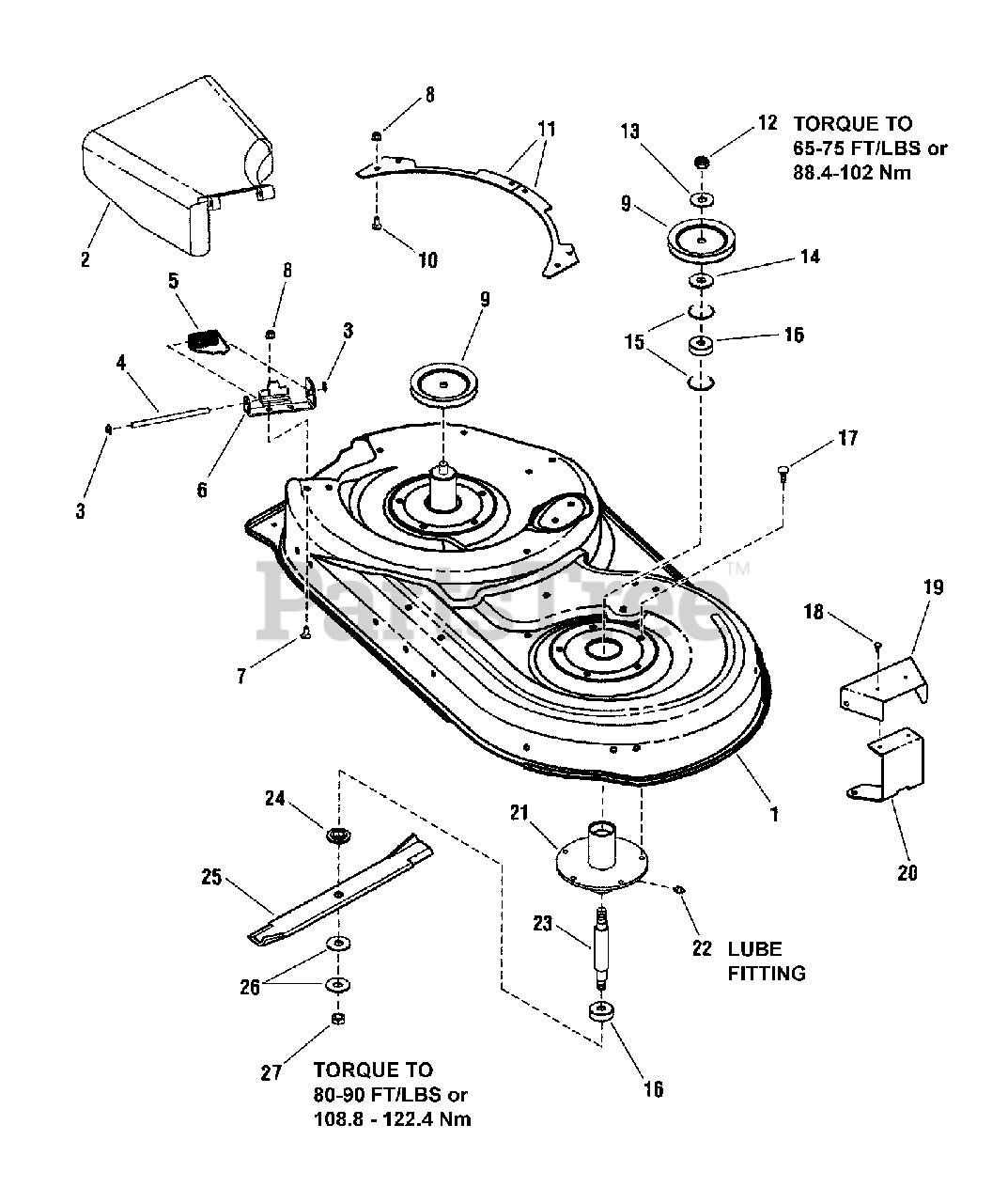

42" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1687280SM

HOUSING, 42" Deck (Smi Orange)

$

$

Not available

2

Simplicity 094707MA

ASSEMBLY, Deflector Chute

$115.99

$

In Stock, only 1 left!

0

3

Simplicity 1960093SM

PUSH NUT, 3/8" Pal Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 094957ZMA

ROD, Deflector

$11.99

$

In Stock, Qty 5

0

5

Simplicity 0166X4MA

SPRING, Torsion

$6.99

$

In Stock, Qty 12

0

6

Simplicity 094956E701MA

BRACKET, Hinge

$22.99

$

In Stock, only 2 left!

0

7

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1960686SM

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 18

0

9

Simplicity 1732354SM

PULLEY, Drive, 5-1/2"

$32.99

$

In Stock, Qty 11

0

10

Simplicity 1931335SM

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR5
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

11

Simplicity 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 2 left!

0

12

Simplicity 1922014SM

NUT, 5/8-18 Hex Jam
(Superseded to 703904)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 7016440SM

WASHER, 5/8" Bellville

$8.49

$

In Stock, Qty 20+

0

14

Simplicity 7072440SM

SPACER, Pulley

$9.99

$

In Stock, Qty 12

0

15

Simplicity 7012491SM

RING, 1.85" Internal Retaining

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 1923683SM

SCREW, 3/8-16 x 3/4" Hex Taptite
(Superseded to 703950)

$5.99

$

In Stock, Qty 7

0

18

Simplicity 1925003SM

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, Qty 19

0

19

Simplicity 1732832ASM

COVER, Pulley

$65.99

$

Usually ships in 2-12 days

0

20

Simplicity 1732282ASM

BRACKET, Arbor Guard
(Superseded to 1732282BMYP)

$68.99

$

Usually ships in 2-12 days

0

21

Simplicity 1731372ASM

WELDMENT, Spindle Housing
(Superseded to 1731372BMYP)

$104.99

$

In Stock, only 2 left!

0

22

Simplicity 1704314SM

LUBE FITTING, .250 Drive Type
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

23

Simplicity 7072537SM

SHAFT, Spindle

$36.99

$

Usually ships in 2-12 days

0

24

Simplicity 1731917SM

WASHER, Spindle Blade, Powdered Metal

$8.99

$

In Stock, Qty 20+

0

25

Simplicity 1731898SM

BLADE, 19.64
(Superseded to 1731898BZYP)

$22.99

$

In Stock, Qty 20+

0

26

Simplicity 7024467SM

WASHER, 9/16" Bellville

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 7091633SM

NUT, 9/16-18 Hex, GR B

$4.99

$

In Stock, Qty 20+

0
