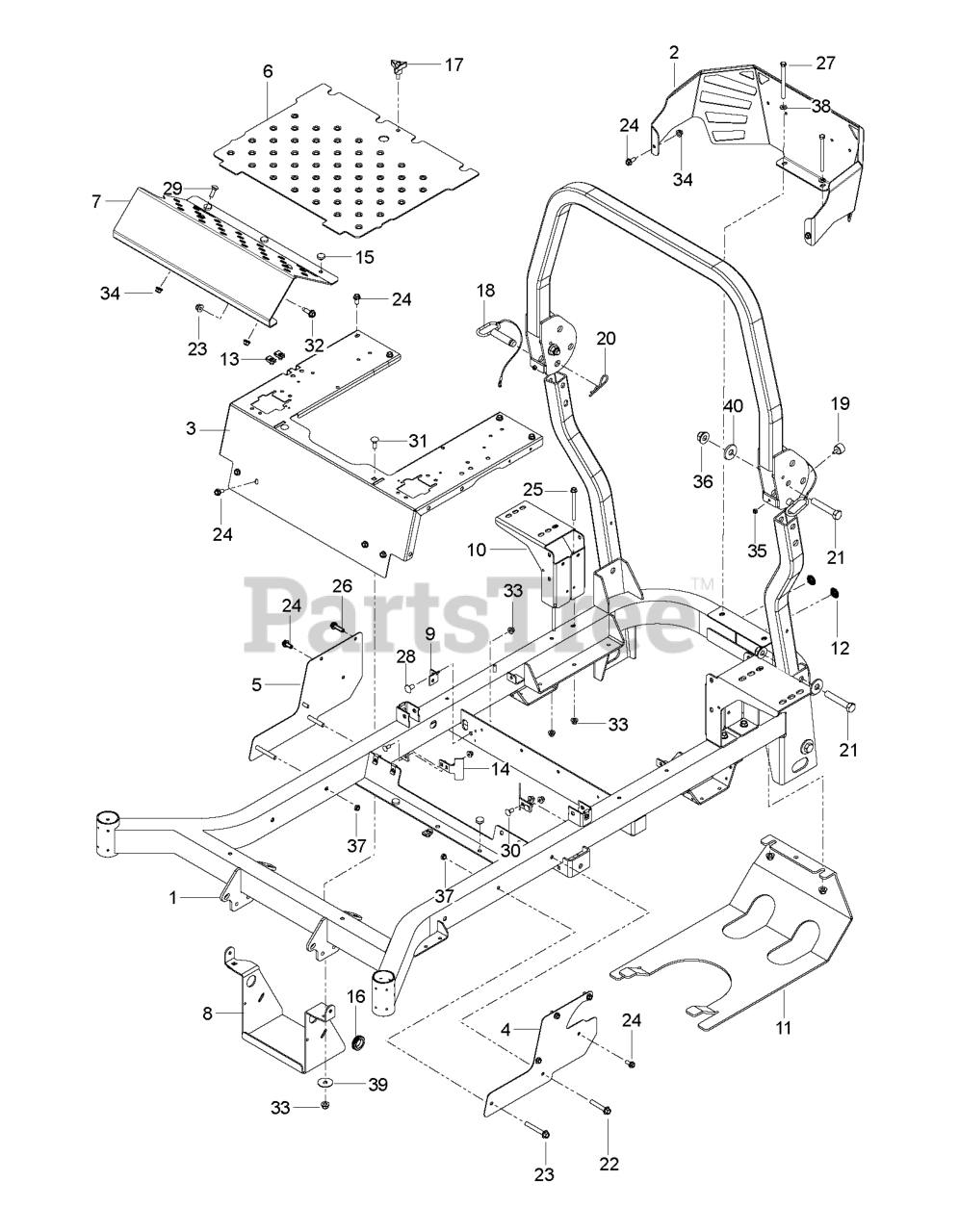

CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) FRAME Parts Diagram

52" Zero-Turn Riding Mower

FRAME Parts Diagram

  • Title

1

RedMax 501656005

FRAME.KIT.W/DECALS.REDMAX.672

$2992.99

$

Usually ships in 3-10 days

0

2

RedMax 587618312

$

$

Currently unavailable

3

RedMax 586867706

SUPPORT SEAT CONTROL SNAPPER R
(Superseded to 598704906)

$179.99

$

Usually ships in 3-10 days

0

4

RedMax 586560103

BRACKET SIDE LH SNAPPER RED X6

$15.99

$

Usually ships in 3-10 days

0

5

RedMax 586560203

BRACKET SIDE RH SNAPPER RED X6

$15.99

$

Usually ships in 3-10 days

0

6

RedMax 575620303

KIT.PLATE.FLOOR.W/DCL.REDM.672

$203.99

$

Usually ships in 3-10 days

0

7

RedMax 521941304

PLATE.FOOTREST.PNT.G-BLACK

$

$

Not available

8

RedMax 587048702

BRACKET.PNT.BATTERY.BLK

$56.99

$

Usually ships in 3-10 days

0

9

RedMax 575245202

BRACKET.DAMPENER.BLACK

$23.99

$

In Stock, only 4 left!

0

10

RedMax 575533602

MOUNT, TANK, ZT BLK

$77.99

$

In Stock, only 2 left!

0

11

RedMax 521921805

GUARD SKID PNT 498

$119.99

$

Usually ships in 3-10 days

0

12

RedMax 587990501

CAP.PLUG.BP-1.BLACK

$4.99

$

In Stock, only 2 left!

0

13

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 18

0

14

RedMax 505256401

STOP, DECK, EZ+

$22.99

$

Usually ships in 3-10 days

0

15

RedMax 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 6

0

16

RedMax 539105974

RUBBER GROMMET

$

$

Not available

17

RedMax 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

18

RedMax 574388001

PIN, ROPS
(Superseded to 574388002)

$14.99

$

In Stock, only 4 left!

0

19

RedMax 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 539200715

PIN HAIR .148 X 2-15/16 #210

$

$

Not available

21

RedMax 580754601

5/8-11 X 3-1/2 HHB GRADE 5
(Superseded to 580754602)

$9.99

$

Usually ships in 3-10 days

0

22

RedMax 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD
(Superseded to 596581901)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD
(Superseded to 596436901)

$5.99

$

Usually ships in 3-10 days

0

24

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

26

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 539102335

HCS 5/16C X 4

$

$

Not available

28

RedMax 872050606

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 539990208

RHSNB 5/16C X 1

$

$

Not available

30

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, only 1 left!

0

31

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

32

RedMax 539113226

RP BLT 5/16-18 X 1 THRD FORM D

$

$

Not available

33

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 8

0

34

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

35

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$

$

Not available

36

RedMax 525829101

NUT 5/8-11 FLG NYLOC ZD
(Superseded to 525829102)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 20+

0

38

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

39

RedMax 819132416

WASHER.13/32X1-1/2X16GA
(Superseded to 596133301)

$5.99

$

Usually ships in 3-10 days

0

40

RedMax 539102653

WASHER, 5/8 FLAT
(Superseded to 594946401)

$5.99

$

Usually ships in 3-10 days

0

RedMax 575623702

ROPS MZT ASSEMBLY BLACK

Note: NOT SHOWN

$897.99

$

Usually ships in 3-10 days

0
