CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) SEAT Parts Diagram

52" Zero-Turn Riding Mower

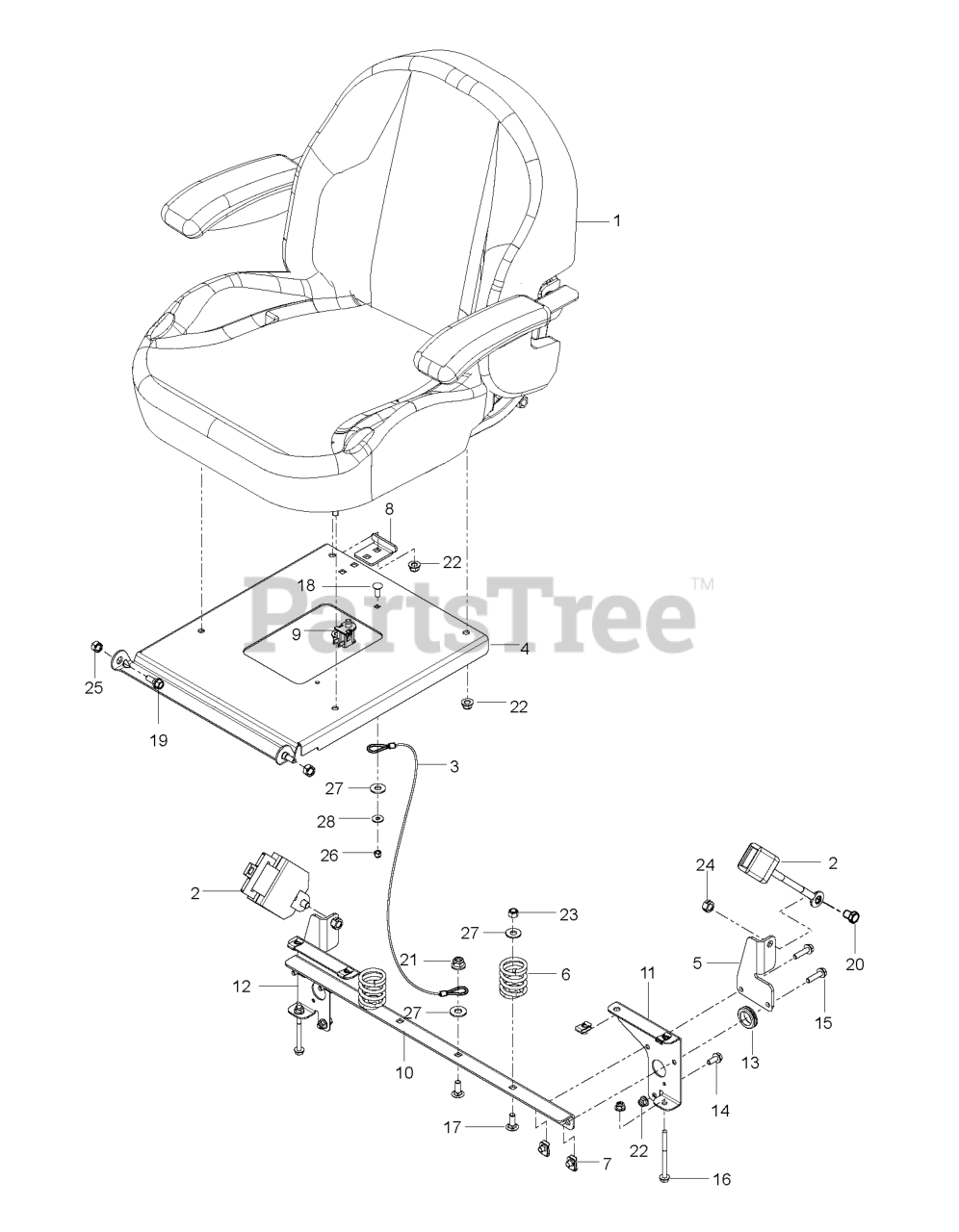

SEAT Parts Diagram

  • Title

1

RedMax 590896601

SEAT C1110 EVC REDMAX

$909.99

$

Usually ships in 3-10 days

0

2

RedMax 539130359

SEAT BELT - RETRACTABLE

$56.99

$

Usually ships in 3-10 days

0

3

RedMax 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

4

RedMax 501762106

SUPPORT SEAT SNAPPER RED X672

$

$

Not available

5

RedMax 584916802

MOUNT.SEAT.BELT.BLACK

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.49

$

In Stock, Qty 20+

0

7

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

8

RedMax 539130793

STOP, SEAT - BLACK

$12.99

$

Usually ships in 3-10 days

0

9

RedMax 539119741

SEAT SWITCH
(Superseded to 532421062)

$10.99

$

In Stock, Qty 18

0

10

RedMax 584809102

SUPPORT.SEAT. BLK

$24.99

$

Usually ships in 3-10 days

0

11

RedMax 584990102

SUPPORT.RT.BLK

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 584990202

SUPPORT.LT.BLK

$4.99

$

In Stock, only 4 left!

0

13

RedMax 539105974

RUBBER GROMMET

$

$

Not available

14

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 539115620

1/4-20X3/4 CARR BLT
(Superseded to 539990074)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

20

RedMax 539112034

HCS 7/16-20 X .75 GD 5

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

22

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

23

RedMax 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

RedMax 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

26

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

28

RedMax 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0
