CZT 54 L (967943601-00) - RedMax 54" Zero-Turn Riding Mower (2018-09) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Riding Mower

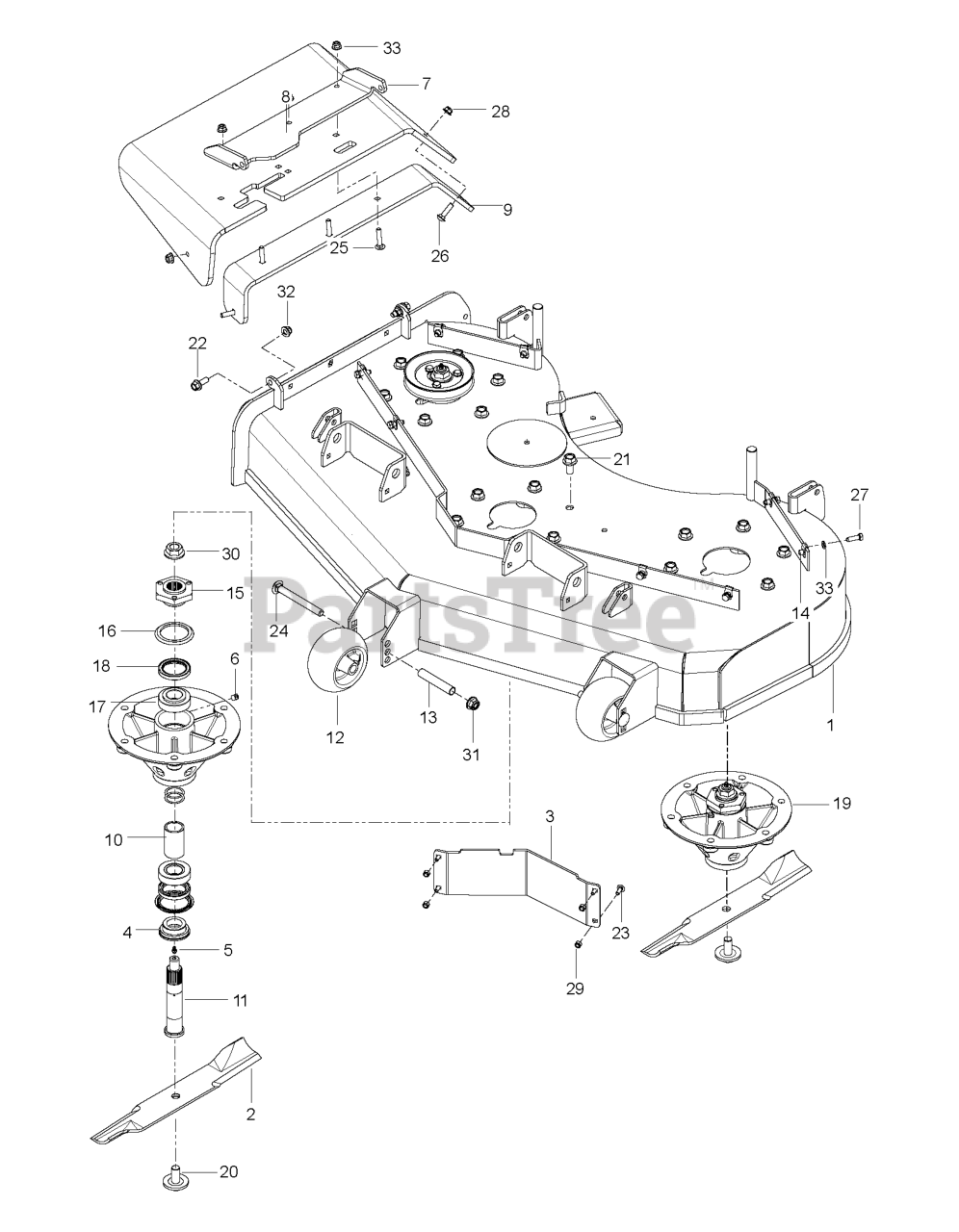

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

RedMax 588127607

DECK.SVC.W/DCLS.CZT.48X.MS672

$2849.99

$

Usually ships in 3-10 days

0

2

RedMax 581055502

BLADE 19" HIGH LIFT (3 2)

$31.99

$

In Stock, only 3 left!

0

3

RedMax 510437502

BAFFLE, DIVERTER 54"/60" LH

$56.99

$

Usually ships in 3-10 days

0

4

RedMax 580942501

SEAL

$9.49

$

In Stock, only 2 left!

0

5

RedMax 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

6

RedMax 539977326

PLUG-VENTED

$11.99

$

In Stock, only 1 left!

0

7

RedMax 574197002

BRKT - CHUTE MTG BLACK

$74.99

$

Usually ships in 3-10 days

0

8

RedMax 525485801

CHUTE, DISCHARGE 48-52

$96.99

$

In Stock, only 2 left!

0

9

RedMax 525486002

BRKT, CHUTE SUPPORT BLACK

$102.99

$

In Stock, only 1 left!

0

10

RedMax 580942301

SPACER

$11.99

$

In Stock, only 2 left!

0

11

RedMax 580942101

SHAFT

$62.99

$

In Stock, only 2 left!

0

12

RedMax 574169601

ROLLER, GAUGE .635 BORN

$20.99

$

In Stock, Qty 20+

0

13

RedMax 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 16

0

14

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, only 1 left!

0

15

RedMax 580942201

HUB

$26.99

$

In Stock, only 2 left!

0

16

RedMax 580942701

SEAL V-RING 55MM

$4.99

$

In Stock, only 2 left!

0

17

RedMax 580941801

BEARING
(Superseded to 583911101)

$56.99

$

In Stock, only 2 left!

0

18

RedMax 580942601

SEAL SHAFT

$6.99

$

In Stock, only 2 left!

0

19

RedMax 580943305

SPINDLE.ASSY.ALUMINUM

$262.99

$

In Stock, only 2 left!

0

20

RedMax 539119007

BLADE BOLT/WASHER

$13.99

$

In Stock, Qty 10

0

21

RedMax 574210601

HHFS 1/2-13 X 1 GR5 ZD
(Superseded to 574210602)

$3.49

$

In Stock, Qty 5

0

22

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.49

$

In Stock, Qty 5

0

23

RedMax 539115620

1/4-20X3/4 CARR BLT
(Superseded to 539990074)

$

$

Not available

24

RedMax 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$6.99

$

In Stock, Qty 9

0

25

RedMax 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

26

RedMax 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 19

0

27

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, only 1 left!

0

28

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

29

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$

$

Not available

30

RedMax 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

31

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 13

0

32

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 20+

0

33

RedMax 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.49

$

In Stock, only 1 left!

0

RedMax 574754201

KIT, BEARING ASSEMBLY

$113.99

$

In Stock, only 2 left!

0
