CZT 72 x (967943501-00) - RedMax 72" Zero-Turn Riding Mower (2018-07) MOWER DECK / CUTTING DECK Parts Diagram

72" Zero-Turn Riding Mower

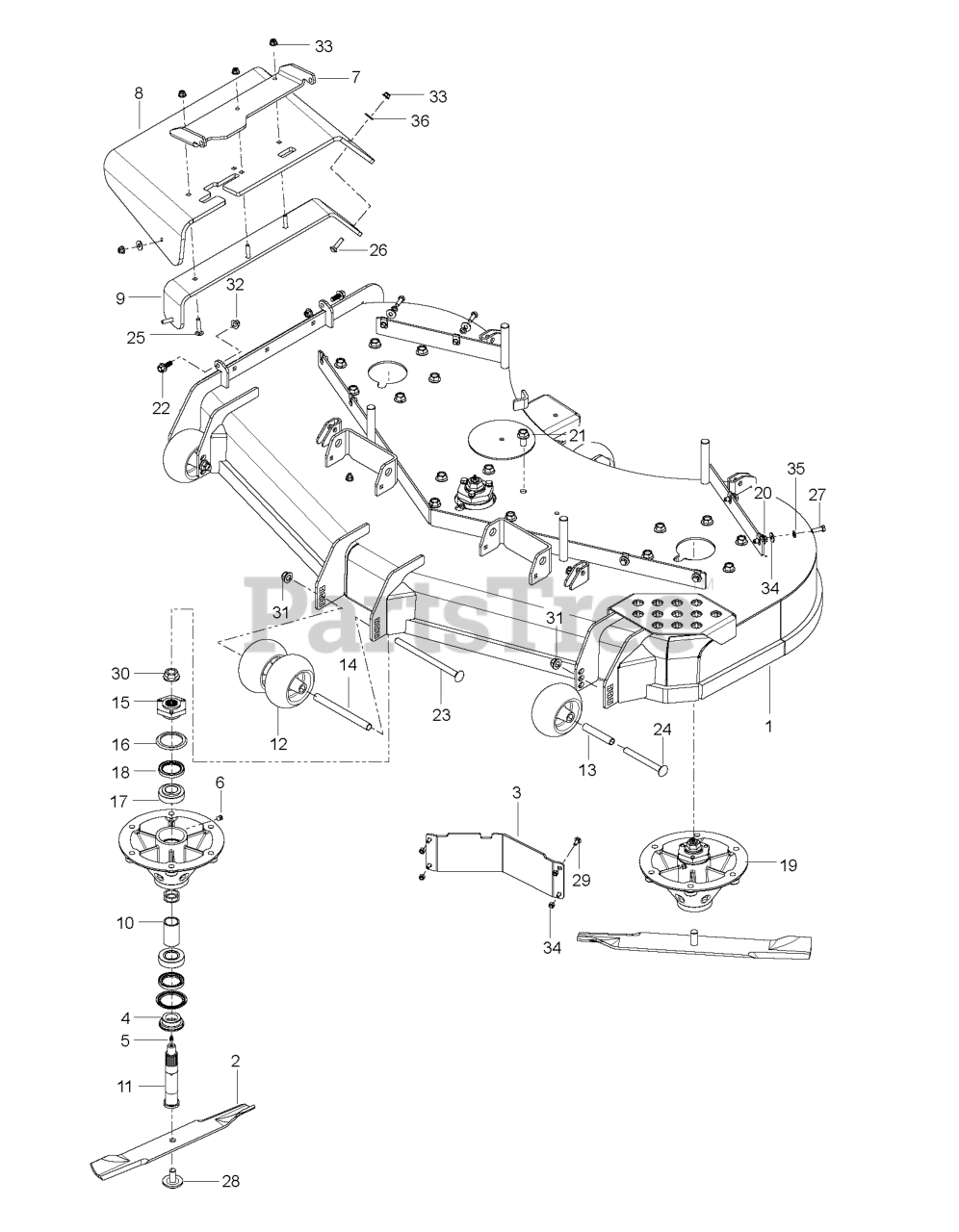

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

RedMax TBD

Note: 588 12 76-10 Deck w/ Safety Decals

$

$

Not available

2

RedMax 539105476

BLADE OEM - 25"

$43.99

$

In Stock, only 3 left!

0

3

RedMax 574221802

BAFFLE, DIVERTER 72" BLACK

$31.99

$

Usually ships in 3-10 days

0

4

RedMax 580942501

SEAL

$9.49

$

In Stock, only 2 left!

0

5

RedMax 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

6

RedMax 539977326

PLUG-VENTED

$11.99

$

In Stock, only 1 left!

0

7

RedMax 574197002

BRKT - CHUTE MTG BLACK

$74.99

$

Usually ships in 3-10 days

0

8

RedMax 525485701

CHUTE, DISCHARGE 60-72

$68.99

$

In Stock, only 2 left!

0

9

RedMax 525485902

BRKT - CHUTE SUPPORT BLACK

$96.99

$

Usually ships in 3-10 days

0

10

RedMax 580942301

SPACER

$11.99

$

In Stock, only 2 left!

0

11

RedMax 580942101

SHAFT

$62.99

$

In Stock, only 2 left!

0

12

RedMax 574169601

ROLLER, GAUGE .635 BORN

$20.99

$

In Stock, Qty 20+

0

13

RedMax 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 16

0

14

RedMax 574196501

TUBE, ROLLER AXLE LONG
(Superseded to 574196502)

$22.99

$

In Stock, only 2 left!

0

15

RedMax 580942201

HUB

$26.99

$

In Stock, only 2 left!

0

16

RedMax 580942701

SEAL V-RING 55MM

$4.99

$

In Stock, only 2 left!

0

17

RedMax 580941801

BEARING
(Superseded to 583911101)

$56.99

$

In Stock, only 2 left!

0

18

RedMax 580942601

SEAL SHAFT

$6.99

$

In Stock, only 2 left!

0

19

RedMax 580943306

SPINDLE.ASSY.IRON

$341.99

$

In Stock, only 1 left!

0

20

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, only 1 left!

0

21

RedMax 574210601

HHFS 1/2-13 X 1 GR5 ZD
(Superseded to 574210602)

$3.49

$

In Stock, Qty 5

0

22

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.49

$

In Stock, Qty 5

0

23

RedMax 872140864

RHSNB 1/2-13 X 8 GR5 ZD
(Superseded to 594944501)

$9.49

$

In Stock, only 3 left!

0

24

RedMax 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$6.99

$

In Stock, Qty 9

0

25

RedMax 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

26

RedMax 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 19

0

27

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, only 1 left!

0

28

RedMax 539119007

BLADE BOLT/WASHER

$13.99

$

In Stock, Qty 10

0

29

RedMax 539115620

1/4-20X3/4 CARR BLT
(Superseded to 539990074)

$

$

Not available

30

RedMax 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

31

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 13

0

32

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 20+

0

33

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

34

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$

$

Not available

35

RedMax 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.49

$

In Stock, only 1 left!

0

36

RedMax 819121414

WASHER
(Superseded to 734117201)

$

$

Not available

RedMax 522829301

BLADE, 21"X3"X.250"-1.5" LIFT

$37.99

$

In Stock, only 3 left!

0

RedMax 574481301

BLADE, 21" 3X.25X.75 LIFT

$39.99

$

Usually ships in 3-10 days

0

RedMax 522936601

BLADE, 21" GATOR, 1.25 LIFT

$34.99

$

In Stock, only 3 left!

0

RedMax 539109755

BLADE MULCH 21"

$

$

Not available

RedMax 574754201

KIT, BEARING ASSEMBLY

$113.99

$

In Stock, only 2 left!

0
