CZT 72 x (967943501-00) - RedMax 72" Zero-Turn Riding Mower (2018-07) PEDALS Parts Diagram

72" Zero-Turn Riding Mower

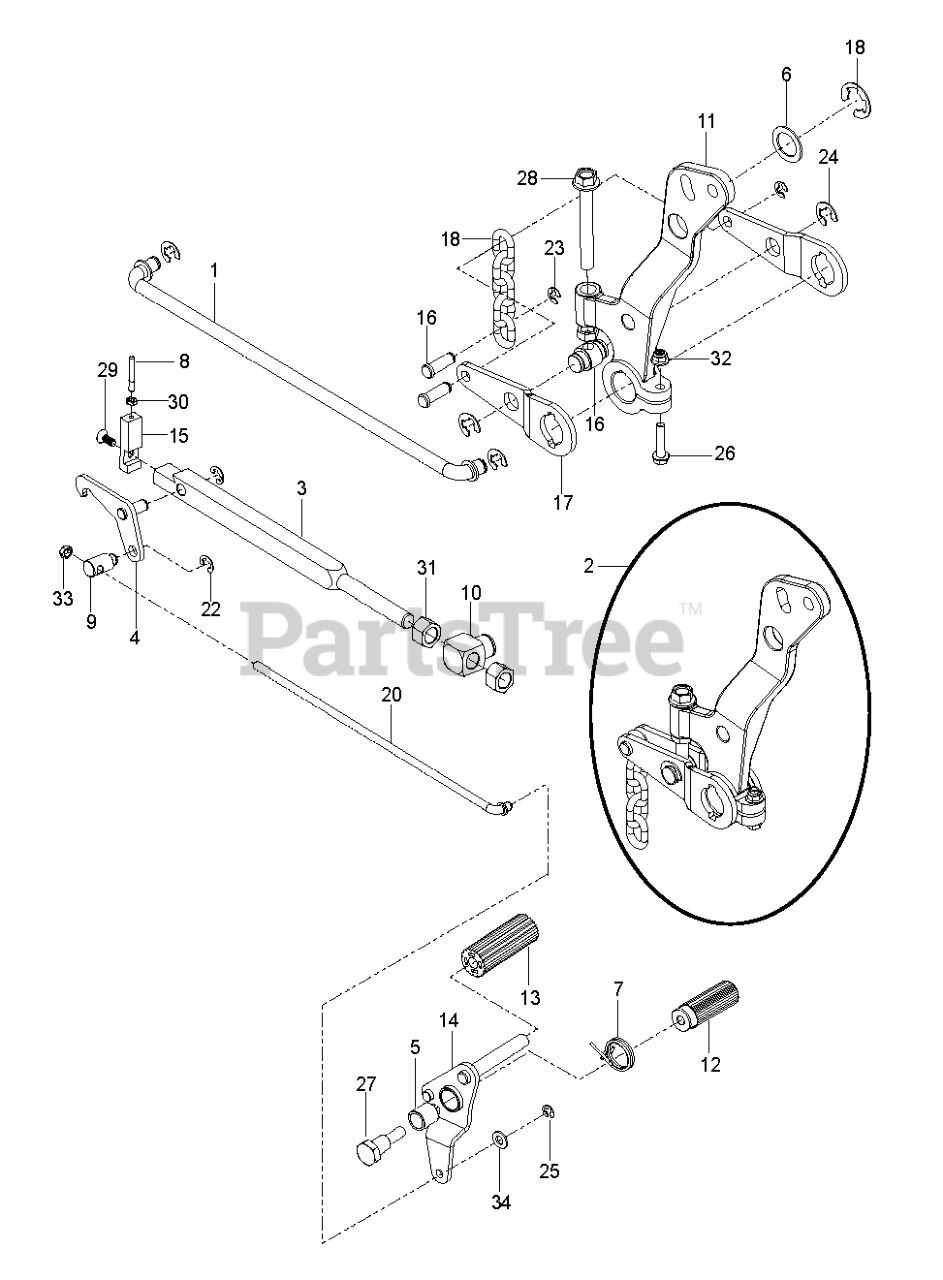

PEDALS Parts Diagram

  • Title

1

RedMax 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

2

RedMax 525465501

ASSEMBLY, DECK LIFT CRANK

$121.99

$

Usually ships in 3-10 days

0

3

RedMax 510406301

BAR, HEIGHT
(Superseded to 510406302)

$40.99

$

Usually ships in 3-10 days

0

4

RedMax 510407201

LATCH, HEIGHT WLDMT
(Superseded to 510407202)

$27.99

$

Usually ships in 3-10 days

0

5

RedMax 510089201

BUSHING, SLEEVE 3/4 X 1.0

$12.99

$

In Stock, only 4 left!

0

6

RedMax 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 510376701

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

8

RedMax 510406601

LINK, INDICATOR
(Superseded to 510406602)

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 510407501

SWIVEL, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

10

RedMax 510406401

SWIVEL, HEIGHT BAR

$18.99

$

Usually ships in 3-10 days

0

11

RedMax 510022502

ARM, LIFT LEVER
(Superseded to 525465502)

$182.99

$

Usually ships in 3-10 days

0

12

RedMax 510089501

PAD, FOOT PEDAL

$6.49

$

In Stock, Qty 17

0

13

RedMax 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

14

RedMax 510407801

PEDAL, RELEASE WLDMT

$182.99

$

Usually ships in 3-10 days

0

15

RedMax 510406501

CAP, HEIGHT BAR
(Superseded to 510406502)

$17.99

$

Usually ships in 3-10 days

0

16

RedMax 510023601

SHAFT, LIFT TRUNION WSL

$15.99

$

Usually ships in 3-10 days

0

17

RedMax 510410002

$9.49

$

Usually ships in 3-10 days

0

18

RedMax 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

19

RedMax 510090101

PIN, 7/16 CLEVIS
(Superseded to 596919401)

$3.99

$

In Stock, only 2 left!

0

20

RedMax 510407601

ROD, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 539912730

E-RING 1"
(Superseded to 539124788)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 539105069

E-RING 5/8

$3.99

$

In Stock, Qty 7

0

24

RedMax 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 539990870

E RING 3/8"

$6.49

$

Usually ships in 3-10 days

0

26

RedMax 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

27

RedMax 510408201

BOLT, SHOULDER
(Superseded to 510408202)

$24.99

$

Usually ships in 3-10 days

0

28

RedMax 525465701

HHFS 1/2-13 X 4 GR 5

$24.99

$

Usually ships in 3-10 days

0

29

RedMax 522705601

SCREW, 5/16-18 X 3/4 FLAT HEX

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

31

RedMax 539108677

NUT 3/4-10 HEX ZD
(Superseded to 596916901)

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

33

RedMax 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 819131316

WASHER

$4.99

$

In Stock, Qty 9

0
