CZT - Bad Boy Zero-Turn Mower (2010) 42" Deck Parts Diagram

Zero-Turn Mower

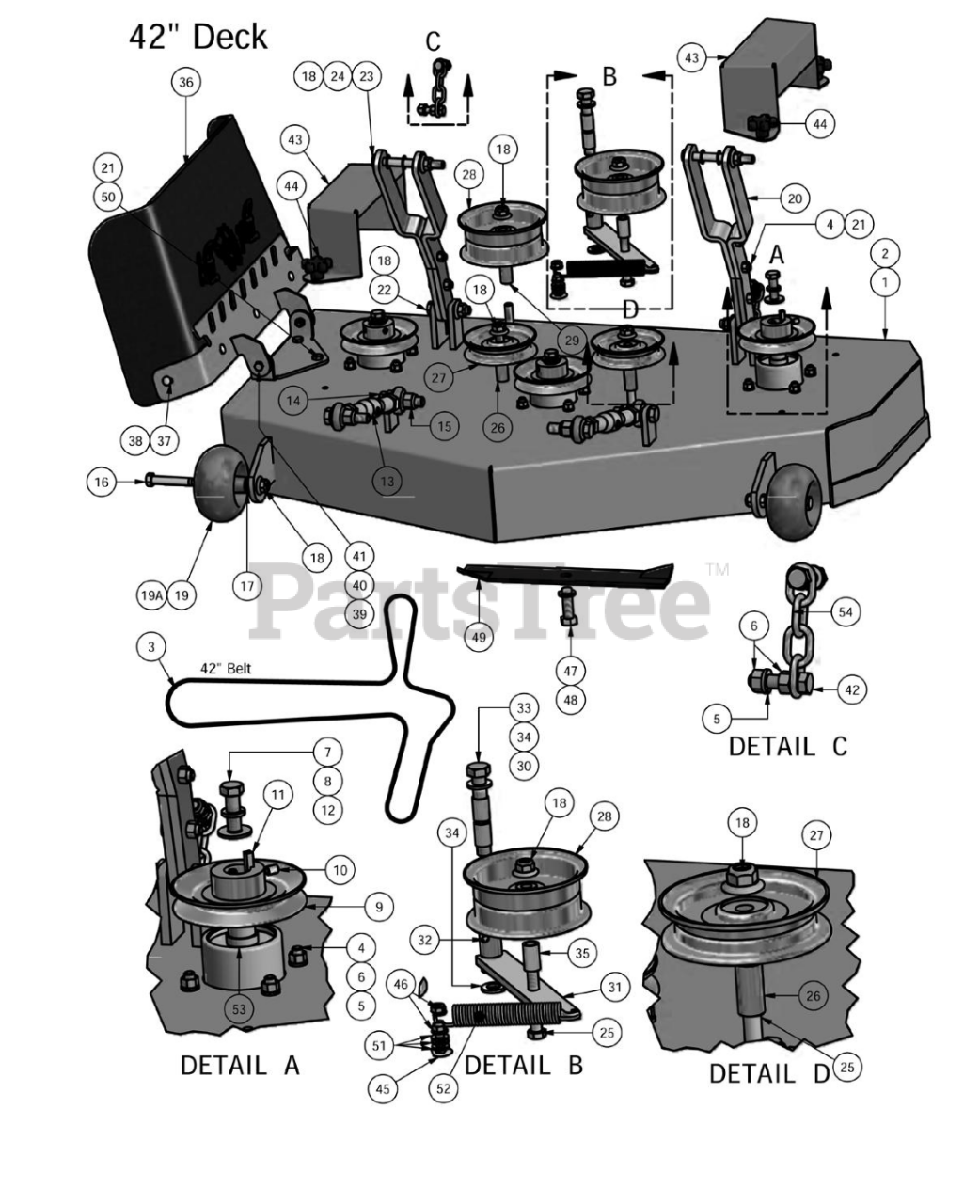

42" Deck Parts Diagram

  • Title

1

Bad Boy 060-4200-00

42 Commercial ZT Deck

$

$

Not available

2

Bad Boy 060-4200-98

42 Commercial ZT Deck-Complete with Spindles

$

$

Currently unavailable

3

Bad Boy 041-0120-00

42" Deck Belt-B120

$94.99

$

In Stock, Qty 10

0

4

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

5

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 018-5600-00

1/2" x 1 1/2" Hex Bolt

$

$

Currently unavailable

8

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 033-6003-00

5" Deck Pulley

$45.99

$

In Stock, only 2 left!

0

10

Bad Boy 030-6029-00

3/8" Set Screw

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

12

Bad Boy 019-6020-00

5/8" Belleville Washer #K2000-G-150

$5.49

$

In Stock, Qty 20+

0

13

Bad Boy 048-6056-00

Turnbuckle

$56.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

15

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

17

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

18

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 022-5234-00

Anti-Scalp Rollers

$

$

Not available

19A

Bad Boy 022-5234-98

Deck Wheel Complete Assembly

$20.99

$

Usually ships in 4-7 days

0

20

Bad Boy 021-6000-00

Deck Support Arm

$

$

Currently unavailable

21

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

23

Bad Boy 018-7050-00

1/2" x 4 1/2" Bolt

$2.99

$

In Stock, Qty 9

0

24

Bad Boy 019-5010-00

1/2" Brass Washer

$2.99

$

Usually ships in 4-7 days

0

25

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

26

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

27

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

28

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

29

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

30

Bad Boy 032-6033-00

5/8" ID x 1 1/8" Brass Bushing

$3.99

$

In Stock, only 2 left!

0

31

Bad Boy 039-6936-00

Deck Idler Arm

$42.99

$

Usually ships in 4-7 days

0

32

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

33

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

34

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

35

Bad Boy 025-5337-00

1.25" Pulley Spacer

$4.99

$

In Stock, only 2 left!

0

36

Bad Boy 210-6004-10

Rubber Side Discharge

$

$

Currently unavailable

37

Bad Boy 019-8040-00

1/4" x 34" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

38

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

39

Bad Boy 013-5041-00

3/8" Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

40

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

41

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

42

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

43

Bad Boy 014-4801-00

48" Spindle Cover

$45.99

$

Usually ships in 0 days

0

44

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

45

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

46

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

47

Bad Boy 018-6020-00

5/8" x 1 1/2" Hex Bolt

$2.99

$

In Stock, Qty 20+

0

48

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

49

Bad Boy 038-4221-00

42 inch High Lift Fusion Blade

$24.99

$

In Stock, Qty 20+

0

50

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

51

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

52

Bad Boy 034-2008-00

Deck Idler Spring

$18.99

$

Usually ships in 4-7 days

0

53

Bad Boy 037-6015-00

Spindle

$227.99

$

Usually ships in 4-7 days

0

54

Bad Boy 047-6050-00

Deck Hanger Assembly

$9.49

$

Usually ships in 4-7 days

0
