CZT - Bad Boy Zero-Turn Mower (2010) 60" ZT/CZT Deck Parts Diagram

Zero-Turn Mower

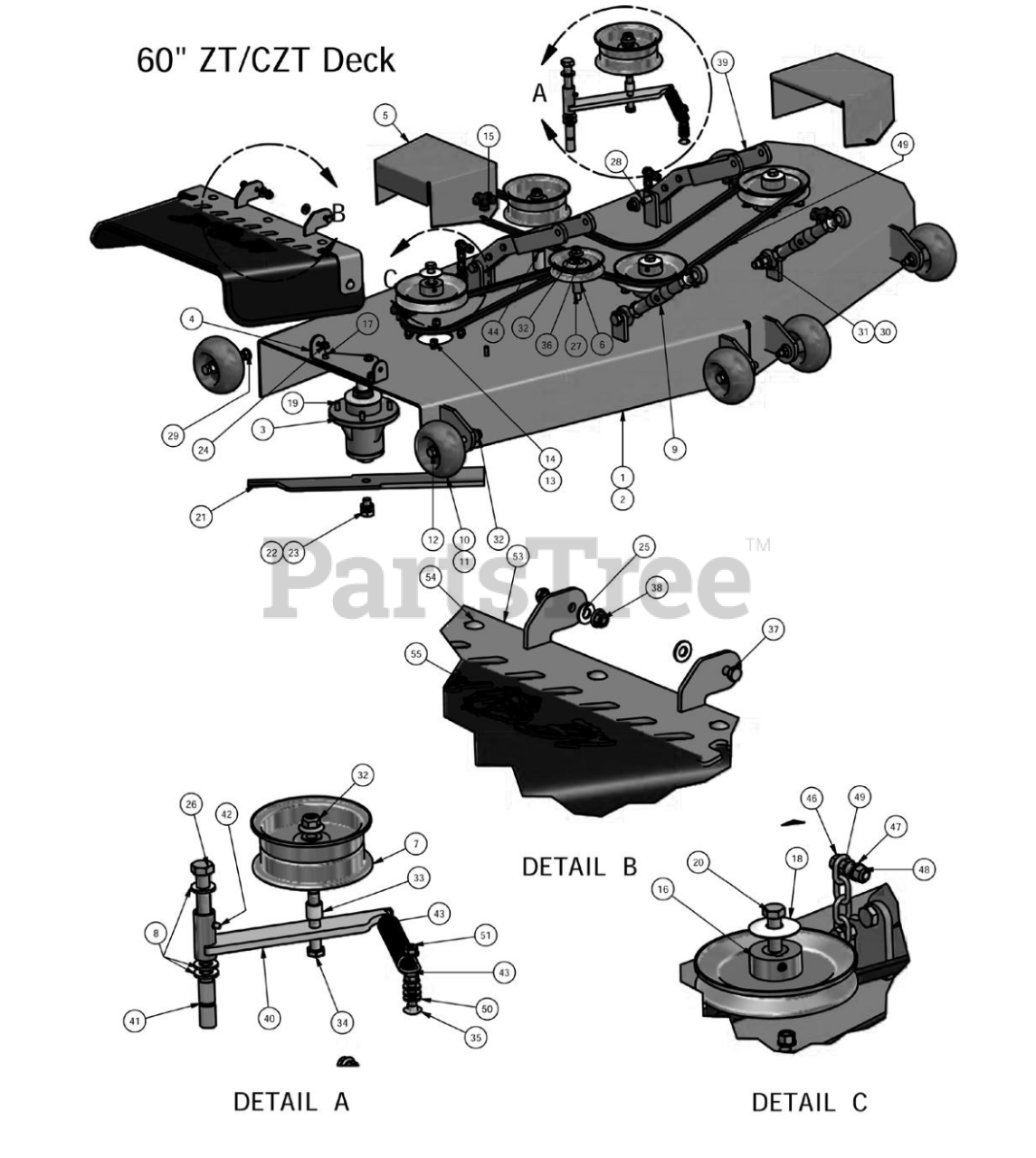

60" ZT/CZT Deck Parts Diagram

  • Title

1

Bad Boy 060-6005-00

60" ZT Deck

$

$

Not available

2

Bad Boy 060-6005-98

60" ZT Deck (Complete with Spindle)

$2051.99

$

Usually ships in 4-7 days

0

3

Bad Boy 037-6015-00

Short Spindle

$227.99

$

Usually ships in 4-7 days

0

4

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

5

Bad Boy 014-6010-00

Plastic Pulley Cover

$

$

Not available

6

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

7

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 048-6056-00

Turnbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

10

Bad Boy 022-5234-00

Anti-Scalp Rollers

$

$

Not available

11

Bad Boy 022-5234-98

Deck Wheel Assembly

$20.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

13

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

16

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 15

0

17

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-6019-00

Cup Washer

$9.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

20

Bad Boy 018-5600-00

1/2" x 1 1/2" Hex Bolt

$

$

Currently unavailable

21

Bad Boy 038-6060-00

60 Inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-6020-00

5/8" x 1 1/2" Heavy Hex Bolt

$2.99

$

In Stock, Qty 20+

0

24

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

26

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

27

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

28

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

29

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

30

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

31

Bad Boy 013-7021-00

5/8" Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

32

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

33

Bad Boy 025-5203-00

3/4" OD x 1/2" ID x 3\4" Length

$3.49

$

In Stock, Qty 7

0

34

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

35

Bad Boy 018-5050-00

3/8" x 2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

36

Bad Boy 018-2018-00

1/2" x 3 1/2" Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

37

Bad Boy 018-5015-00

5/16" x 1" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

38

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

39

Bad Boy 031-6000-00

Deck Arm Assembly

$

$

Not available

40

Bad Boy 039-6936-00

Deck Idler Bracket

$42.99

$

Usually ships in 4-7 days

0

41

Bad Boy 032-6033-00

5/8" ID x 1 1/8" Brass Bushing

$3.99

$

In Stock, only 2 left!

0

42

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

43

Bad Boy 034-2008-00

Deck Idler Spring

$18.99

$

Usually ships in 4-7 days

0

44

Bad Boy 025-5341-00

1.75" x .5" O.D. Spacer

$

$

Currently unavailable

45

Bad Boy 047-6050-00

ZT Deck Hanger Chain Assembly

$9.49

$

Usually ships in 4-7 days

0

46

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

47

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

48

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

49

Bad Boy 041-1650-00

60" ZT Deck Belt

$96.99

$

In Stock, Qty 20+

0

50

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

51

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

52

Bad Boy 039-4863-00

60" Lower Hanger

$34.99

$

Usually ships in 4-7 days

0

53

Bad Boy 039-4864-10

60" Discharge Chute Upper Hanger Plate

$

$

Currently unavailable

54

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

55

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0
