CZT - Bad Boy Zero-Turn Mower (2010) Seat & Tanks Parts Diagram

Zero-Turn Mower

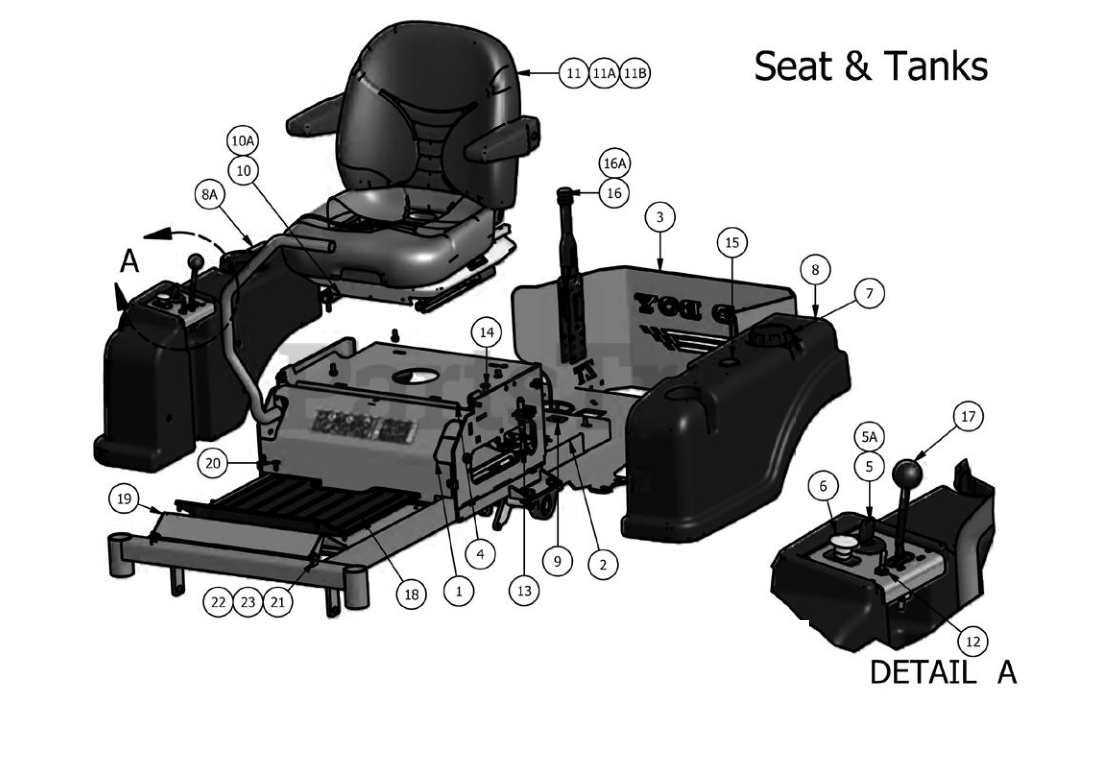

Seat & Tanks Parts Diagram

  • Title

1

Bad Boy 014-3410-00

Cooler Cover

$98.99

$

Usually ships in 0 days

0

2

Bad Boy 026-0052-00

Fan Cover

$89.99

$

Usually ships in 0 days

0

3

Bad Boy 026-0053-00

ZT Rear Plate

$226.99

$

Usually ships in 0 days

0

4

Bad Boy 026-1010-00

ZT Seat Plate

$105.99

$

Usually ships in 0 days

0

5

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

5A

Bad Boy 077-8076-00

Ignition

$22.99

$

In Stock, Qty 20+

0

6

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

7

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

8

Bad Boy 067-7001-00

Left Tank for all CZT and 60" ZT

$

$

Not available

8A

Bad Boy 067-7000-00

Right Tank for all CZT and 60" ZT

$

$

Not available

9

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

10

Bad Boy 071-8061-00

Seat Safety Switch

$20.99

$

In Stock, only 2 left!

0

10A

Bad Boy 036-5300-00

Seat Safety Switch Pigtail

$16.99

$

Usually ships in 4-7 days

0

11

Bad Boy 071-2010-00

Seat Assembly for all CZT and 60" ZT

$

$

Currently unavailable

11A

Bad Boy 071-8090-00

Seat Assembly for 50" 26HP ZT

$

$

Not available

11B

Bad Boy 071-3000-00

Suspension Seat (Upgrade, and Shown)

$

$

Not available

12

Bad Boy 078-8077-00

Deck Lift

$45.99

$

Usually ships in 4-7 days

0

13

Bad Boy 064-8055-00

Brake Cable

$54.99

$

In Stock, only 2 left!

0

14

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

15

Bad Boy 067-4025-00

Fuel Gauge

$58.99

$

Usually ships in 4-7 days

0

16

Bad Boy 069-8054-00

Hand Brake

$136.99

$

Usually ships in 4-7 days

0

16A

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

17

Bad Boy 055-8020-00

Throttle

$41.99

$

In Stock, Qty 17

0

18

Bad Boy 081-2010-00

Zt Floorboard Mat

$30.99

$

Usually ships in 4-7 days

0

19

Bad Boy 079-3410-00

ZT Floor Panel

$113.99

$

Usually ships in 0 days

0

20

Bad Boy 040-6080-00

Ratchet Fastener-Floorboard

$3.49

$

In Stock, only 3 left!

0

21

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0
