CZT - Bad Boy Zero-Turn Mower (2011) 50" Deck Parts Diagram

Zero-Turn Mower

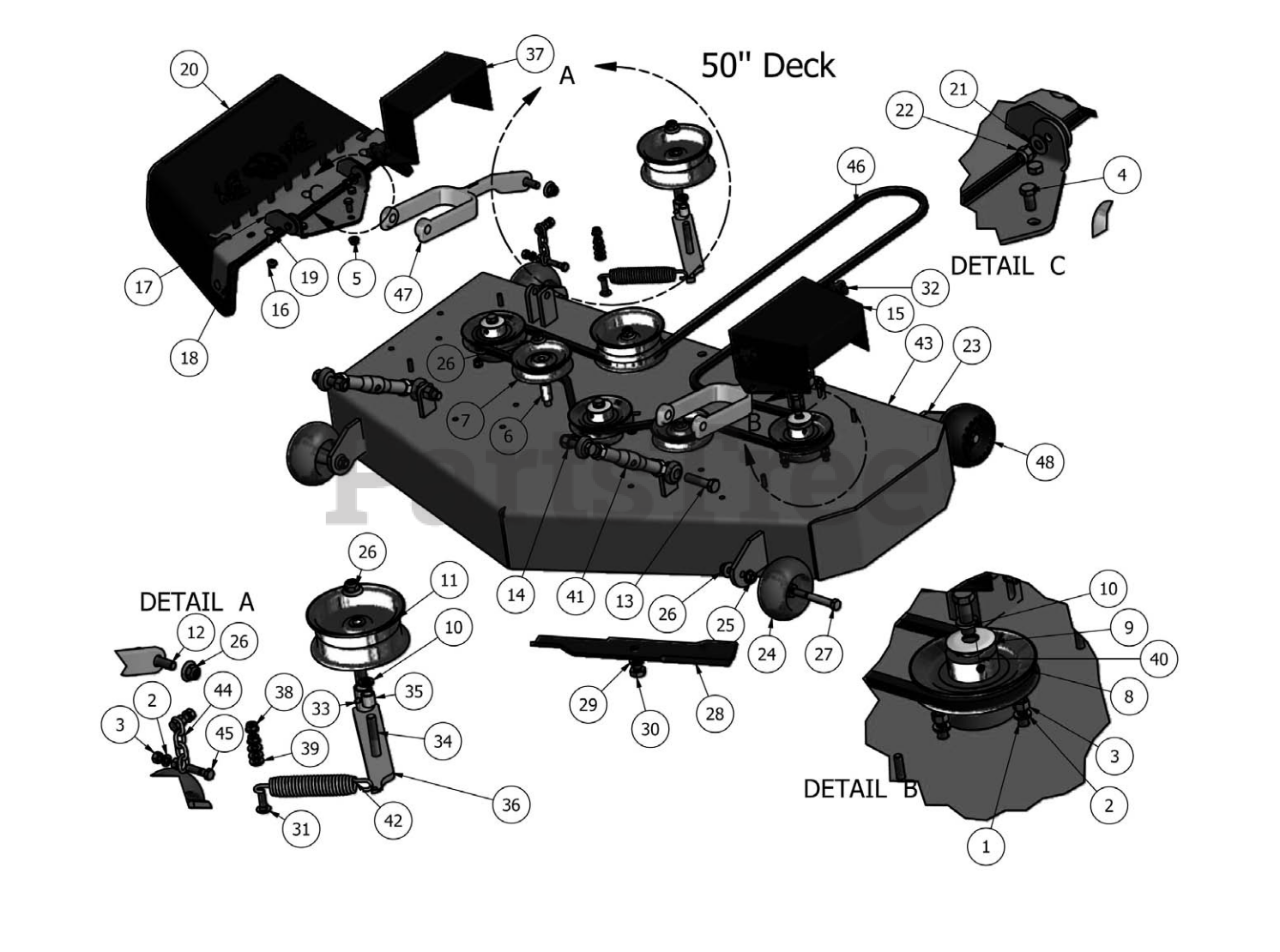

50" Deck Parts Diagram

  • Title

1

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

2

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 025-5338-00

Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

7

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

8

Bad Boy 033-6003-00

5" Deck Pulley

$45.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-6019-00

Cup Washer

$9.99

$

Usually ships in 4-7 days

0

10

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

15

Bad Boy 014-6004-00

Metal Pulley Cover

$45.99

$

Usually ships in 4-7 days

0

16

Bad Boy 013-8049-00

5/16" Flange Nut

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 039-4864-00

Discharge Chute Upper Hanger Plate

$45.99

$

Usually ships in 4-7 days

0

18

Bad Boy 210-5218-00

Rubber Discharge Chute (Assembly)

$

$

Not available

19

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

20

Bad Boy 210-6005-00

Rubber Discharge Chute (Rubber Only)

$63.99

$

In Stock, only 2 left!

0

21

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

22

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 060-4800-98

50" Complete Deck

$1937.99

$

Usually ships in 4-7 days

0

24

Bad Boy 022-5234-00

Anti-Scalp Rollers (Roller Only)

$

$

Not available

25

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

26

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

27

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

28

Bad Boy 038-5350-00

50" ZT High Lift Fusion Blade

$24.99

$

In Stock, Qty 20+

0

29

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

31

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 1 left!

0

32

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

33

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

35

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

36

Bad Boy 039-6936-00

Deck Idler Arm

$42.99

$

Usually ships in 4-7 days

0

37

Bad Boy 014-4801-00

50"Spindle Cover Right Side

$45.99

$

Usually ships in 0 days

0

38

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

39

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

40

Bad Boy 018-6019-00

1/2"-20 × 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

41

Bad Boy 048-6056-00

Turnbuckle

$56.99

$

Usually ships in 4-7 days

0

42

Bad Boy 034-9035-00

Deck Idler Spring

$18.99

$

Usually ships in 4-7 days

0

43

Bad Boy 060-4800-00

50" Deck (Shell Only)

$

$

Not available

44

Bad Boy 047-6050-00

ZT Deck Hanger Assembly

$9.49

$

Usually ships in 4-7 days

0

45

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

46

Bad Boy 041-1470-00

50" ZT Deck Belt

$93.99

$

In Stock, only 4 left!

0

47

Bad Boy 031-6000-00

Deck Arm

$

$

Not available

48

Bad Boy 022-5234-98

Anti-Scalp Roller (Assembly)

$20.99

$

Usually ships in 4-7 days

0
