CZT - Bad Boy Zero-Turn Mower (2011) Floor Panel Parts Diagram

Zero-Turn Mower

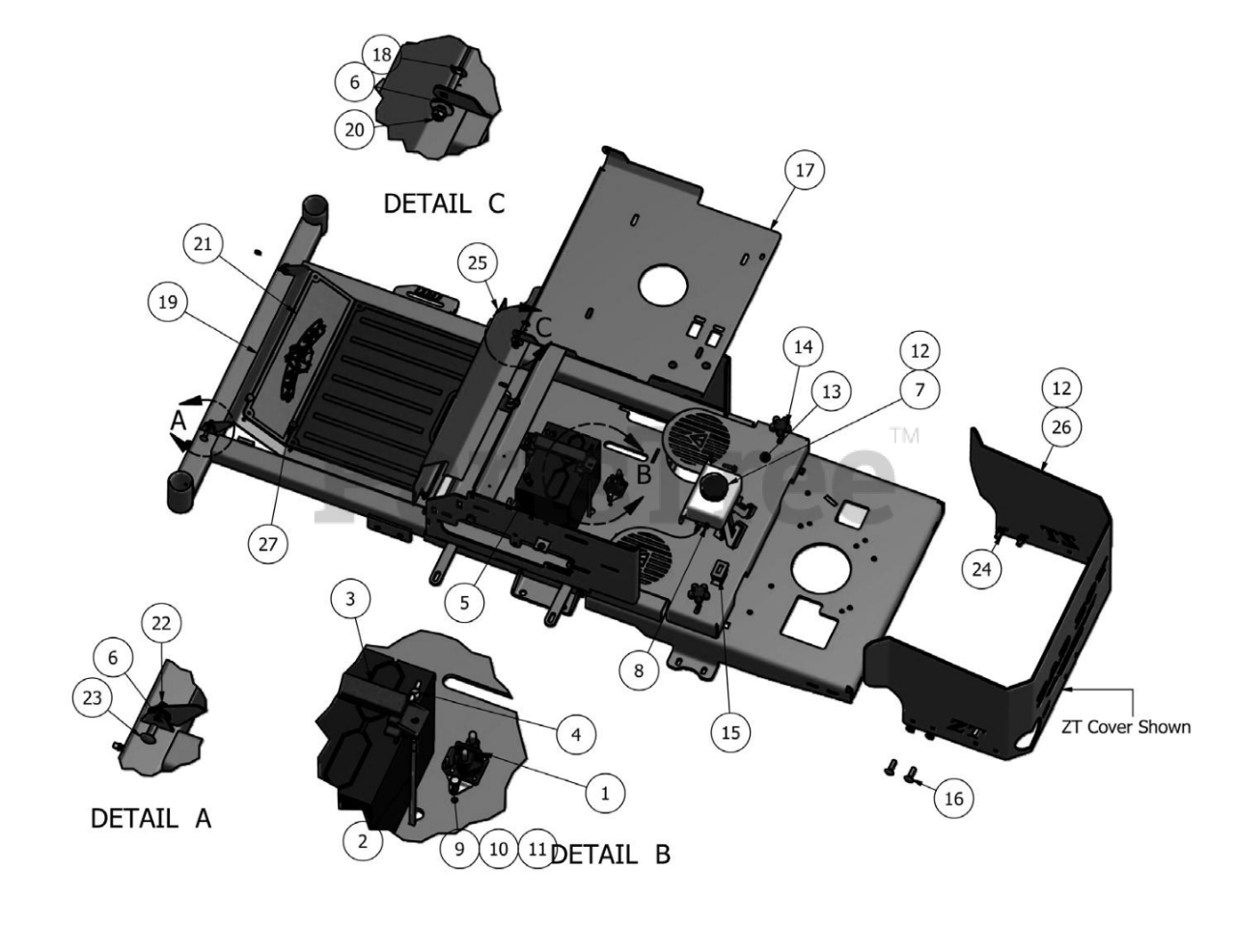

Floor Panel Parts Diagram

  • Title

1

Bad Boy 108-5349-00

Solenoid

$31.99

$

Usually ships in 4-7 days

0

2

Bad Boy 018-8050-00

7" Stove Bolt

$1.99

$

In Stock, Qty 8

0

3

Bad Boy 043-8929-00

Battery Holder

$18.99

$

In Stock, only 1 left!

0

4

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 068-8049-00

Battery (Workaholic)

$

$

Not available

6

Bad Boy 019-2000-00

7/16" X 2" Washer

$

$

Currently unavailable

7

Bad Boy 067-8080-00

Hydraulic Tank& Cap

$59.99

$

Usually ships in 4-7 days

0

8

Bad Boy 066-5050-00

Hydro Tank Cap

$16.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-8052-00

1/4-20 x 3/4 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 013-8039-00

1/4" Hex Nut

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 026-0054-00

Rear Cover 23hp

$170.99

$

Usually ships in 0 days

0

13

Bad Boy 026-0052-00

Fan Cover

$89.99

$

Usually ships in 0 days

0

14

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

15

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

16

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

17

Bad Boy 026-1010-00

Seat Plate

$105.99

$

Usually ships in 0 days

0

18

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

19

Bad Boy 079-3410-00

Floor Panel

$113.99

$

Usually ships in 0 days

0

20

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 081-2010-00

Floorboard Mat

$30.99

$

Usually ships in 4-7 days

0

22

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 018-8062-00

Round Head Short Square Neck Bolt

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 014-3410-00

Cooler Cover

$98.99

$

Usually ships in 0 days

0

26

Bad Boy 026-0053-00

Rear plate 26hp

$226.99

$

Usually ships in 0 days

0

27

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0
