CZT - Bad Boy Zero-Turn Mower (2011) Seat Frame & Tanks Parts Diagram

Zero-Turn Mower

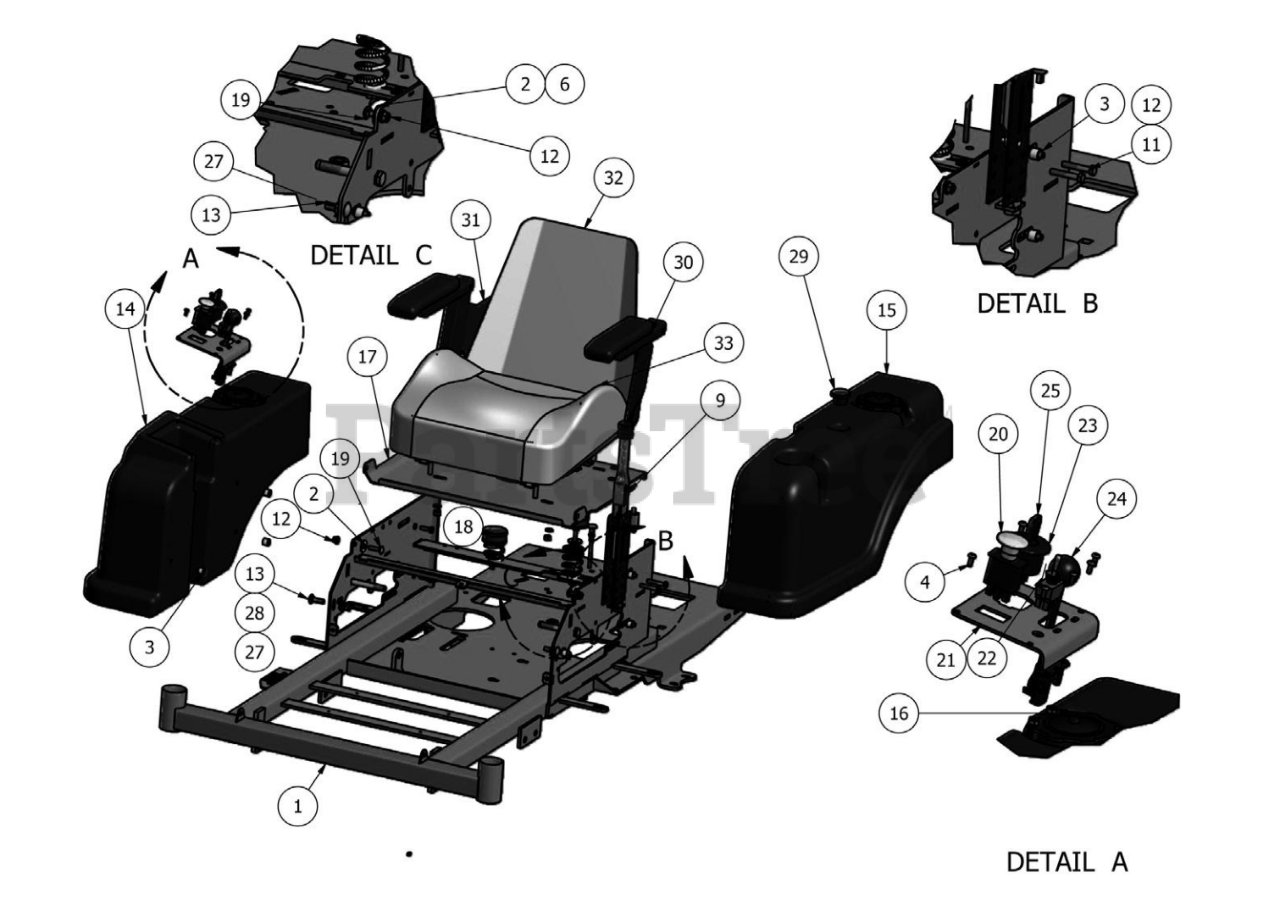

Seat Frame & Tanks Parts Diagram

  • Title

1

Bad Boy 070-5400-00

Frame

$

$

Not available

2

Bad Boy 019-6042-00

.360 x .983 x .120 Nylon Washer

$0.99

$

In Stock, only 1 left!

0

3

Bad Boy 025-2000-00

.360 x .735 x .585

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-2010-00

10-24 x 5/8 Button Socket

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 019-5029-00

3/8 Washer

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 069-8054-00

Brake Handle Kit

$136.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-8049-00

5/16" Flange Nut

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

14

Bad Boy 067-7000-00

Fuel Tank - Right

$

$

Not available

15

Bad Boy 067-7001-00

Fuel Tank Left -

$

$

Not available

16

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

17

Bad Boy 026-1010-00

Seat Plate

$105.99

$

Usually ships in 0 days

0

18

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, only 1 left!

0

19

Bad Boy 018-8065-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

21

Bad Boy 079-3400-00

Control Panel

$33.99

$

Usually ships in 0 days

0

22

Bad Boy 078-8077-00

Joystick - Deck Lift

$45.99

$

Usually ships in 4-7 days

0

23

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

24

Bad Boy 055-8020-00

Throttle

$41.99

$

In Stock, Qty 17

0

25

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

27

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

28

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

29

Bad Boy 067-4025-00

Fuel Gauge and Grommet

$58.99

$

Usually ships in 4-7 days

0

30

Bad Boy 071-2017-00

Arm Rest Cushion

$52.99

$

Usually ships in 4-7 days

0

31

Bad Boy 071-2010-00

Seat

$

$

Currently unavailable

32

Bad Boy 071-2015-00

Backrest Cushion

$

$

Currently unavailable

33

Bad Boy 071-2016-00

Seat Cushion

$

$

Currently unavailable
