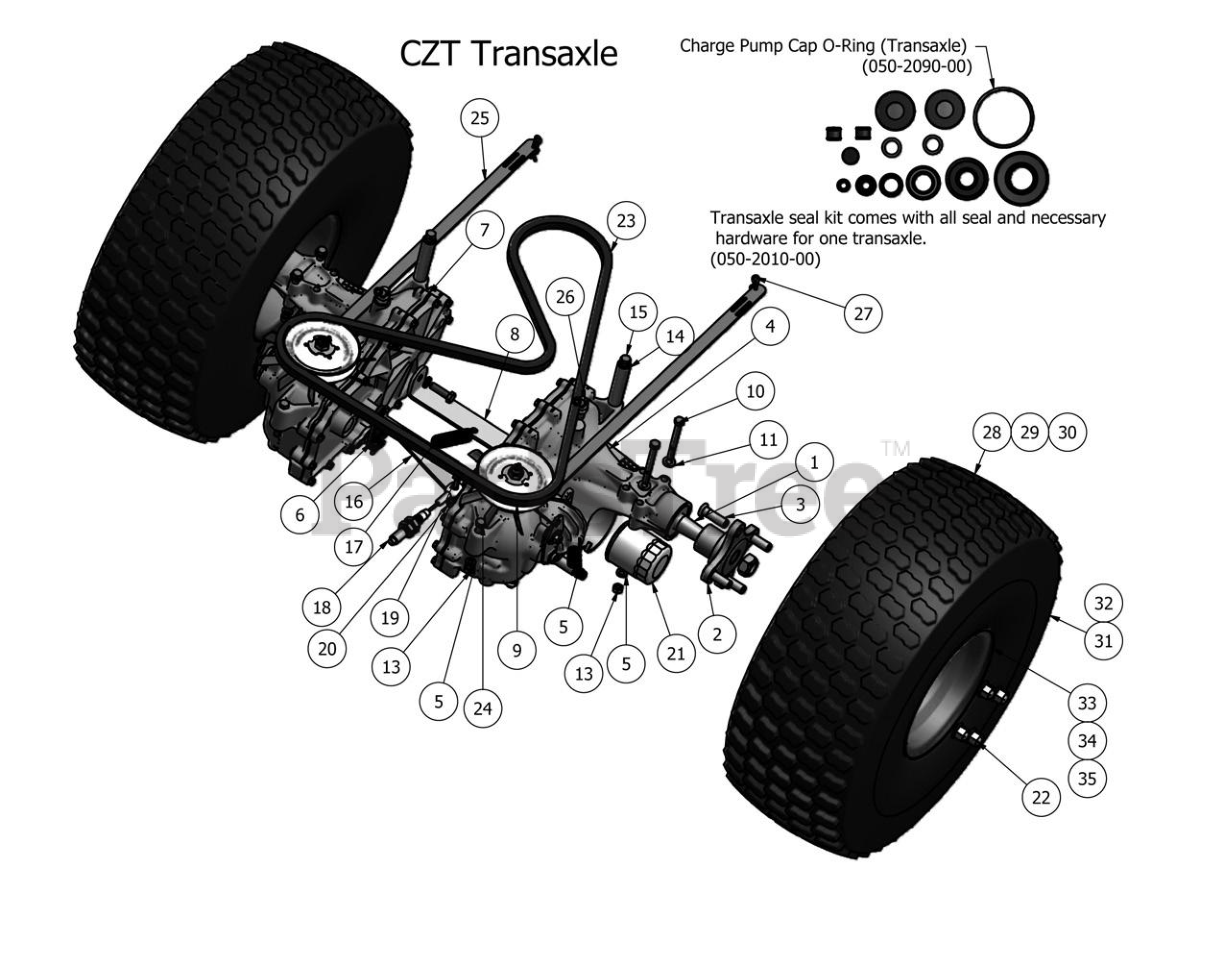

CZT - Bad Boy Zero-Turn Mower (2011) Transaxle Parts Diagram

Zero-Turn Mower

Transaxle Parts Diagram

  • Title

1

Bad Boy 050-2077-00

Axle Shaft

$127.99

$

Usually ships in 4-7 days

0

2

Bad Boy 050-2076-00

Hub

$148.99

$

Usually ships in 4-7 days

0

3

Bad Boy 050-2012-00

Studs

$5.99

$

In Stock, Qty 5

0

4

Bad Boy 050-6000-00

Left CZT Transaxle

$

$

Not available

5

Bad Boy 034-9080-00

Transaxle Spring

$15.99

$

In Stock, Qty 6

0

6

Bad Boy 092-8000-00

Transaxle Brake Lever

$22.99

$

Usually ships in 4-7 days

0

7

Bad Boy 050-6001-00

Right CZT Transaxle

$

$

Not available

8

Bad Boy 028-4801-00

Crossover Bar for CZT

$29.99

$

Usually ships in 4-7 days

0

9

Bad Boy 050-2075-00

Fan/Pulley Kit For CZT

$131.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 025-5340-00

3 1/4" Spacer

$9.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-5355-00

5/16" x 6" Bolt

$2.99

$

In Stock, only 3 left!

0

16

Bad Boy 039-0053-00

CZT Crossover Brake

$15.99

$

Usually ships in 4-7 days

0

17

Bad Boy 034-9000-00

Spring

$16.99

$

In Stock, Qty 5

0

18

Bad Boy 064-8055-00

Brake Cable Short

$54.99

$

In Stock, only 2 left!

0

19

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 063-1050-00

Filter

$24.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-5300-00

1/2"Acorn Nut

$0.99

$

In Stock, Qty 6

0

23

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

24

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 031-0052-00

Transaxle Neutral Lever

$12.99

$

Usually ships in 4-7 days

0

26

Bad Boy 024-1200-00

45 Deg Fitting

$21.99

$

Usually ships in 4-7 days

0

27

Bad Boy 040-6060-00

Hear Pin Cotter Clip

$3.49

$

Usually ships in 4-7 days

0

28

Bad Boy 022-5460-00

23 x 10.50-12 Tire & Wheel

$249.99

$

Usually ships in 4-7 days

0

29

Bad Boy 022-5352-00

23 x 10.50-12 Tire & Wheel (50" Only)

$296.99

$

Usually ships in 4-7 days

0

30

Bad Boy 022-3000-00

23 x 8.50-12 Tire & Wheel (42" Only)

$

$

Not available

31

Bad Boy 022-5351-00

23 x 10.50-12 Tire

$174.99

$

Usually ships in 4-7 days

0

32

Bad Boy 022-3025-00

23 x 8.50-12 Tire

$235.99

$

Usually ships in 4-7 days

0

33

Bad Boy 022-7061-00

23 x 10.50-12 Wheel (60"Only)

$196.99

$

Usually ships in 4-7 days

0

34

Bad Boy 022-7062-00

23 x 10.5-12 Wheel (50" Only)

$155.99

$

Usually ships in 4-7 days

0

35

Bad Boy 022-3026-00

23 x 8.50-12 Wheel (42" Only)

$

$

Currently unavailable
