CZT - Bad Boy Zero-Turn Mower (2012) CZT 60" Deck Parts Diagram

Zero-Turn Mower

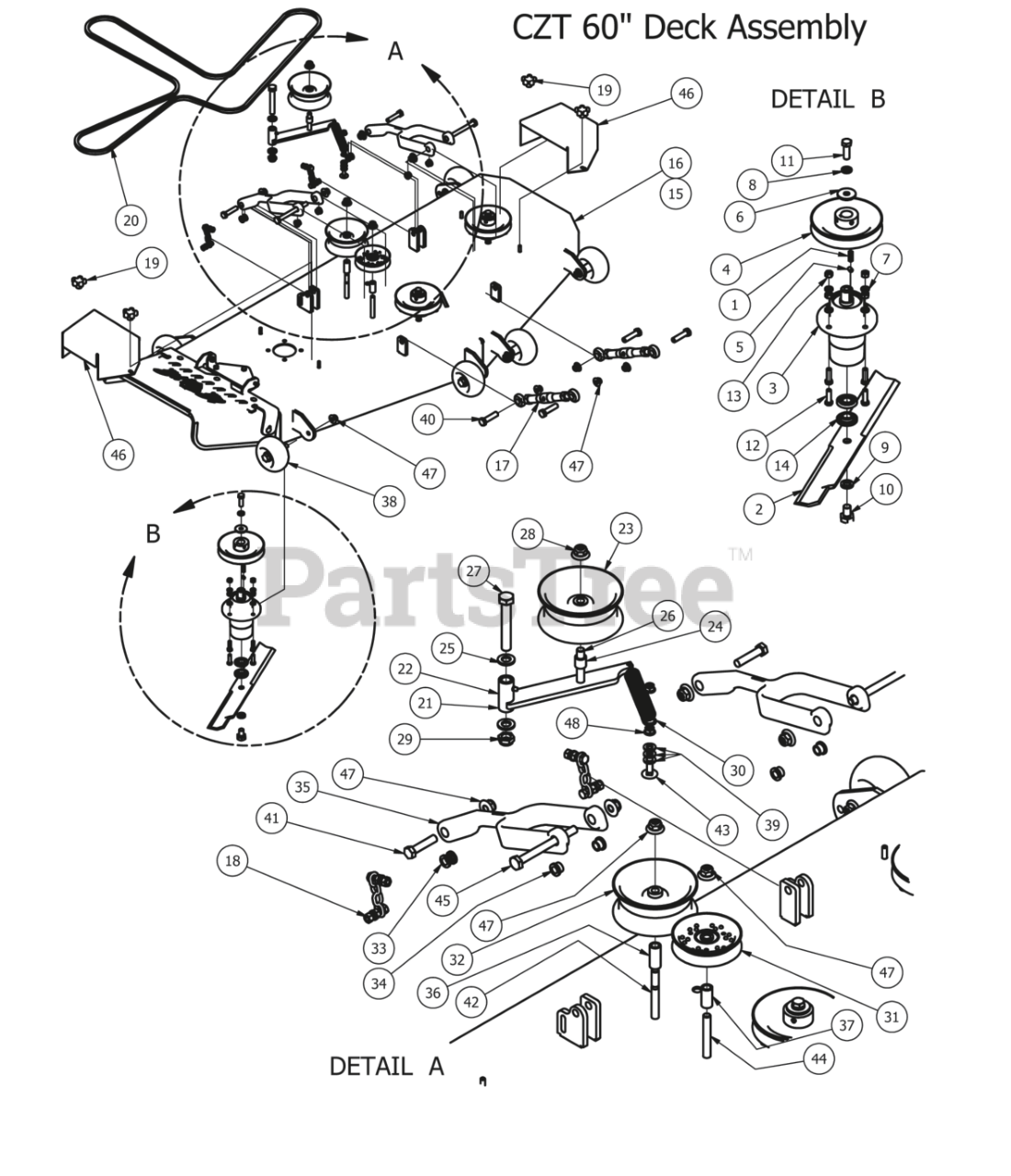

CZT 60" Deck Parts Diagram

  • Title

1

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

2

Bad Boy 038-6060-00

60 Inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

3

Bad Boy 037-6015-50

Spindle-Aluminum - 2012

$227.99

$

In Stock, Qty 20+

0

4

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 15

0

5

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

7

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$2.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

12

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

13

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 037-6023-00

Spindle Bearing

$

$

Not available

15

Bad Boy 060-6005-98

60" ZT Deck Complete Assembly

$2051.99

$

Usually ships in 4-7 days

0

16

Bad Boy 060-6005-00

60" ZT Deck

$

$

Not available

17

Bad Boy 048-6056-00

Turnbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

18

Bad Boy 047-6050-00

Chain assembly

$9.49

$

Usually ships in 4-7 days

0

19

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

20

Bad Boy 041-1650-00

60" ZT Deck Belt

$96.99

$

In Stock, Qty 20+

0

21

Bad Boy 039-6936-98

Deck Idler Assembly components 22,23,24,26,28

$92.99

$

Usually ships in 4-7 days

0

22

Bad Boy 039-6936-00

Deck Idler Bracket

$42.99

$

Usually ships in 4-7 days

0

23

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

24

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

25

Bad Boy 019-6017-00

.635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

27

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

28

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

29

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 034-2008-00

Deck Idler Spring 60" Deck only

$18.99

$

Usually ships in 4-7 days

0

31

Bad Boy 033-6001-00

4-3/4 Idler Pulley

$33.99

$

In Stock, Qty 20+

0

32

Bad Boy 033-5001-00

5 3/4" Deck Idler Pulley

$67.99

$

Usually ships in 4-7 days

0

33

Bad Boy 032-5057-00

Flange for Lower Deck Arm

$15.99

$

In Stock, only 3 left!

0

34

Bad Boy 032-5056-00

Flange Bushing For Deck Arm upper

$6.49

$

In Stock, only 3 left!

0

35

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

36

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

37

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

38

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

39

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

40

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

41

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

42

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

43

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

44

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

45

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

46

Bad Boy 014-6010-00

Pulley Cover

$

$

Not available

47

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

48

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0
