CZT - Bad Boy Zero-Turn Mower (2012) CZT Transaxle Assembly Parts Diagram

Zero-Turn Mower

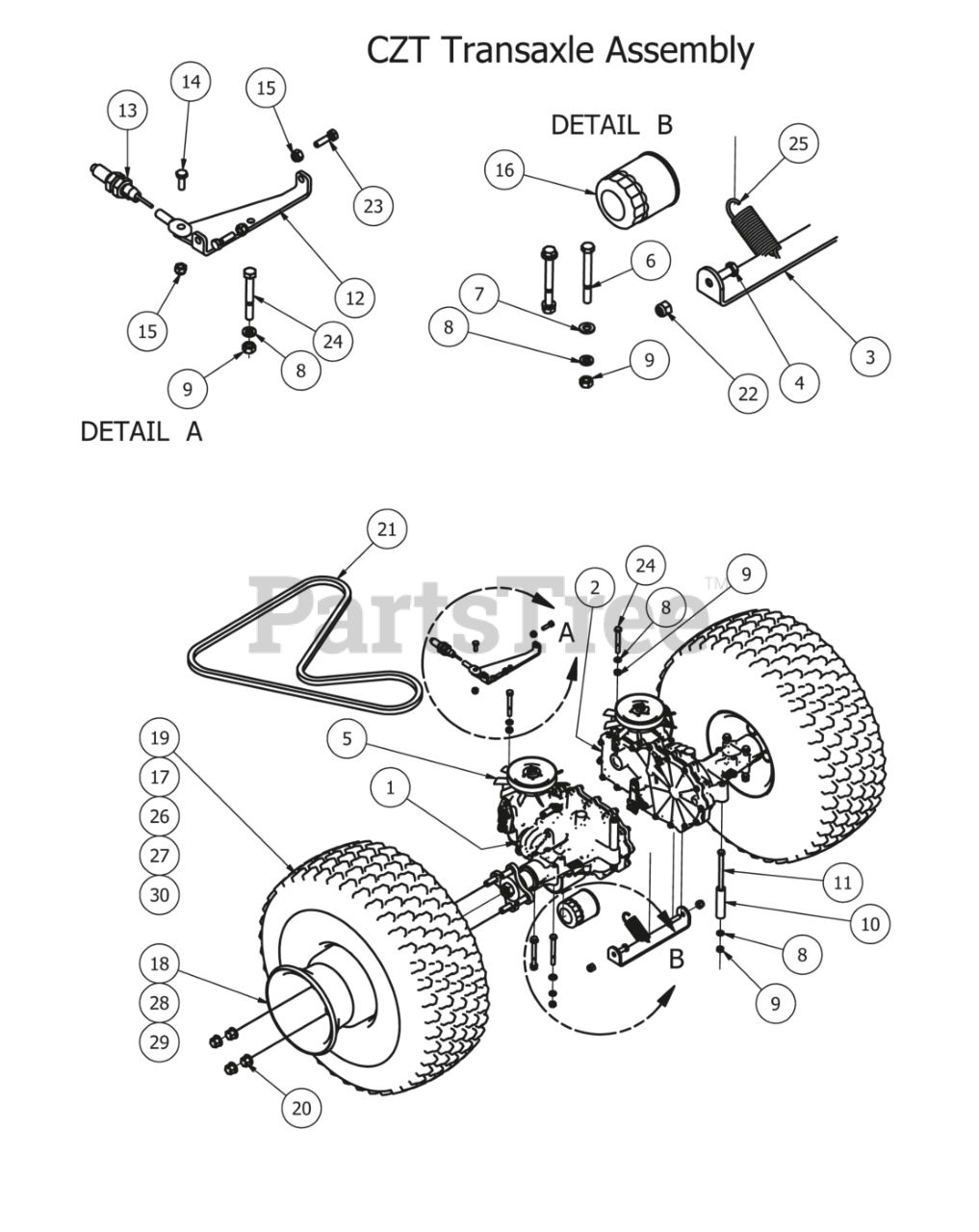

CZT Transaxle Assembly Parts Diagram

  • Title

1

Bad Boy 050-6000-00

3400 IZT for CZT -Left

$

$

Not available

2

Bad Boy 050-6001-00

3400 IZT for CZT - Right

$

$

Not available

3

Bad Boy 028-4801-00

Crossover Bar for ZT

$29.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-3000-00

3/8" x2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

5

Bad Boy 050-2072-00

Fan/Pulley kit For CZT

$96.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-4701-00

5/16" x 3" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 025-5340-00

3 1/4" Spacer

$9.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5355-00

5/16" x 6" Bolt

$2.99

$

In Stock, only 3 left!

0

12

Bad Boy 039-0053-00

ZT Crossover Brake Bracket

$15.99

$

Usually ships in 4-7 days

0

13

Bad Boy 064-8055-00

Short Brake Cable

$54.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 063-1050-00

Transaxle Hydro Filter

$24.99

$

In Stock, Qty 20+

0

17

Bad Boy 022-5460-00

Tire 23 X 10.50 -12 Assembly W/Negative Offset Wheel (60" Only Deck)

$249.99

$

Usually ships in 4-7 days

0

18

Bad Boy 022-7061-00

( Wheel Only 60" Deck) 12 Orange Wheel

$196.99

$

Usually ships in 4-7 days

0

19

Bad Boy 022-5351-00

23 x 10.50 Tire only (50" & 60" Decks)

$174.99

$

Usually ships in 4-7 days

0

20

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

21

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-4007-00

Hex Bolt - UNC (Regular Thread - Inch)

$1.49

$

Usually ships in 4-7 days

0

24

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 034-9000-00

ZT spring

$16.99

$

In Stock, Qty 5

0

26

Bad Boy 022-5352-00

23x 10.5-12 Tire & Wheel Assembly (50" Only) Deck

$296.99

$

Usually ships in 4-7 days

0

27

Bad Boy 022-3000-00

23 x 8.50 - 12 Tire & Wheel Assembly (42" Only) Deck

$

$

Not available

28

Bad Boy 022-7062-00

(Wheel Only 50" Deck) 12 Orange Wheel - 48" and Pup Models

$155.99

$

Usually ships in 4-7 days

0

29

Bad Boy 022-3026-00

(Wheel Only 42" Deck) Wheel 23x8.50

$

$

Currently unavailable

30

Bad Boy 022-3025-00

23 x 8.50-12 Tire Only (42" Deck)

$235.99

$

Usually ships in 4-7 days

0
