CZT - Bad Boy Zero-Turn Mower (2012) Front Fork Assembly Parts Diagram
Zero-Turn Mower

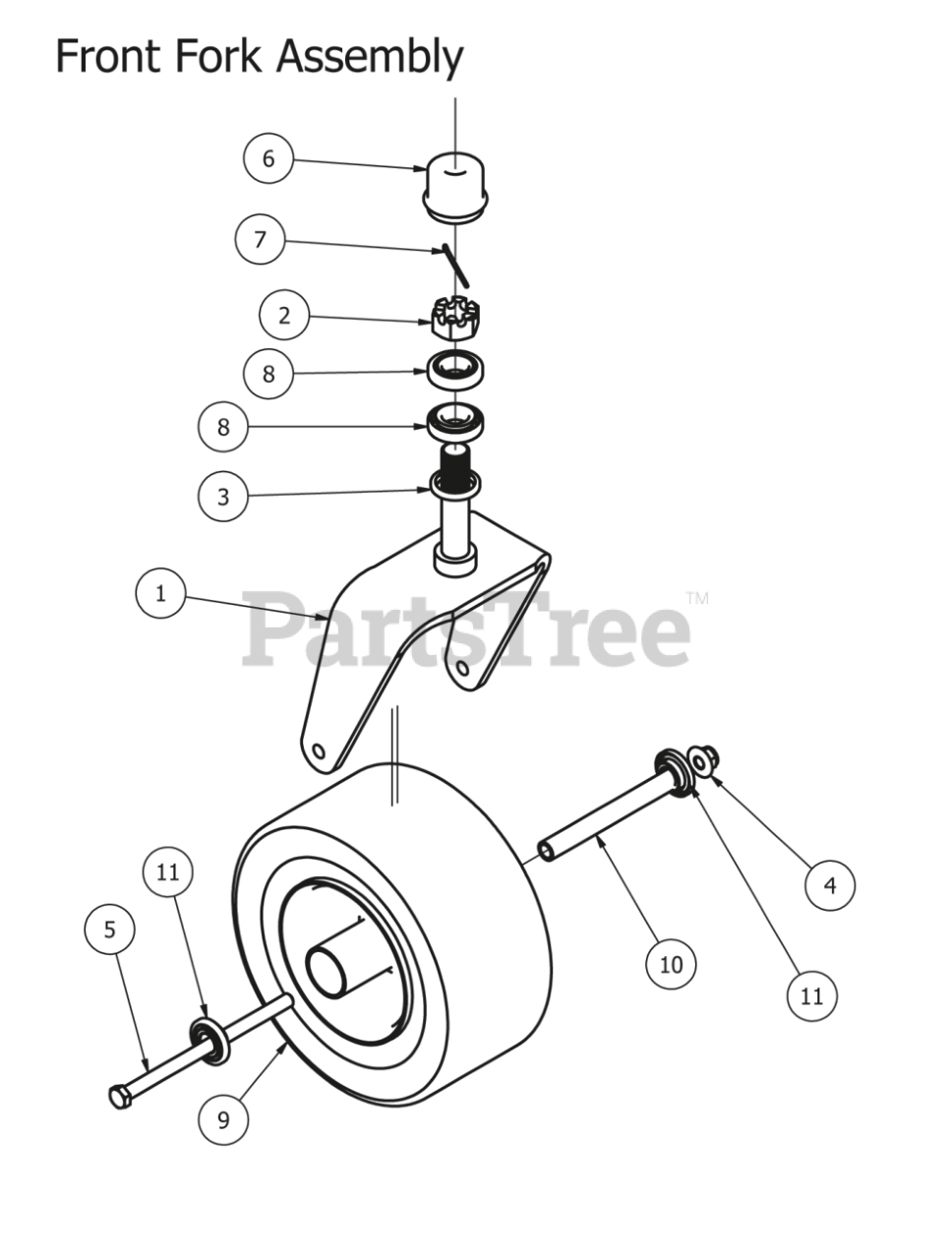

Front Fork Assembly Parts Diagram
Bad Boy 023-7913-00
Front Fork
$148.99
$
In Stock, only 3 left!
Bad Boy 013-7004-00
1" Fine Threaded Castle Nut
$8.99
$
Usually ships in 4-7 days
Bad Boy 012-7003-00
Seal
$10.99
$
In Stock, Qty 6
Bad Boy 013-8050-00
1/2-13 Nylon Flange Nut-Orange
$1.99
$
In Stock, Qty 20+
Bad Boy 018-7010-00
1/2" x 9" Bolt
$6.49
$
In Stock, only 2 left!
Bad Boy 014-7005-00
Dust Cover
$9.99
$
In Stock, Qty 18
Bad Boy 020-7022-00
1/8x2-1/4 cotter pin Zinc
$0.99
$
In Stock, only 2 left!
Bad Boy 010-7001-00
Bearing
$9.99
$
In Stock, Qty 11
Bad Boy 022-2006-00
Tire and wheel assembly
$136.99
$
Usually ships in 4-7 days
Bad Boy 025-5202-00
Front Wheel Spacer
$10.99
$
In Stock, Qty 13
Bad Boy 022-7009-00
Wheel Bearing
$14.99
$
In Stock, Qty 20+
