CZT Elite - Bad Boy Zero-Turn Mower (2013) 23 HP Vanguard Parts Diagram

Zero-Turn Mower

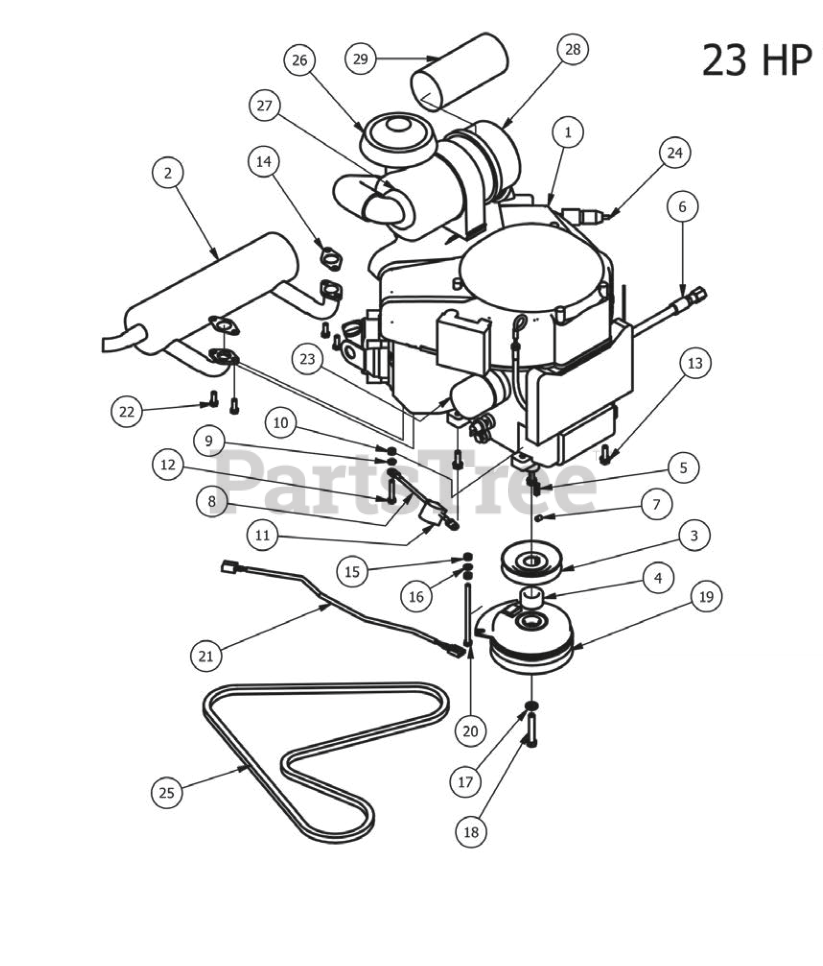

23 HP Vanguard Parts Diagram

  • Title

1

Bad Boy 015-0023-00

23hp Briggs Vanguard

$

$

Currently unavailable

2

Bad Boy 015-0033-00

23 HP Vanguard Exhaust

$234.99

$

Usually ships in 4-7 days

0

3

Bad Boy 033-5034-00

4 3/4" Motor Pulley

$37.99

$

Usually ships in 4-7 days

0

4

Bad Boy 025-5000-00

1 1/8" Collar Spacer

$7.99

$

Usually ships in 4-7 days

0

5

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

6

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

7

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 086-0005-00

Starter to chassis cable

$10.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

14

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

15

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

19

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 16

0

20

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

21

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

22

Bad Boy 018-0017-00

Torx Bolt-Exhaust-23hp Vanguard

$6.49

$

Usually ships in 4-7 days

0

23

Bad Boy 063-8018-00

Oil Filter Briggs

$28.99

$

In Stock, Qty 17

0

24

Bad Boy 063-6000-00

Universal inline Fuel Filter

$15.99

$

In Stock, Qty 17

0

25

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

26

Bad Boy 063-2045-00

Rain Cap-Fits all Canisters

$

$

Not available

27

Bad Boy 063-8090-00

Complete Air Canister

$388.99

$

Usually ships in 4-7 days

0

28

Bad Boy 088-1060-00

Canister Filter Cover

$156.99

$

Usually ships in 4-7 days

0

29

Bad Boy 063-8050-00

Canister Air Filter-23 Vanguar

$51.99

$

Usually ships in 4-7 days

0
