CZT Elite - Bad Boy Zero-Turn Mower (2013) Kawasaki FS - 730V Parts Diagram

Zero-Turn Mower

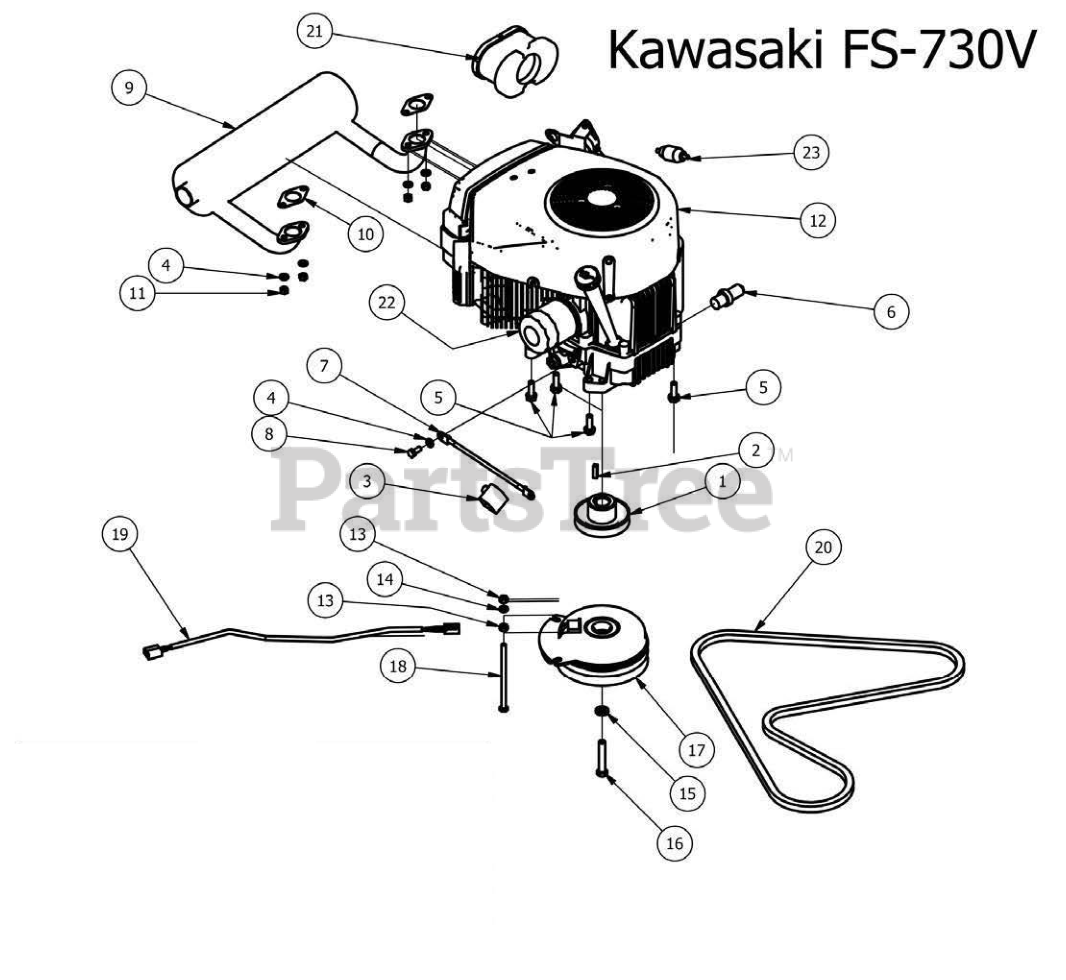

Kawasaki FS - 730V Parts Diagram

  • Title

1

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 2 left!

0

2

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

3

Bad Boy 103-5400-00

Black Boot For ground cable

$4.99

$

Usually ships in 4-7 days

0

4

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

6

Bad Boy 015-5404-00

oil drain

$15.99

$

Usually ships in 4-7 days

0

7

Bad Boy 086-0005-00

Starter to chassis cable

$10.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-5321-00

M8x1.20x20MM Hex head bolt

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 015-0012-00

Kawasaki Exhaust

$239.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-2709-00

Exhaust gasket

$11.99

$

In Stock, Qty 5

0

11

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 015-0045-00

FS730V Engine

$2621.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

15

Bad Boy 019-8053-00

7/16" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

16

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

17

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 16

0

18

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

19

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

20

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

21

Bad Boy 063-2097-00

Kaw air Filter For Engine

$27.99

$

In Stock, Qty 9

0

22

Bad Boy 063-8017-00

Oil Filter

$34.99

$

In Stock, Qty 17

0

23

Bad Boy 063-6000-00

Universal inline Fuel Filter

$15.99

$

In Stock, Qty 17

0
