CZTL 50 (17ADFACQ897) - Columbia 50" Zero-Turn Mower (2019) Engine Accessories Parts Diagram

50" Zero-Turn Mower

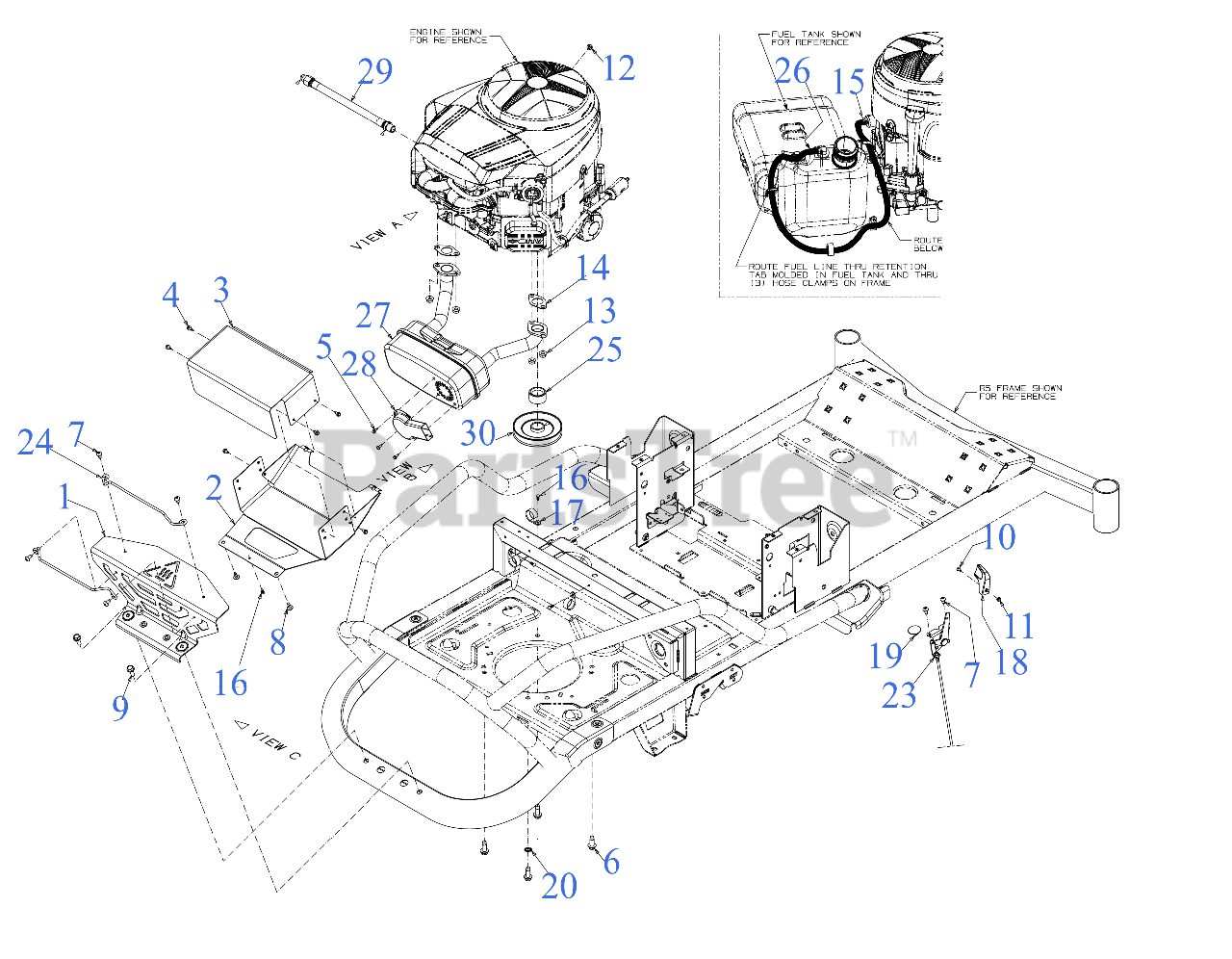

Engine Accessories Parts Diagram

  • Title

1

MTD 603P06299A

MUFFLER COVER (REAR) (BLACK)

$91.99

$

Usually ships in 3-6 days

0

1

MTD 728-05088

NUT RIVET 5/16-18 LOCK
(Superseded to 728-05043)

Note: (Not Shown)

$4.99

$

In Stock, only 2 left!

0

2

MTD 703-16041

MUFFLER SHIELD (LOWER)
(Superseded to 703-16041A)

$78.99

$

Usually ships in 3-6 days

0

3

MTD 703-16042

MUFFLER SHIELD (TOP
(Superseded to 703-16042A)

$44.99

$

Usually ships in 3-6 days

0

4

MTD 910-0224

HEX SCREW AB-TAP #10 x .50

$3.49

$

Usually ships in 3-6 days

0

5

MTD 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, Qty 6

0

7

MTD 710-05070A

SCREW 1/4-20 x .5

$6.49

$

In Stock, Qty 12

0

8

MTD 710-06133

SCREW M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

9

MTD 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 6

0

10

MTD 710-3217

SCREW #8-32X.38 LG

$6.49

$

In Stock, Qty 10

0

11

MTD 712-0142

HEX NUT 8-32

$4.49

$

In Stock, Qty 12

0

12

MTD 712-05106

HEX NUT 1/4-20

$2.99

$

Usually ships in 3-6 days

0

13

MTD 712-3086

HEX FLANGE NUT M8X

$4.49

$

In Stock, Qty 20+

0

14

MTD 721-0460

MUFFLER GASKET
(Superseded to 721P0460)

$6.49

$

Usually ships in 3-6 days

0

15

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

16

MTD 726-04099

RATCHET CLIP

$4.49

$

Usually ships in 3-6 days

0

17

MTD 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

18

MTD 731-09637

THROTTLE CONTROL KNOB

$7.99

$

In Stock, Qty 8

0

19

MTD 731-1999

CHOKE PLUG

$9.99

$

Usually ships in 3-6 days

0

20

MTD 736-0148

LOCK WASHER 3/8

$3.49

$

In Stock, Qty 12

0

23

MTD 946-05130

THROTTLE CABLE 38"

$40.99

$

In Stock, only 3 left!

0

24

MTD 747-06404A

MUFFLER SHIELD ROD

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 747-06404A-0637

ROD-MUFFLER SHIELD - POWDER BLACK (0637)

$6.99

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

25

MTD 748-05079

ENGINE PULLEY SPACER

$6.99

$

Usually ships in 3-6 days

0

26

MTD 751-10349-45

FUEL HOSE LOW PERMEATION 45"

$39.99

$

Usually ships in 3-6 days

0

27

MTD 951-10542A

EXHAUST MUFFLER
(Superseded to 951-10542E)

$132.99

$

In Stock, only 4 left!

0

28

MTD 751-11053B

EXHAUST DELECTOR (LONG)
(Superseded to 751Z11053B)

$4.99

$

In Stock, Qty 18

0

29

MTD 751-15324A

OIL DRAIN HOSE (11.26" 3/8 NPT)

$41.99

$

Usually ships in 3-6 days

0

30

MTD 756-05623

TRANSMISSION DRIVE PULLEY
(Superseded to 756-05623A)

$30.99

$

Usually ships in 3-6 days

0

OIL:SAE 10W30

$

$

Not available
