D 25 B (UT-08092) - Homelite Blower Engine Internal Parts Diagram

Blower

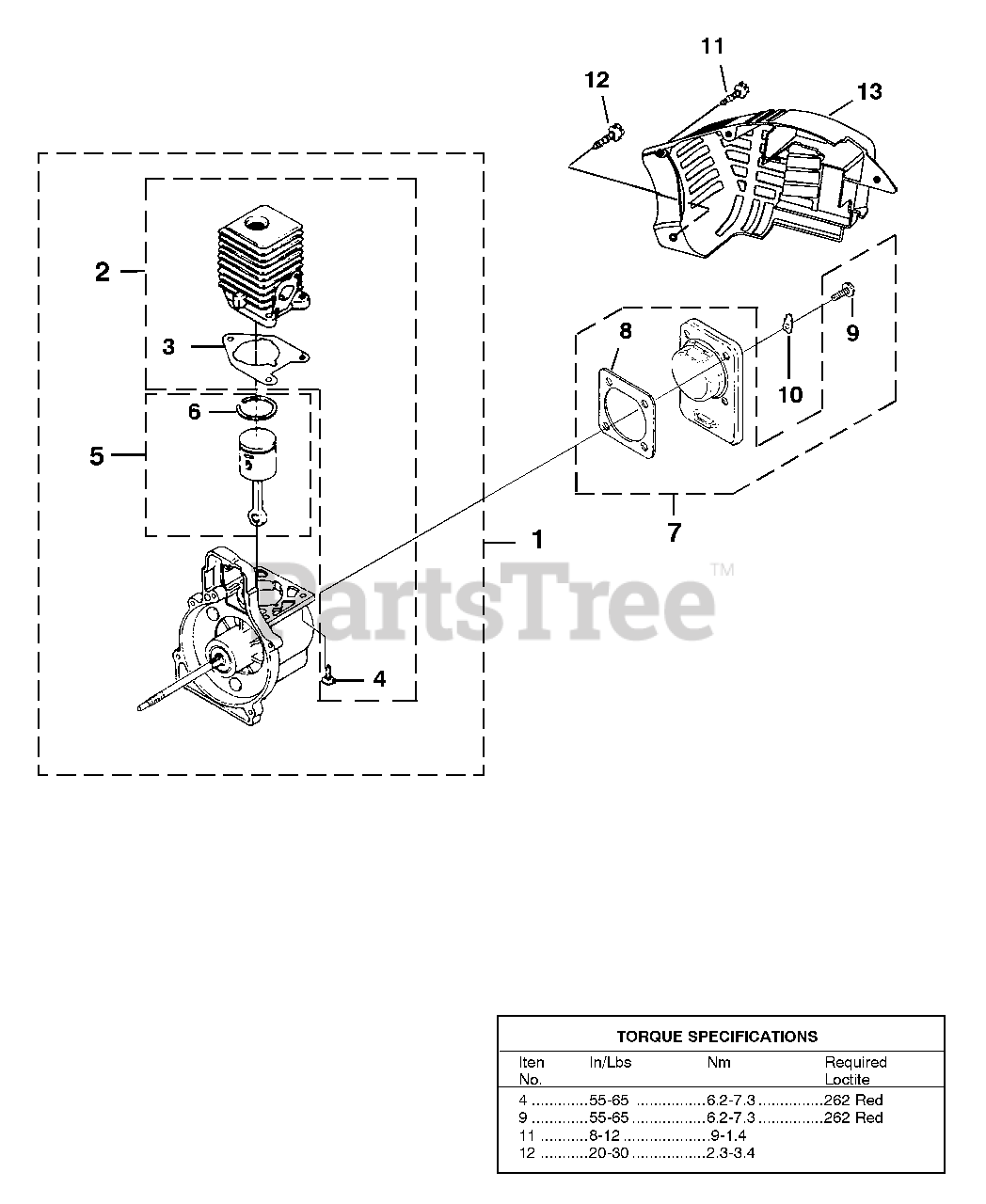

Engine Internal Parts Diagram

  • Title
1

Homelite UP03131

SHORT BLOCK (30cc)

Note: Includes items 2-6

$

$

Currently unavailable

2

Homelite UP07146

30 CC CYLINDER KIT
(Superseded to UP07146A)

Note: Includes items 2-4

$

$

Not available

3

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

Note: Also included with Short block & Cylinder Kits.

$1.99

$

In Stock, Qty 5

0

4

Homelite PS02807

SCREW, SEMS (12-24 x 3/4)

$1.49

$

Usually ships in 3-7 days

0

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

Note: (Not Shown)

$1.49

$

In Stock, only 3 left!

0

Homelite 00394B

GASKET-Muffler

Note: (Not Shown)

$

$

Not available

5

Homelite UP03366

30 CC PISTON & ROD
(Superseded to UP03037A)

Note: Includes item 6

$53.99

$

In Stock, only 1 left!

0

6

Homelite 03179

RING-Piston
(Superseded to 690161005)

$1.49

$

In Stock, only 2 left!

0

1

Homelite UP03133A

SHORT BLOCK (25cc)

Note: Includes items 2-6

$

$

Not available

2

Homelite UP04136A

25 CC CYLINDER KIT
(Superseded to UP07145A)

Note: Includes items 2-4

$43.99

$

In Stock, only 1 left!

0

3

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$1.99

$

In Stock, Qty 5

0

4

Homelite PS02807

SCREW, SEMS (12-24 x 3/4)

$1.49

$

Usually ships in 3-7 days

0

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

Note: (Not Shown)

$1.49

$

In Stock, only 3 left!

0

Homelite 00394B

GASKET-Muffler

Note: (Not Shown)

$

$

Not available

5

Homelite 984544001

25 CC PISTON & ROD

Note: Includes item 6

$

$

Not available

6

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

7

Homelite PS02130

CRANKCASE COVER-Stamped Steel

Note: Includes items 8-9

$

$

Not available

8

Homelite 06443A

GASKET-Crankcase
(Superseded to 900954001)

Note: Also included with Short block & Cylinder Kits.

$

$

Not available

9

Homelite PS01565

SCREW, SEMS (10-24 x .56)

Note: Also included with Short block & Cylinder Kits.

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 02851

TAB-Male

Note: (Not for UT08110 & UT08110A)

$

$

Not available

11

Homelite 82376

SCREW-Thread Form. (#8 X 1/2")
(Superseded to 660669001)

$1.49

$

In Stock, Qty 5

0

12

Homelite 82563

SCREW-Thread Form. (#10 X 3/4")

$1.49

$

In Stock, Qty 6

0

13

$

$

Not available
