D 725 CD (UT-20696) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

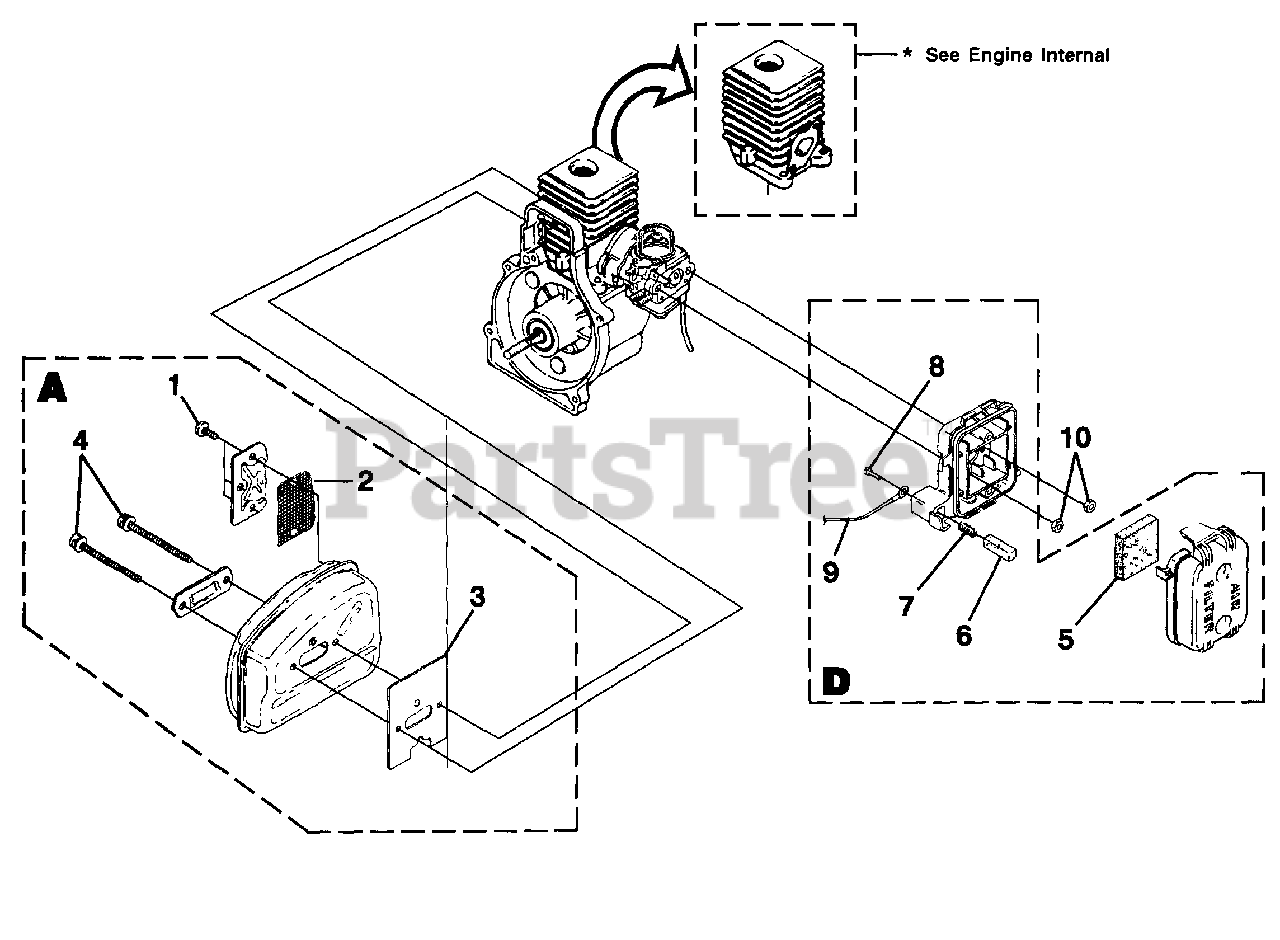

Muffler - Air Cleaner Parts Diagram

  • Title

A

Homelite A07142A

MUFFLER ASSY.
(Superseded to PA01073)

Note: Torque Specs 25-35 In/Lbs 2.8-4.0 Nm

$20.99

$

Usually ships in 3-7 days

0

1

Homelite 82600

SCREW, Taptite - (8-32 X 3/8")

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 06502

SCREEN-Spark

$

$

Not available

3

Homelite 09343

GASKET-Muffler

$

$

Not available

4

Homelite 88083

SCREW, Truss Hd. - (10-24 X 2.188)
(Superseded to PS03999)

Note: Torque Specs 50-60 In/Lbs 5.6-6.8 Nm

$

$

Not available

D

Homelite A04707A

AIR FILTER KIT

$

$

Not available

5

Homelite D98760B

FILTER-Air
(Superseded to 98760)

$1.49

$

In Stock, Qty 7

0

6

Homelite 98769

BUTTON-Switch

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 95020A

SPRING-Compression

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 82513

SCREW-Thread Form (6-19 x 1/2")

Note: Torque Specs 5-10 In/Lbs .6-1.1 Nm

$1.49

$

In Stock, Qty 5

0

9

Homelite A07238

LEAD-Electrical
(Superseded to 290218001)

$

$

Not available

10

Homelite 81208

NUT-Hex (10-24)

Note: Torque Specs 30-40 In/Lbs 3.4-4.5 Nm

$

$

Not available
