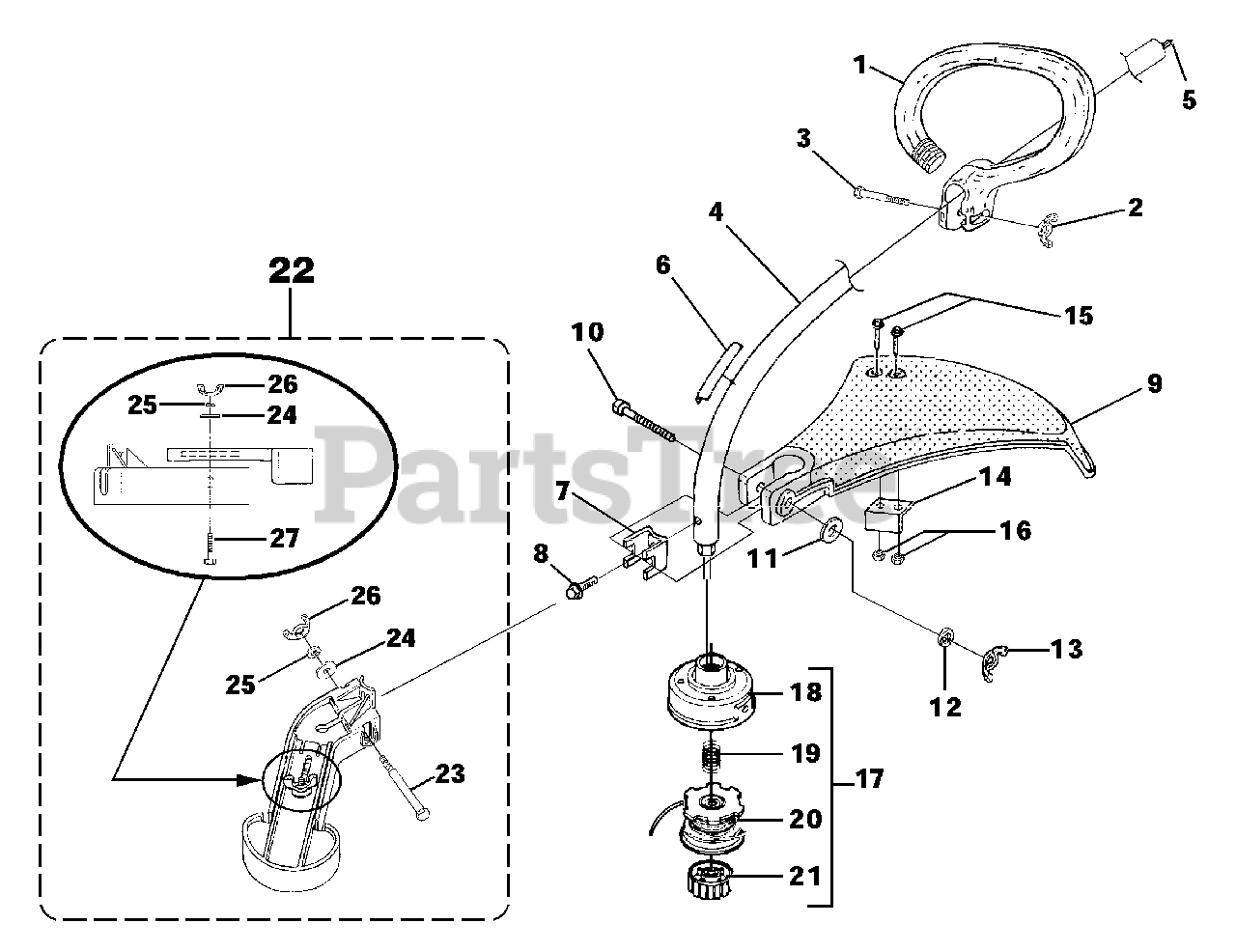

  • Title

1

Homelite UP06959

HANDLE-Anti-Vibe
(Superseded to 308472001)

Note: Includes items 2-3

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd.
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP00710

DRIVESHAFT HOUSING ASSY.
(Superseded to UP00710A)

Note: Includes items 5-8

$

$

Not available

5

Homelite UP03031

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

6

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

7

Homelite UP04137

CLAMP
(Superseded to 07928)

$

$

Not available

8

Homelite UP04256

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm.

$

$

Not available

9

Homelite UP06710

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 10-16

$

$

Not available

10

Homelite UP06523

SCREW-Cap Hex Hd. (10-24 X 2")
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

12

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

13

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

14

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 15-16

$

$

Not available

15

Homelite UP04159

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 82531)

$

$

Not available

16

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available

17

Homelite DA03001A

STRINGHEAD-Complete (.080") (UT20694, UT20697, UT20702, UT20728)
(Superseded to UP04408A)

Note: Includes items 18-21

$

$

Not available

Homelite DA04591A

STRINGHEAD-Complete (.095") (UT20695, UT20698, UT20707, UT20713)
(Superseded to DA04591AA)

Note: Includes items 18-21

$60.99

$

In Stock, only 1 left!

0

18

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

19

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

20

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

$60.99

$

In Stock, only 1 left!

0

21

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

22

Homelite UP00008

EDGER GUIDE KIT

Note: Includes items 23-27

$

$

Not available

23

Homelite UP04148

SCREW-Hex Hd. (1/4-20 X 2 1/2")
(Superseded to 80455)

$

$

Not available

24

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

25

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

26

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

27

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available
