D RT875 (960920010-00) - Poulan Pro Tiller (2008-01) Handle Assembly Parts Diagram

Tiller

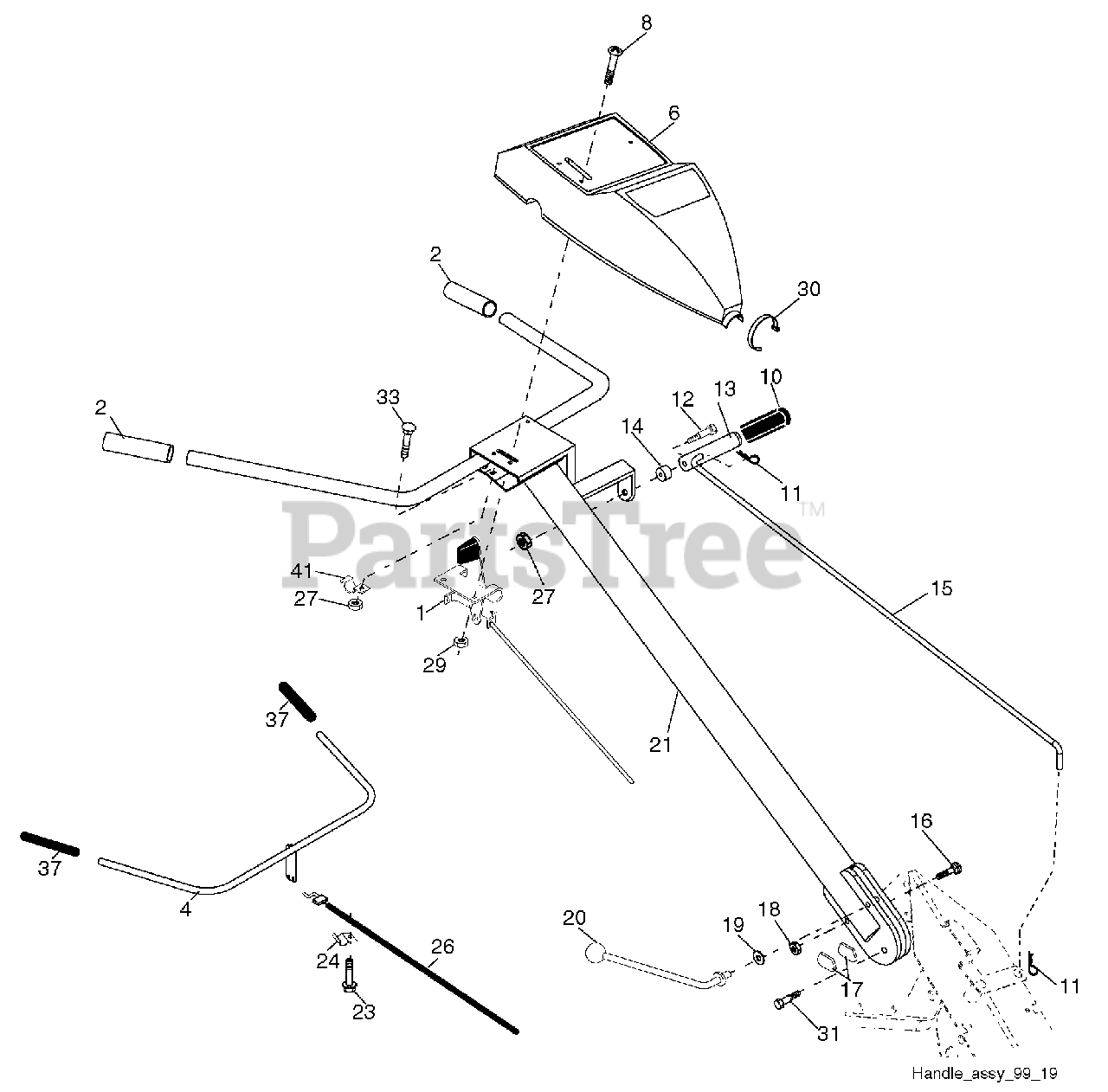

Handle Assembly Parts Diagram

  • Title

1

Electrolux/AYP 189482

Control, Throttle
(Superseded to 532189482)

$47.99

$

In Stock, Qty 17

0

2

Electrolux/AYP 165787

Grip, Handle
(Superseded to 532165787)

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 159228

Bar Assembly, Control

$11.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 180678

Panel, Control
(Superseded to 583104601)

$51.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 71191008

Screw, Phd. #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 8206H

Grip, Handle
(Superseded to 532008206)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 81328

Bolt, Shoulder
(Superseded to 532081328)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 187497

Handle, Shift
(Superseded to 532187497)

$

$

Not available

14

Electrolux/AYP 109313X

Grommet, Rubber
(Superseded to 532109313)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 109337X

Rod, Shift
(Superseded to 532109337)

$34.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 72110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109229X

Lock, Handle
(Superseded to 532109229)

$7.49

$

In Stock, Qty 10

0

18

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 596140201)

$3.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 109228X

Lever, Lock, Handle
(Superseded to 532109228)

$8.99

$

In Stock, only 4 left!

0

21

Electrolux/AYP 180517X428

Handle

$

$

Not available

23

Electrolux/AYP 86777

Screw, Hex Washer Hd. Slotted #10-24 x 1/2
(Superseded to 532086777)

$

$

Not available

24

Electrolux/AYP 9484R

Clip
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 159231

Cable, Clutch
(Superseded to 532159231)

$31.99

$

In Stock, Qty 16

0

27

Electrolux/AYP 73900400

Nut Hex Flange 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 73731000

Nut, Keps #10-24 unc

$2.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 104164X

Tie, Cable
(Superseded to 532104164)

$6.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 150696

Bolt, Pivot
(Superseded to 532150696)

$7.49

$

In Stock, Qty 5

0

33

Electrolux/AYP 72140404

Bolt, Carriage 1/4-20 unc x 1/2
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 102604X

Grip, Bar, Control
(Superseded to 532102604)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 102744X

Clamp, Bar, Control

$

$

Not available
