D RT900 (960920023-00) - Poulan Pro Tiller (2010-01) Tine Shield Parts Diagram

Tiller

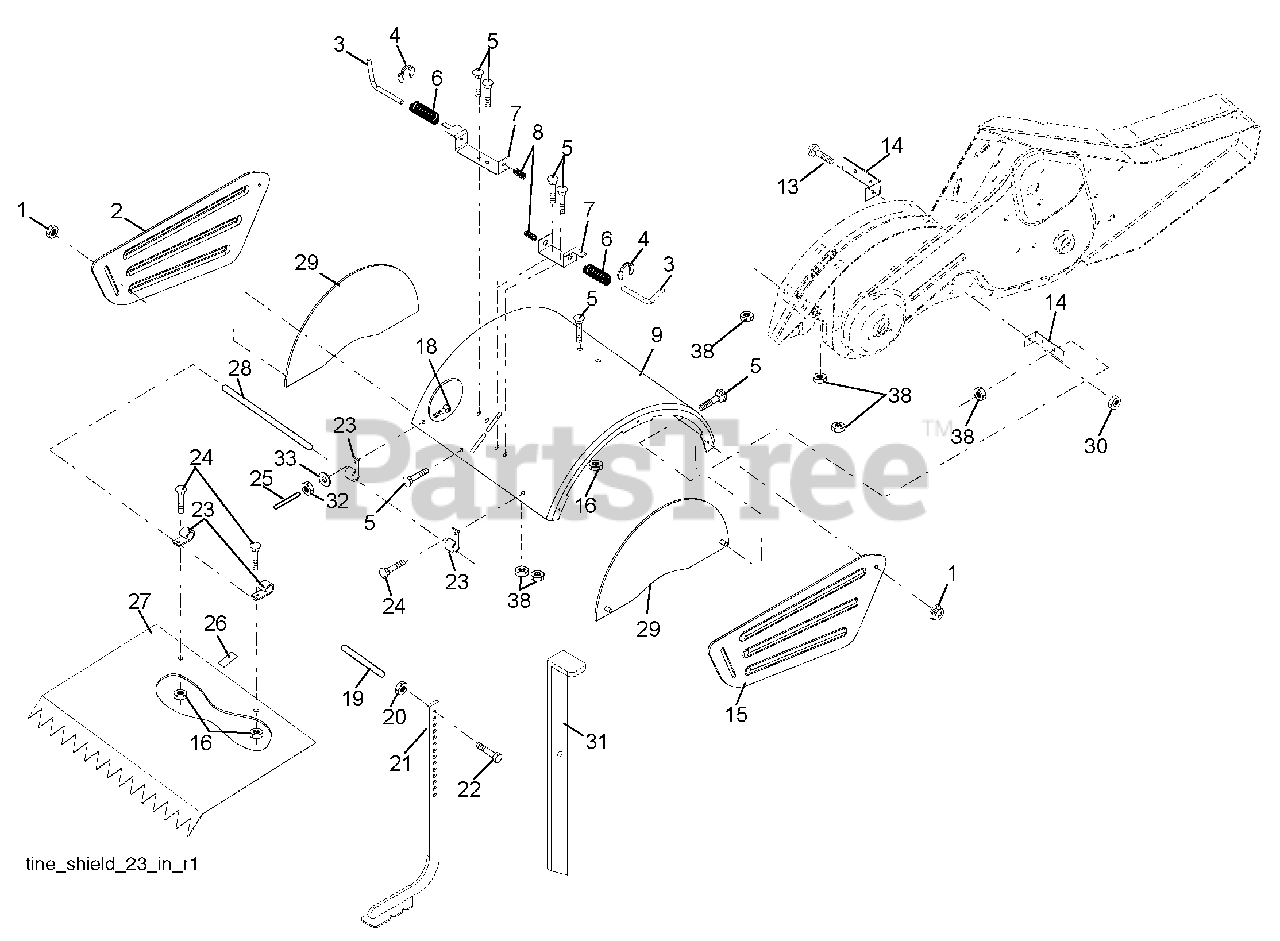

Tine Shield Parts Diagram

  • Title

1

Electrolux/AYP 73900500

Nut, Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 161415X421

Shield, Side, Outer L. H.
(Superseded to 583683601)

$7.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 8393J

Pin, Stake, Depth
(Superseded to 532008393)

$31.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 12000035

Ring, Klip
(Superseded to 812000035)

$7.49

$

In Stock, Qty 12

0

5

Electrolux/AYP 180847

Bolt 5/16-18 x 3/4 ZNC
(Superseded to 532180847)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 8394J

Spring
(Superseded to 532008394)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 8392J

Bracket, Latch
(Superseded to 532008392)

$

$

Not available

8

Electrolux/AYP 109230X

Spring, Depth Stake
(Superseded to 532109230)

$6.49

$

In Stock, Qty 13

0

9

Electrolux/AYP 188862X421

Shield, Tine

$

$

Not available

13

Electrolux/AYP 72110510

Bolt, Carriage 5/16-18 x 1-1/4
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 124343X

Bracket, Shield Tine
(Superseded to 584459301)

$22.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 161414X421

Shield, Side, Outer R.H.
(Superseded to 532441811)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73900400

Nut, Hex Flange 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 72040410

Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
(Superseded to 872040410)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 102701X

Grip
(Superseded to 532102701)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 102156X

Stake, Depth
(Superseded to 532144437)

$21.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 74930632

Bolt, Hex 3/8-16 x 2
(Superseded to 874930632)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 4440J

Hinge
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 72140404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 6712J

Cap, Vinyl
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 109227X

Pad, Idler
(Superseded to 532109227)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 102695X421

Shield, Leveling
(Superseded to 532124713)

$

$

Not available

28

Electrolux/AYP 120588X

Pin, Hinge
(Superseded to 532120588)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 197761X421

Shield, Side
(Superseded to 532441810)

$

$

Not available

30

Electrolux/AYP 73970500

Locknut, Flange 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 163498

Stake Depth Drag

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 73220400

Nut Fin Hex 1/4-20 unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

38

Electrolux/AYP 73510500

Nut, Keps 5/16-18 unc

$2.99

$

Usually ships in 3-10 days

0
