D15KH30 (960410227-01) - Dixon 30" Lawn Tractor, 15hp Kohler (2012-07) DRIVE Parts Diagram

30" Lawn Tractor, 15hp Kohler

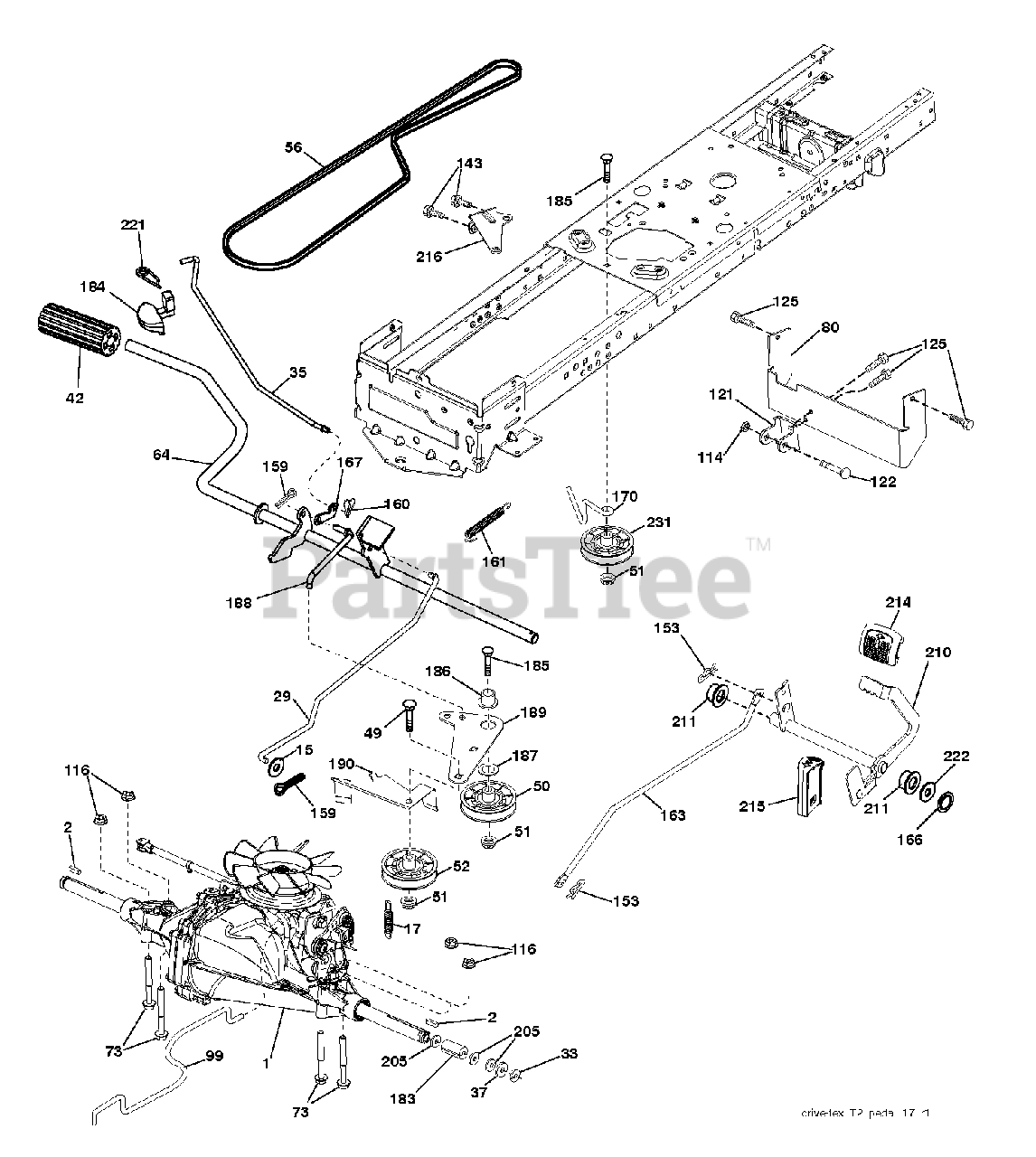

DRIVE Parts Diagram

  • Title

1

Dixon 000000000

No Description Available

Note: Transaxle Hydro T2-BABC-1X2B-1GX1 (421645)

$

$

Not available

2

Dixon 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

15

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 532197296

No Description Available

$6.49

$

Usually ships in 3-10 days

0

29

Dixon 532423239

No Description Available

$30.99

$

In Stock, only 2 left!

0

33

Dixon 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Dixon 532401031

No Description Available

$18.99

$

Usually ships in 3-10 days

0

37

Dixon 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Dixon 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Dixon 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Dixon 532125907

BELT

$36.99

$

In Stock, Qty 20+

0

64

Dixon 532197865

SHAFT.ASM.PEDAL.BRK.CN

$53.99

$

In Stock, only 1 left!

0

73

Dixon 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

80

Dixon 532408393

No Description Available
(Superseded to 581550701)

$18.99

$

Usually ships in 3-10 days

0

99

Dixon 532408418

No Description Available

$9.99

$

Usually ships in 3-10 days

0

114

Dixon 873800500

NUT

$3.99

$

Usually ships in 3-10 days

0

116

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

121

Dixon 532175611

No Description Available

$4.99

$

Usually ships in 3-10 days

0

122

Dixon 872010520

No Description Available

$6.49

$

Usually ships in 3-10 days

0

125

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Dixon 532124788

OBSOLETE - RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Dixon 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Dixon 532169484

RETAINER CLIP

$

$

Not available

161

Dixon 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Dixon 532413322

No Description Available

$30.99

$

Usually ships in 3-10 days

0

166

Dixon 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Dixon 532405257

LATCH BRAKE PARKING

$4.99

$

Usually ships in 3-10 days

0

170

Dixon 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

183

Dixon 532156972

No Description Available

$

$

Not available

184

Dixon 532441407

No Description Available
(Superseded to 532411484)

$67.99

$

Usually ships in 3-10 days

0

185

Dixon 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Dixon 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Dixon 819133210

OBSOLETE - WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Dixon 532194323

LINK.CLUTCH.GROUND DRI
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Dixon 532194317

BELLCRANK.GRDDRIVE.NST

$4.99

$

In Stock, Qty 7

0

190

Dixon 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

205

Dixon 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

210

Dixon 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

211

Dixon 532120183

BEARING RER

$6.49

$

In Stock, Qty 7

0

214

Dixon 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, Qty 5

0

215

Dixon 532401723

PEDAL.REVERSE.TEX.GT.4

$7.49

$

Usually ships in 3-10 days

0

216

Dixon 532196131

BRKT.PULLEY.IDLER.WTEX

$7.49

$

In Stock, only 2 left!

0

221

Dixon 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Dixon 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

231

Dixon 532407287

PULLEY VGROOVE

$18.99

$

In Stock, Qty 20+

0
