D15KH30 (960410227-02) - Dixon 30" Lawn Tractor, 15hp Kohler (2013-04) CHASSIS ENCLOSURES Parts Diagram

30" Lawn Tractor, 15hp Kohler

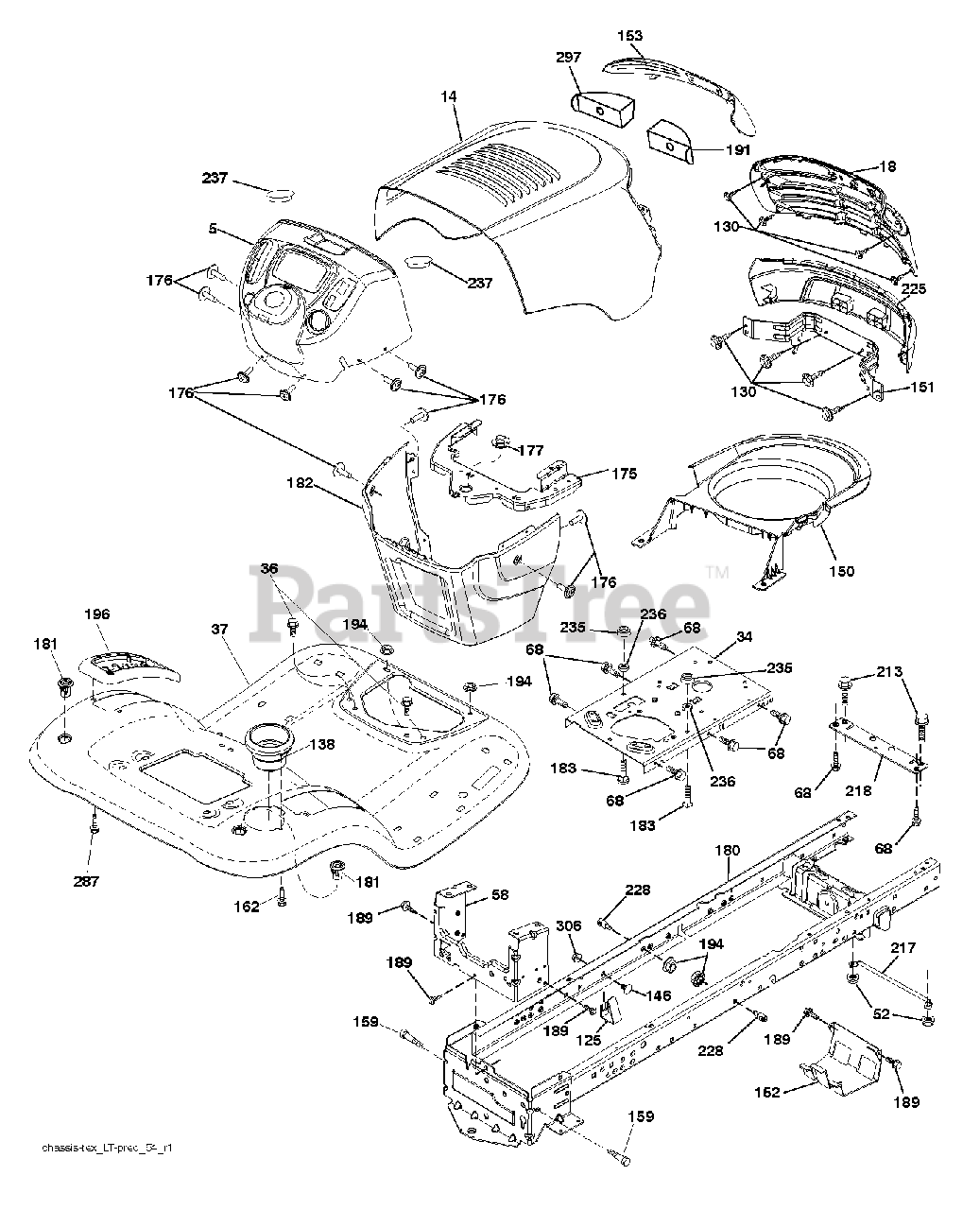

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Dixon 532425772

DASH.PRED.LT.CC.ICY.N/SRV.BLK

$60.99

$

Usually ships in 3-10 days

0

14

Dixon 532446021

HOOD.PREDATR.LT.BLUE.DIXON
(Superseded to 587483501)

$

$

Not available

18

Dixon 532444884

GRILLE SVC.PPRED.LT.DIXON.BLCK

$113.99

$

Usually ships in 3-10 days

0

34

Dixon 580910801

PLATE.ENGINE.WELDED.CHASSIS

$49.99

$

Usually ships in 3-10 days

0

36

Dixon 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 532444887

FENDER.TLT.W/CPH.BLUE

$109.99

$

Usually ships in 3-10 days

0

52

Dixon 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Dixon 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

125

Dixon 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

130

Dixon 532416358

SCREW.#10 X 0.750.BOS (2 2)

$

$

Not available

138

Dixon 532409730

CUPHOLDER.TL.TEX.BLACK

$7.49

$

In Stock, only 1 left!

0

146

Dixon 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

150

Dixon 532408310

DUCT.AIR.TOP.VENT.PREDATOR.LT

$24.99

$

Usually ships in 3-10 days

0

151

Dixon 532187568

BRACKET.PIVOT.ALPHA.LT

$15.99

$

Usually ships in 3-10 days

0

152

Dixon 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Dixon 532444264

LENS.PREDATOR.LT

$21.99

$

Usually ships in 3-10 days

0

159

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

162

Dixon 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Dixon 532199472

CROSSMEMBER

$9.99

$

Usually ships in 3-10 days

0

176

Dixon 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Dixon 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 20+

0

180

Dixon 532414685

CHASSIS.WLDMNT.14GA.2PC.18".TI
(Superseded to 583351501)

$121.99

$

Usually ships in 3-10 days

0

181

Dixon 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Dixon 532407176

DASH.LOWER.PREDATOR LT

$66.99

$

Usually ships in 3-10 days

0

183

Dixon 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Dixon 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$24.99

$

Usually ships in 3-10 days

0

194

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Dixon 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

213

Dixon 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

217

Dixon 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

218

Dixon 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

225

Dixon 532444885

BUMPER.PREDATOR.LT.BLUE.DIXON

$48.99

$

Usually ships in 3-10 days

0

228

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Dixon 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Dixon 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Dixon 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

Dixon 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

297

Dixon 532406665

No Description Available

$9.99

$

Usually ships in 3-10 days

0

306

Dixon 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

--

Dixon 532432372

BUMPER.DIXON.2010.BLUE

$169.99

$

Usually ships in 3-10 days

0
