D15KH30 (960410227-02) - Dixon 30" Lawn Tractor, 15hp Kohler (2013-04) MOWER DECK / CUTTING DECK Parts Diagram

30" Lawn Tractor, 15hp Kohler

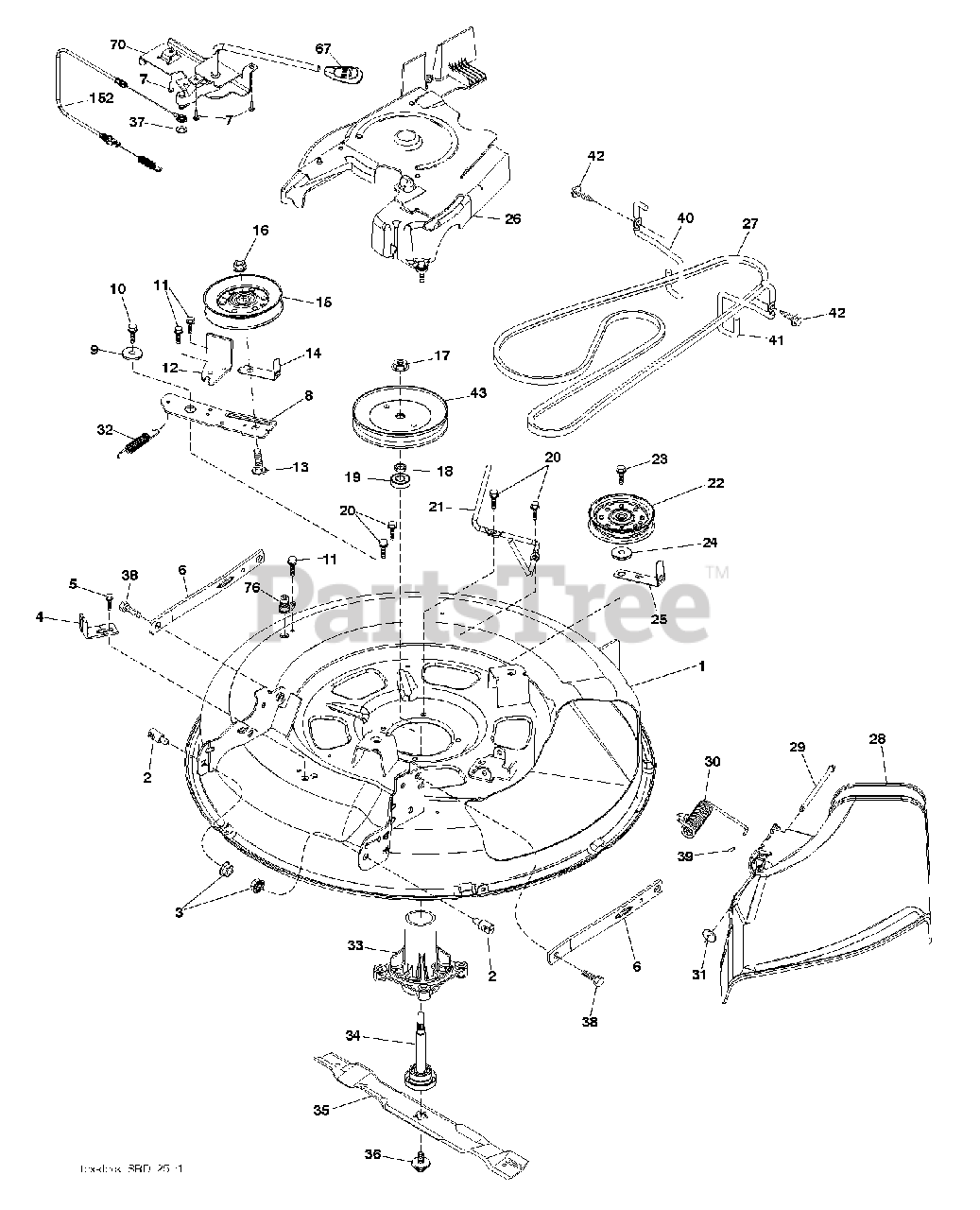

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 532444904

DECK KIT SVC 30"BLUE

$207.99

$

Usually ships in 3-10 days

0

2

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

4

Dixon 532417645

BRACKET.CLUTCH.CABLE

$4.99

$

Usually ships in 3-10 days

0

5

Dixon 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

6

Dixon 532418863

ARMS.SUSP.MOWER.REAR.SRD

$7.49

$

Usually ships in 3-10 days

0

7

Dixon 532416358

SCREW.#10 X 0.750.BOS (2 2)

$

$

Not available

8

Dixon 532420252

ARM.IDLER.30"SRD
(Superseded to 583379801)

$11.99

$

Usually ships in 3-10 days

0

9

Dixon 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

10

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

11

Dixon 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

12

Dixon 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, Qty 13

0

13

Dixon 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Dixon 532156085

No Description Available
(Superseded to 532173968)

$

$

Not available

15

Dixon 532146763

PULLEY.IDLER.4.25

$

$

Not available

16

Dixon 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Dixon 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

18

Dixon 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

19

Dixon 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

20

Dixon 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

21

Dixon 532416910

KEEPER.BELT.MANDREL.30"

$15.99

$

Usually ships in 3-10 days

0

22

Dixon 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

23

Dixon 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

24

Dixon 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

25

Dixon 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Dixon 532420255

COVER.ASM.MANDREL.30"
(Superseded to 583481101)

$40.99

$

Usually ships in 3-10 days

0

27

Dixon 532419271

V-BELT.DRIVE.MOWER.30"

$60.99

$

In Stock, only 3 left!

0

28

Dixon 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

Usually ships in 3-10 days

0

29

Dixon 532420895

PIN.HINGE.30".SRD
(Superseded to 583383801)

$

$

Not available

30

Dixon 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

31

Dixon 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

32

Dixon 532401872

SPRING RETURN

$4.99

$

In Stock, Qty 20+

0

33

Dixon 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

34

Dixon 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

35

Dixon 532419273

BLADE, MULCH.LRV30

$15.99

$

In Stock, Qty 11

0

36

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

37

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Dixon 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

39

Dixon 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

40

Dixon 532419270

KEEPER.BELT.ENGINE.LH.LT.SRD

$15.99

$

In Stock, only 1 left!

0

41

Dixon 532419265

KEEPER.BELT.ENGINE.RH.LT.SRD

$15.99

$

In Stock, only 4 left!

0

42

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

43

Dixon 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568001)

$34.99

$

In Stock, only 1 left!

0

67

Dixon 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 4 left!

0

70

Dixon 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

Usually ships in 3-10 days

0

76

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

152

Dixon 532435111

CABLE.CLUTCH.MANUAL.

$29.99

$

Usually ships in 3-10 days

0

--

Dixon 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

--

Dixon 580943201

No Description Available
(Superseded to 532444904)

$207.99

$

Usually ships in 3-10 days

0
