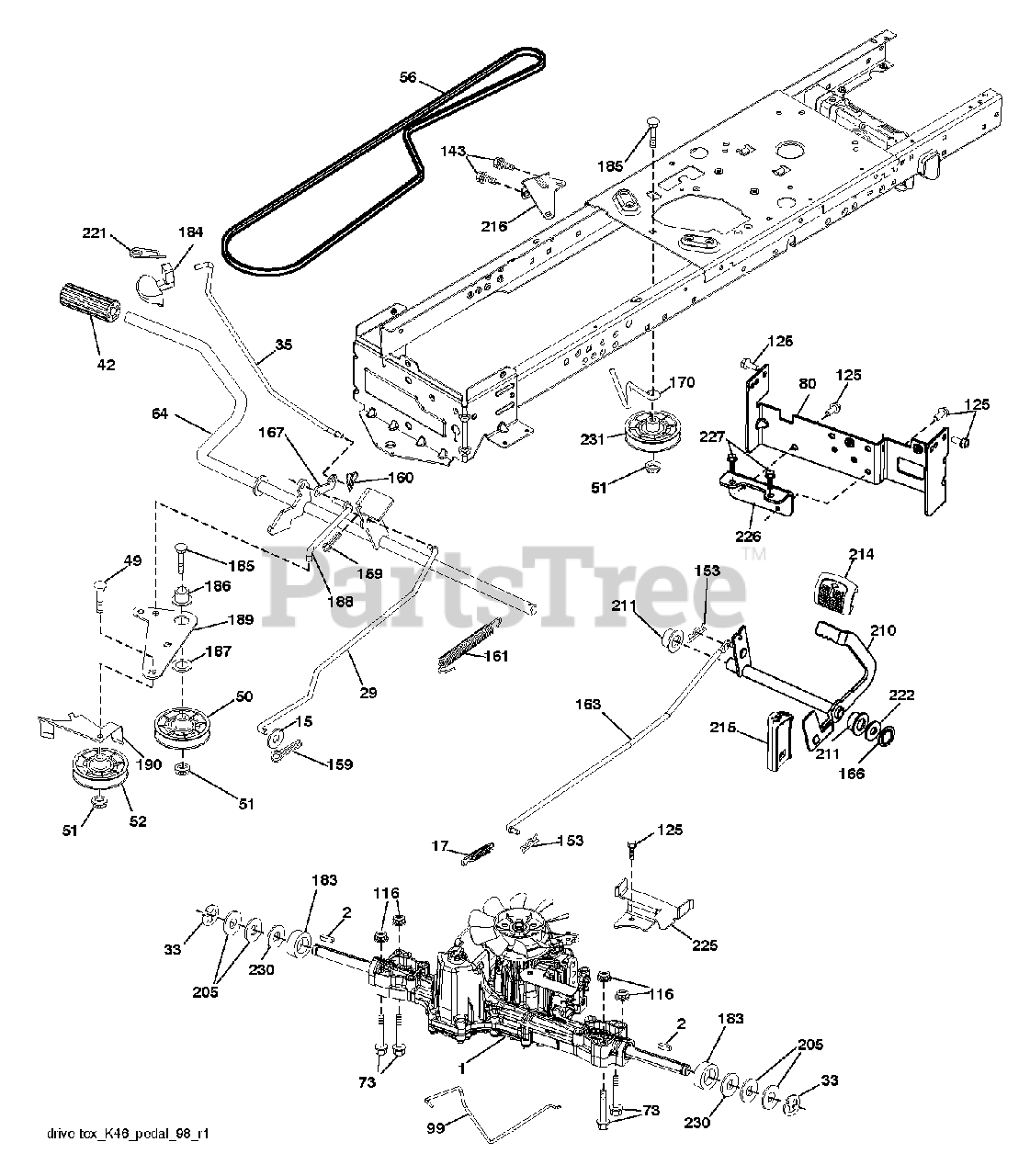

D17KH38 (960410229-02) - Dixon 38" Lawn Tractor, 17hp Kohler (2013-04) DRIVE Parts Diagram

38" Lawn Tractor, 17hp Kohler

DRIVE Parts Diagram

  • Title

1

Dixon 000000000

No Description Available

Note: TRANSAXLE TUFFTORQ K46BT (426120)

$

$

Not available

2

Dixon 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

15

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 532413678

SPRING.BRAKE.K46.GREEN

$7.49

$

In Stock, Qty 15

0

29

Dixon 532403806

ROD.BRAKE.K46

$31.99

$

In Stock, only 1 left!

0

33

Dixon 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Dixon 532401031

No Description Available

$18.99

$

Usually ships in 3-10 days

0

42

Dixon 532124872

No Description Available
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Dixon 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Dixon 532130969

V-BELT

$31.99

$

In Stock, Qty 20+

0

64

Dixon 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Dixon 874490540

No Description Available

$4.99

$

Usually ships in 3-10 days

0

80

Dixon 532440619

STRAP.TORQUE.K46.K57R.TT

$24.99

$

Usually ships in 3-10 days

0

99

Dixon 532415742

ROD.SPRING.BYPASS.K46.LT.Z

$10.99

$

In Stock, only 4 left!

0

116

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Dixon 817000512

OBSOLETE - SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Dixon 532124788

No Description Available
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Dixon 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Dixon 532169484

RETAINER CLIP

$

$

Not available

161

Dixon 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Dixon 532448275

No Description Available
(Superseded to 532401034)

$

$

Not available

166

Dixon 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Dixon 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Dixon 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

183

Dixon 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

184

Dixon 532441407

OBSOLETE - HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$67.99

$

Usually ships in 3-10 days

0

185

Dixon 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Dixon 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Dixon 819133210

OBSOLETE - WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Dixon 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Dixon 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$4.99

$

In Stock, Qty 7

0

190

Dixon 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

205

Dixon 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

210

Dixon 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

211

Dixon 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

214

Dixon 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, Qty 5

0

215

Dixon 532401723

PEDAL.REVERSE.TEX.GT.4

$7.49

$

Usually ships in 3-10 days

0

216

Dixon 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Dixon 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Dixon 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

225

Dixon 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

226

Dixon 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Dixon 817490512

No Description Available
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

230

Dixon 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Dixon 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+
