D22H46 (960460012-00) - Dixon 46" Lawn Tractor, 22hp Kohler (2010-02) MOWER DECK / CUTTING DECK Parts Diagram

46" Lawn Tractor, 22hp Kohler

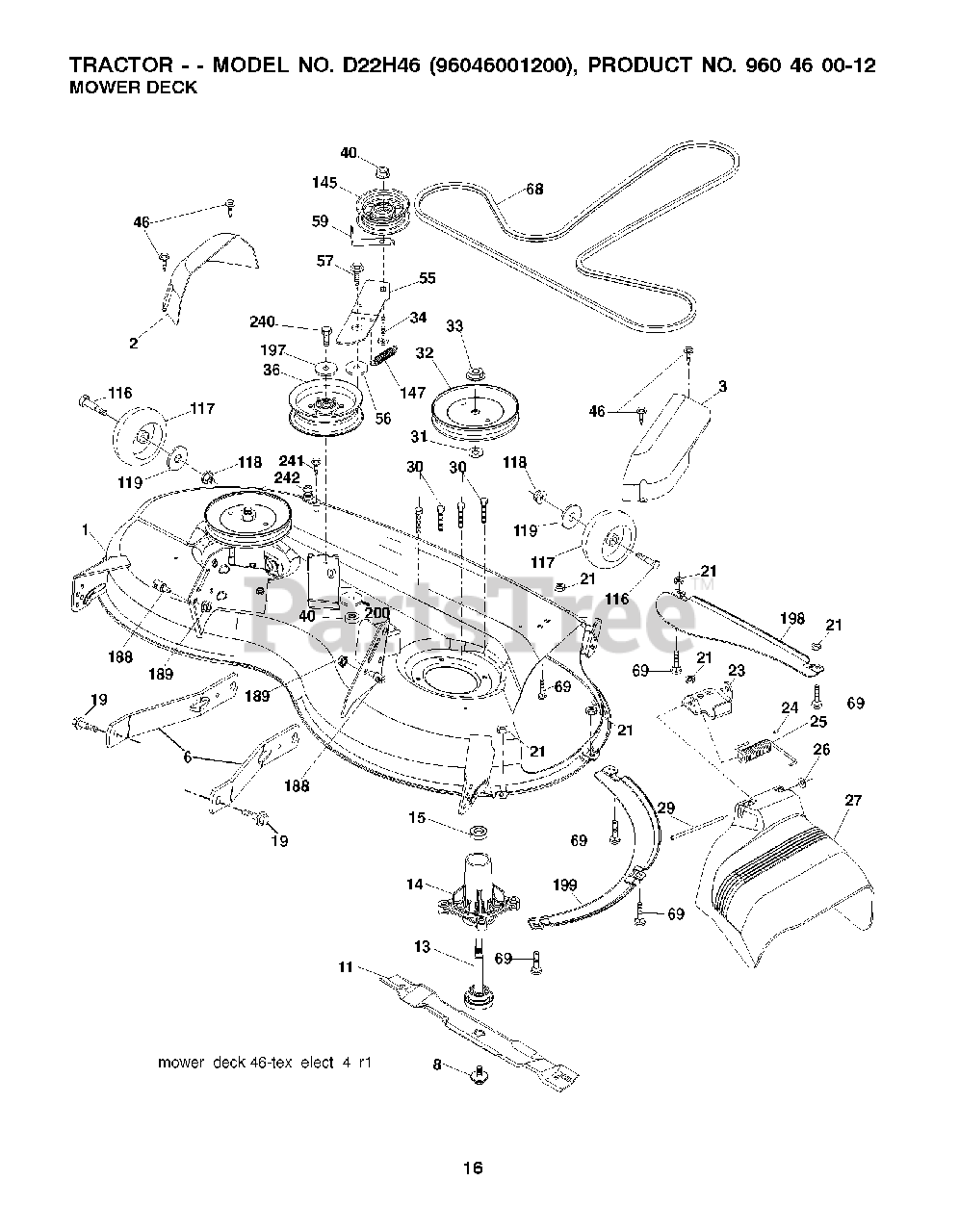

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 532436378

DECK.WELDMENT.46"4GW.WHL.MS666
(Superseded to 532442507)

$375.99

$

Usually ships in 3-10 days

0

2

Dixon 532405507

COVER.MANDREL.LH.46"

Note: LH

$47.99

$

In Stock, Qty 8

0

3

Dixon 532405506

COVER.MANDREL.RH.46"

Note: RH

$47.99

$

In Stock, Qty 11

0

6

Dixon 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

8

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Dixon 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

11

Dixon 532403107

BLADE, 46" MULCH

$15.99

$

In Stock, Qty 13

0

13

Dixon 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

14

Dixon 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Dixon 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

19

Dixon 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Dixon 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Dixon 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Dixon 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Dixon 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Dixon 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 8

0

29

Dixon 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Dixon 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Dixon 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

Dixon 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Dixon 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Dixon 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

Dixon 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Dixon 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Dixon 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

Dixon 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

57

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

59

Dixon 532141043

GUARD, BELT
(Superseded to 531165901)

Note: 94

$4.99

$

In Stock, Qty 15

0

62

Dixon 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

68

Dixon 532405143

V-BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 20+

0

69

Dixon 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Dixon 532124842

Shield Bolt, A 2.41 B 1.66
(Superseded to 532004898)

$

$

Not available

117

Dixon 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$4.99

$

In Stock, Qty 20+

0

118

Dixon 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Dixon 819121414

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

145

Dixon 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

Dixon 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 10

0

188

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

197

Dixon 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

198

Dixon 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

199

Dixon 532403150

BAFFLE FRONT RH

Note: RH

$11.99

$

Usually ships in 3-10 days

0

200

Dixon 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

241

Dixon 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 17

0

242

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

Dixon 532416405

COUPLING.QUICK CONNECT

Note: COUPLING QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

Dixon 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: BLADE BOLT /WASHERS NOT INCL

$47.99

$

In Stock, Qty 20+

0

Dixon 532435120

DECK.CMPLT.46".CBL.4GWB.BLUE

Note: COMPLETE

$667.99

$

Usually ships in 3-10 days

0
