D22KH42 (960410183-04) - Dixon 42" Lawn Tractor, 22hp Kohler (2014-05) MOWER DECK / CUTTING DECK Parts Diagram

42" Lawn Tractor, 22hp Kohler

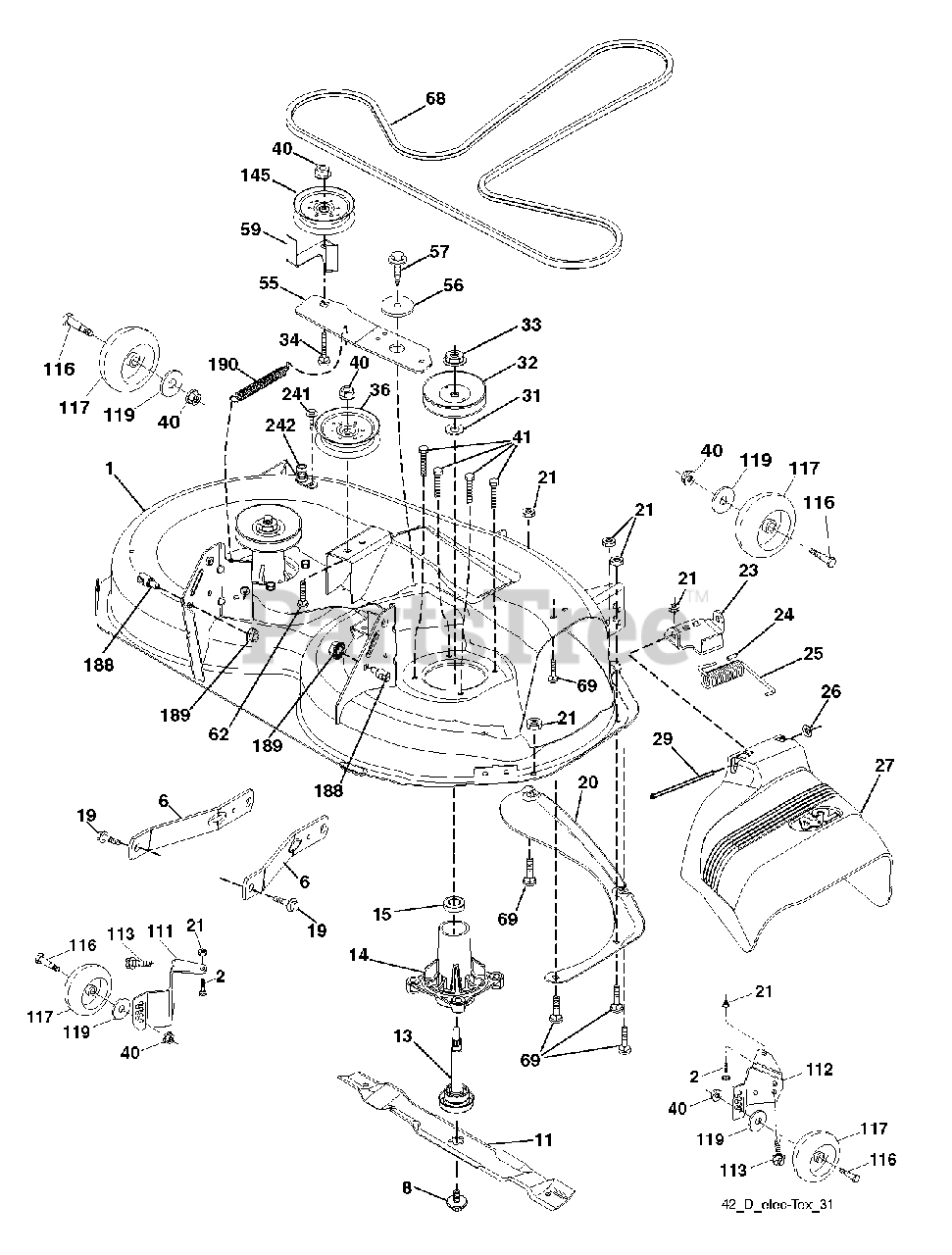

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 532437030

DECK.WELDMENT.42".2GWB.BLUE

$242.99

$

Usually ships in 3-10 days

0

2

Dixon 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Dixon 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

8

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Dixon 532138971

42" HI-LIFT BLADE

$14.99

$

In Stock, Qty 20+

0

13

Dixon 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

14

Dixon 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Dixon 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

19

Dixon 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Dixon 532159770

BAFFLE.VORTEX

$

$

Not available

21

Dixon 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Dixon 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Dixon 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Dixon 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Dixon 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

In Stock, Qty 5

0

29

Dixon 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Dixon 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Dixon 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Dixon 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Dixon 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

Dixon 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Dixon 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

55

Dixon 532437110

IDLER.ARM.42"

$

$

Not available

56

Dixon 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

57

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

59

Dixon 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 17

0

62

Dixon 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

68

Dixon 532144959

BELT V SECONDARY

$42.99

$

In Stock, Qty 20+

0

69

Dixon 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

111

Dixon 532404784

BRKT.WHEEL.GAUGE.LH.42"

$12.99

$

In Stock, only 1 left!

0

112

Dixon 532404785

BRKT.WHEEL.GAUGE.RH.42"

$10.99

$

Usually ships in 3-10 days

0

113

Dixon 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

116

Dixon 532124842

No Description Available
(Superseded to 532004898)

$

$

Not available

117

Dixon 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$4.99

$

In Stock, Qty 20+

0

119

Dixon 819121414

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

145

Dixon 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

188

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

190

Dixon 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 11

0

241

Dixon 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 18

0

242

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

--

Dixon 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15)- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$47.99

$

In Stock, Qty 20+

0

--

Dixon 532437019

DECK.CMPLT.42".ELCT.4GWB.BLUE

$849.99

$

Usually ships in 3-10 days

0
