D24KH54 (960460037-02) - Dixon 54" Lawn Tractor, 24hp Kohler (2013-08) ELECTRICAL Parts Diagram

54" Lawn Tractor, 24hp Kohler

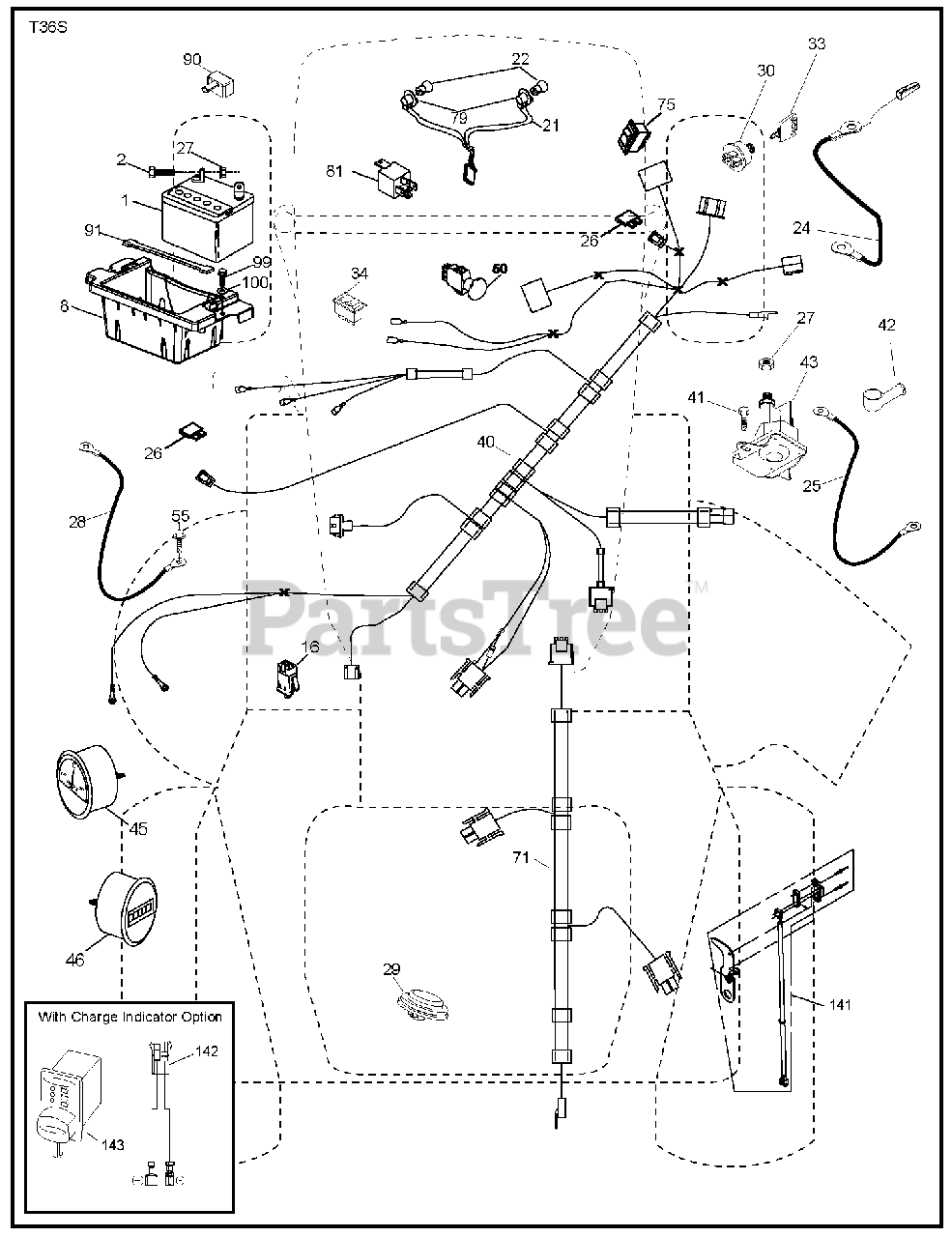

ELECTRICAL Parts Diagram

  • Title

1

Dixon 532163465

OBSOLETE - REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Dixon 874760412

OBSOLETE - BOLT LT

$7.49

$

In Stock, Qty 5

0

8

Dixon 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Dixon 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 6

0

21

Dixon 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

22

Dixon 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Dixon 532400253

CABLE.BATT.POS.WIRE.TG.DA SOL
(Superseded to 585555601)

$8.99

$

In Stock, Qty 14

0

25

Dixon 532412895

CABLE.STARTER.6G.BL/RED.17.5
(Superseded to 585555501)

$8.99

$

In Stock, Qty 11

0

26

Dixon 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 13

0

27

Dixon 873510400

OBSOLETE - NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 1 left!

0

29

Dixon 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 20+

0

30

Dixon 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

33

Dixon 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

Dixon 532110712

SWITCH LT

$8.99

$

In Stock, Qty 12

0

40

Dixon 532419584

HARNESS.DASH.ELECTRIC.LIFT

$169.99

$

Usually ships in 3-10 days

0

41

Dixon 817720408

OBSOLETE - SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 532131563

OBSOLETE - TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Dixon 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

45

Dixon 532434634

AMMETER.ROUND.SNAPIN

$78.99

$

Usually ships in 3-10 days

0

46

Dixon 532434635

HOURMETER.ROUND.SNAPIN
(Superseded to 587554002)

$

$

Not available

50

Dixon 532174651

PTO SWITCH
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Dixon 532419583

HARNESS

$72.99

$

Usually ships in 3-10 days

0

75

Dixon 532417237

SWITCH.ROCKER.DECKLIFT

$27.99

$

Usually ships in 3-10 days

0

79

Dixon 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

81

Dixon 532409615

RELAY HARNESS.SEALED

$34.99

$

Usually ships in 3-10 days

0

90

Dixon 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

91

Dixon 532190270

STRAP, BATTERY MOUNT

$9.99

$

In Stock, Qty 19

0

99

Dixon 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

100

Dixon 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

141

Dixon 532421225

No Description Available

$145.99

$

Usually ships in 3-10 days

0
