D26KH54 (960410184-03) - Dixon 54" Lawn Tractor, 26hp Kohler (2013-06) DRIVE Parts Diagram

54" Lawn Tractor, 26hp Kohler

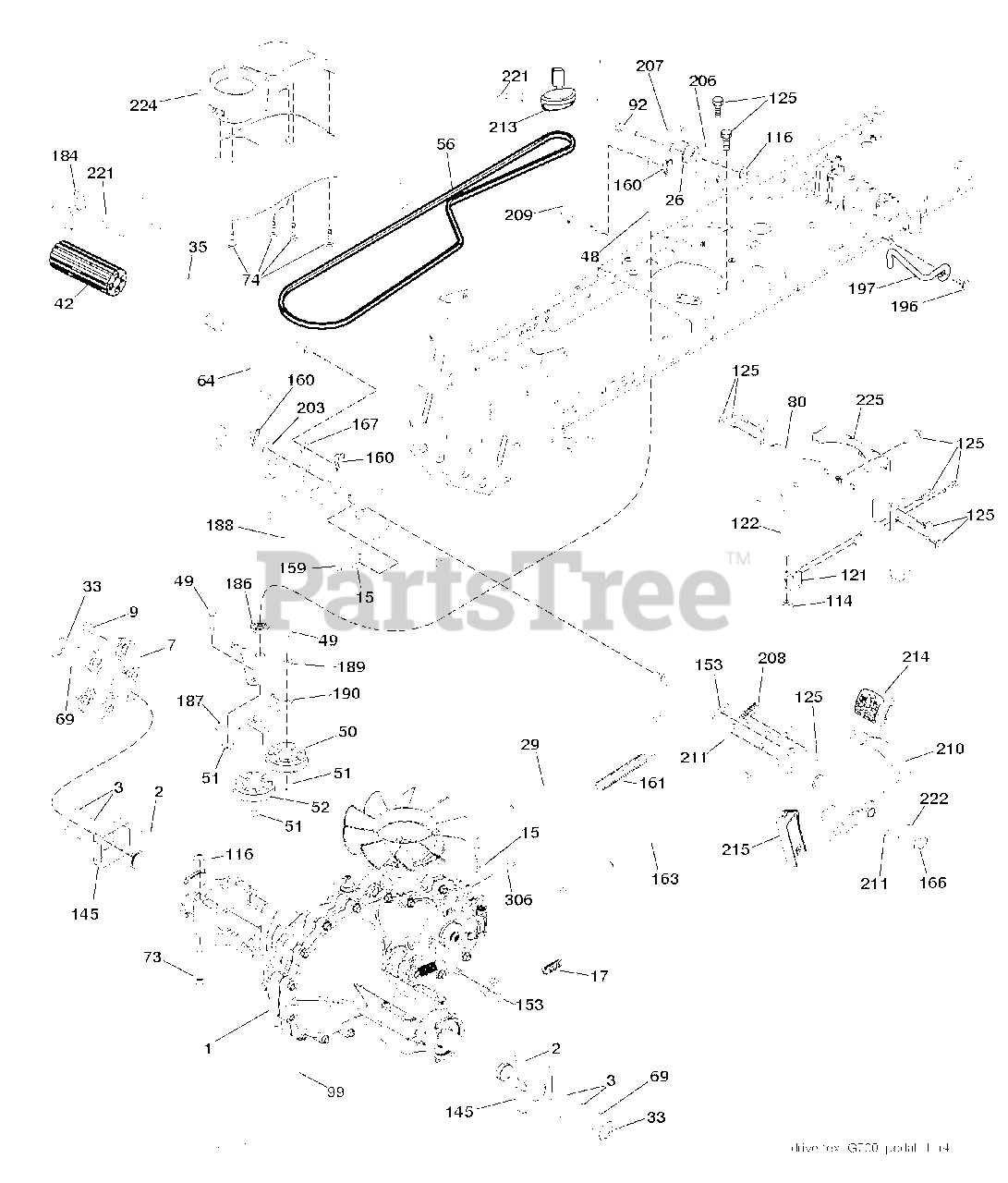

DRIVE Parts Diagram

  • Title

1

Dixon 000000000

No Description Available

Note: TRANSAXLE HYDRO G7BCBB-1XDC-IECX (418183)

$

$

Not available

2

Dixon 532007070

KEY

$

$

Not available

3

Dixon 532007563

WASHER T

$8.99

$

In Stock, only 3 left!

0

7

Dixon 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 8

0

9

Dixon 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 532197296

No Description Available

$6.49

$

Usually ships in 3-10 days

0

26

Dixon 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Dixon 532418186

No Description Available

$30.99

$

Usually ships in 3-10 days

0

33

Dixon 812000053

E RING HYT

$7.49

$

In Stock, only 3 left!

0

35

Dixon 532197275

ROD.BRKAE.PARKING.STEALTH

$21.99

$

Usually ships in 3-10 days

0

42

Dixon 532124872

No Description Available
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

48

Dixon 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

49

Dixon 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Dixon 532140294

No Description Available

$36.99

$

In Stock, Qty 20+

0

64

Dixon 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

Dixon 532123800

WASHER

$7.49

$

In Stock, only 3 left!

0

73

Dixon 874490548

No Description Available

$6.49

$

In Stock, only 2 left!

0

74

Dixon 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Dixon 532418184

No Description Available

$34.99

$

Usually ships in 3-10 days

0

92

Dixon 874760520

OBSOLETE - BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Dixon 532418188

No Description Available

$14.99

$

Usually ships in 3-10 days

0

114

Dixon 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

116

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

121

Dixon 532175611

No Description Available

$4.99

$

Usually ships in 3-10 days

0

122

Dixon 872010520

No Description Available

$6.49

$

Usually ships in 3-10 days

0

125

Dixon 817000512

OBSOLETE - SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

145

Dixon 532163168

No Description Available

$15.99

$

In Stock, only 3 left!

0

153

Dixon 532124788

No Description Available
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Dixon 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Dixon 532169484

RETAINER CLIP

$

$

Not available

161

Dixon 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Dixon 532418185

No Description Available

$34.99

$

In Stock, only 1 left!

0

166

Dixon 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Dixon 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

184

Dixon 532441636

OBSOLETE - HANDLE.PRKG.BRAKE.STLTH.TX.RED
(Superseded to 532411716)

$

$

Not available

186

Dixon 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Dixon 819133210

OBSOLETE - WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Dixon 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Dixon 532407504

No Description Available

$15.99

$

Usually ships in 3-10 days

0

190

Dixon 532407505

No Description Available

$10.99

$

In Stock, only 1 left!

0

196

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

197

Dixon 532199769

BRKT.ANIT-ROTATION.CLU

$8.99

$

In Stock, Qty 11

0

206

Dixon 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Dixon 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

203

Dixon 819111116

No Description Available
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

206

Dixon 532448596

No Description Available

$4.99

$

In Stock, only 1 left!

0

207

Dixon 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Dixon 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Dixon 532199466

ROD.CONTROL.CRUISE.STEALTH.TEX

$21.99

$

Usually ships in 3-10 days

0

210

Dixon 532197860

ROCKER.ASM.PEDAL.CONTR

$30.99

$

In Stock, only 1 left!

0

211

Dixon 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 10

0

213

Dixon 532412324

KNOB.CONTROL.CRUISE

$7.99

$

Usually ships in 3-10 days

0

214

Dixon 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, Qty 5

0

215

Dixon 532401723

PEDAL.REVERSE.TEX.GT.4

$7.49

$

Usually ships in 3-10 days

0

221

Dixon 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Dixon 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

224

Dixon 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

225

Dixon 532418187

No Description Available
(Superseded to 583369301)

$7.99

$

Usually ships in 3-10 days

0

306

Dixon 876020416

No Description Available

$3.99

$

Usually ships in 3-10 days

0
