D5-42MS01 - Toro 42" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991)

42" Side-Discharge Mower Deck

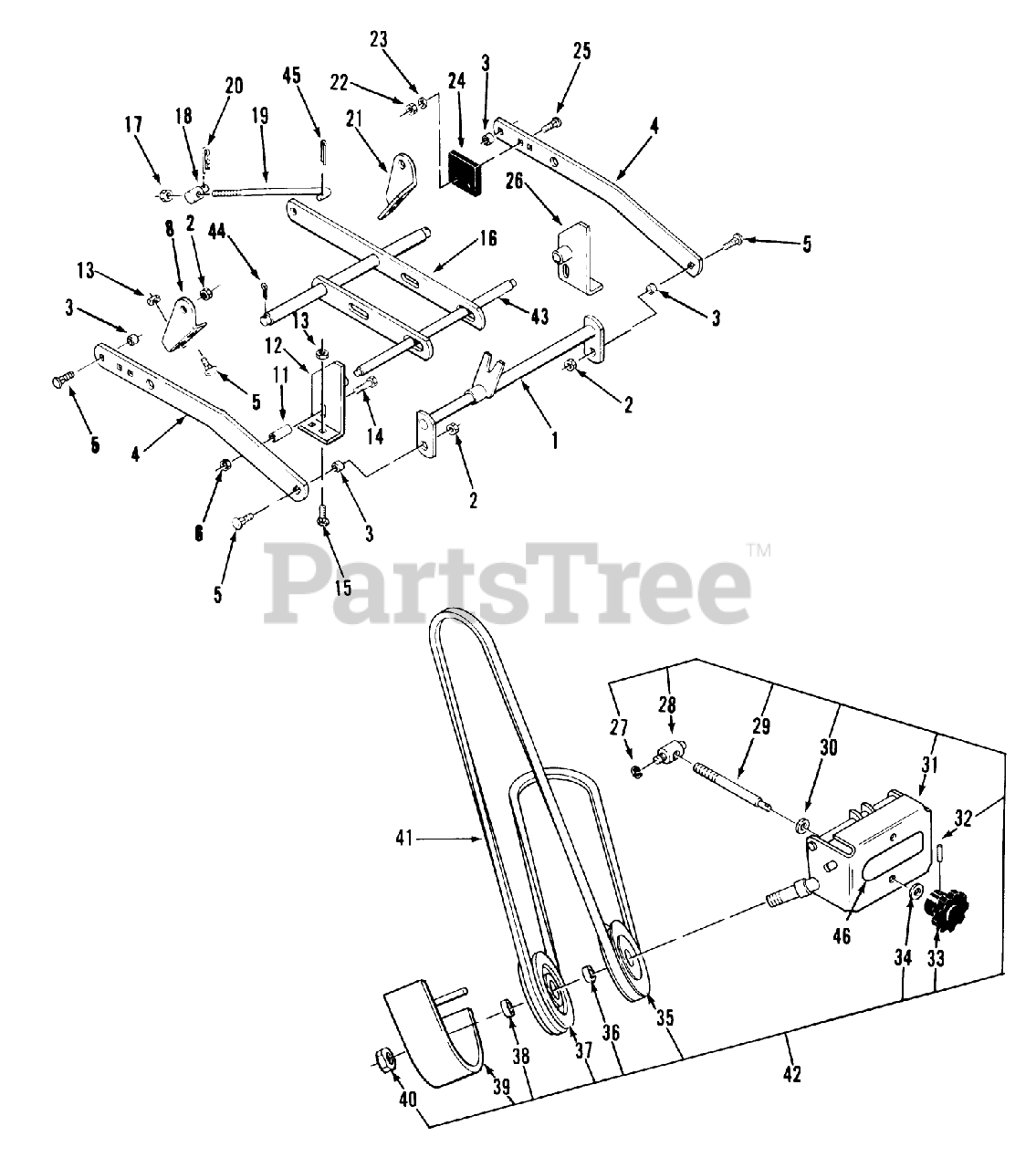

D5-42MS01 - Toro 42" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) > Parts Diagrams (3) > SUSPENSION ASSEMBLY

  • Title
110758

1

PLATE HOODSTAND B

Part# 110758

OEM Warranty Repair Part for Toro

Not available

102809

2

LOCKNUT-FLANGE

Part# 102809 (Superseded to 32128-19)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.08

111044

3

SPACER

Part# 111044

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

101777

4

Bar Draft

Part# 101777 (Superseded to 101777-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $67.40

3231-25

5

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.02

915664

6

Nut

Part# 915664 (Superseded to 3296-48)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.62

102430

8

Bracket-Rt. Rear

Part# 102430 (Superseded to 102430-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.77

979360

11

USE 979360P SPACER

Part# 979360 (Superseded to 9793604)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.93

102574

12

Bracket-R.H.

Part# 102574 (Superseded to 102574-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.64

3296-39

13

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.05

3232-3

14

BOLT-CARR

Part# 3232-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

3231-2

15

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.36

110269

16

Leveler

Part# 110269 (Superseded to 92-0981-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $113.04

3296-39

17

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.05

6739

18

TRUNNION-LIFT

Part# 6739

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.45

110173

19

Lift Rod

Part# 110173 (Superseded to 92-9841)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.59

933504

20

Hairpin

Part# 933504 (Superseded to 9335044)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

102429

21

Bracket-L.H. Rear

Part# 102429 (Superseded to 102429-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.77

3296-29

22

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

3256-3

23

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

102322

24

BUMPER

Part# 102322

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.08

3230-3

25

SCREW-CARR

Part# 3230-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.97

102575

26

Bracket-L.H.

Part# 102575 (Superseded to 102575-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.64

105797

27

RING-RETAINING

Part# 105797

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.47

101708

28

TRUNNION-DOUBLE

Part# 101708

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.20

101842

29

ROD ADJ

Part# 101842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $41.29

3256-24

30

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

101728

31

Front Support

Part# 101728 (Superseded to 101728-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $141.58

933156

32

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

101851

33

KNOB-ADJUSTMENT

Part# 101851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.25

108571

34

WASHER-SPRING

Part# 108571

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.90

104974

35

Pulley-V

Part# 104974 (Superseded to 92-7103)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.12

101734

36

SPACER

Part# 101734

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.15

104975

37

PULLEY-FLAT IDLER

Part# 104975

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.12

101757

38

SPACER-OUTER

Part# 101757

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.20

102582

39

Belt Cover

Part# 102582 (Superseded to 102582-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.39

915007

40

Nut

Part# 915007 (Superseded to 3219-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.25

102742

41

V-BELT

Part# 102742 (Superseded to 94-2501)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.00

101657

42

ASM-SUPPORT,IDLER

Part# 101657

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $425.86

102570

43

Front Shaft

Part# 102570 (Superseded to 102570-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.21

3272-12

44

PIN-COTTER

Part# 3272-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.11

3272-6

45

PIN-COTTER

Part# 3272-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.23

115197

46

Decal-Attac-O-Matic

Part# 115197 (Superseded to 94-6330)

OEM Warranty Repair Part for Toro

Not available
