DA 528 (56A-528-195) - MTD Pro Assembly Aerator Assembly Parts Diagram

Pro Assembly

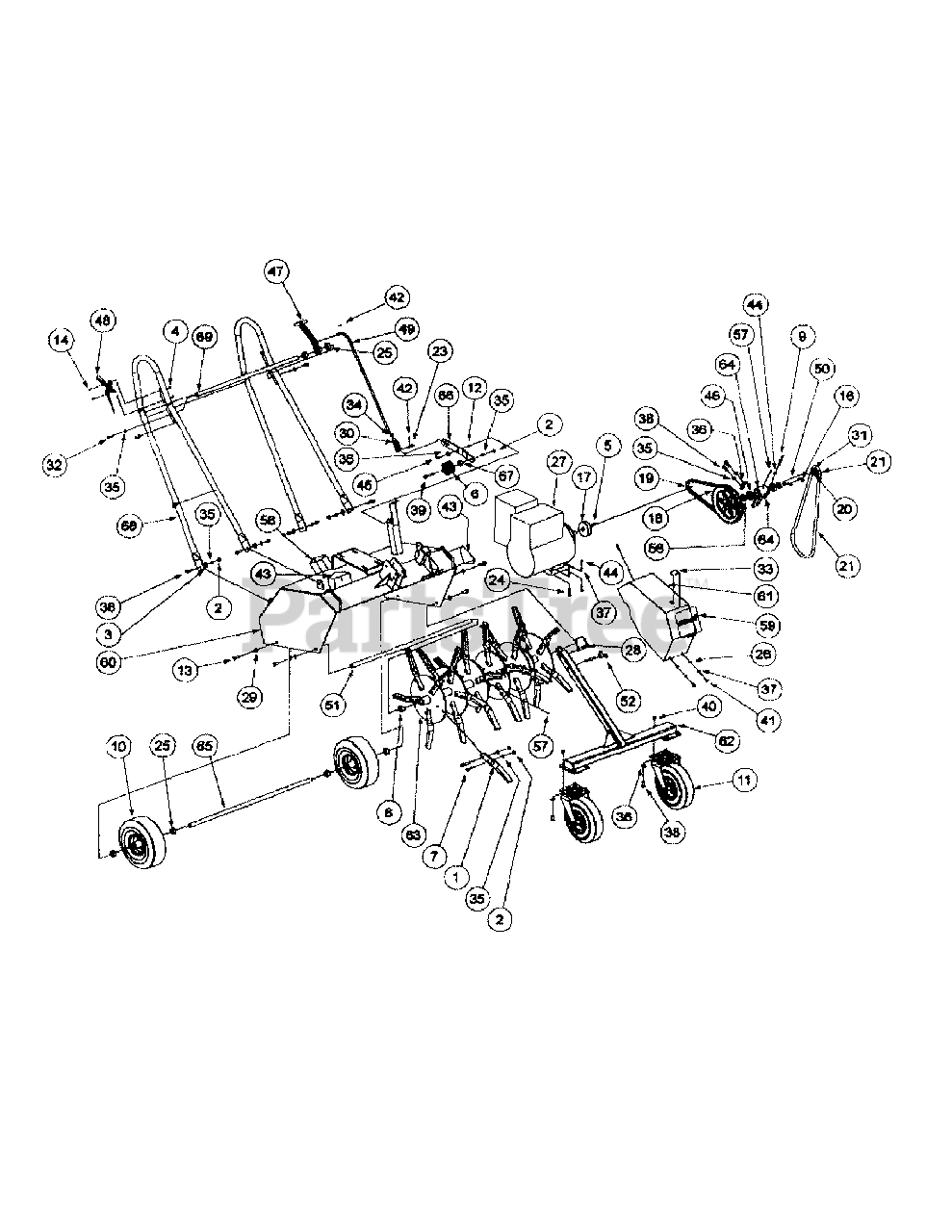

Aerator Assembly Parts Diagram

  • Title

1

MTD 00002674

Open Spoon 1/2"

Note: NLA

$

$

Currently unavailable

2

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

MTD 00006168

Flat Washer, USS 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, only 2 left!

0

4

MTD 712-0161

Lock Nut, Nylon Insert, #10-24

$4.49

$

In Stock, Qty 8

0

5

MTD 00006246

Key, 3/16" x 1"

$

$

Not available

6

MTD 00006519

Idler, Flat 3616

Note: NLA

$

$

Not available

7

MTD 00008495

Capscrew, 3/8-16 x 1-3/4"

$6.99

$

In Stock, Qty 9

0

8

MTD 00008646

Bushing, Flange, Sintered, Bronze

Note: NLA

$

$

Not available

9

MTD 00008666

Cap Screw, Square Head, 5/16-18 x 2-1/2

Note: NLA

$

$

Not available

10

MTD 00008679

Rear, Wheel, 410/350 x 4-2Ply, White

Note: NLA

$

$

Not available

11

MTD 00008700

Caster Wheel

Note: NLA

$

$

Not available

12

MTD 00008720

Bushing, 1/2 x 3/8 x 1/4, Bronze

Note: NLA

$

$

Not available

13

MTD 00008724

HHCS, 7/16-14, 1, Yellow Zinc

$

$

Not available

14

MTD 00008745

Screw, Round Head, Machine, 10-24 x 1/2

$

$

Not available

15

MTD 00008755

Clamp, To Hold Tubing on Handle

Note: NLA

$

$

Not available

16

MTD 914-0868

Woodruff Key, 3/16 x 3/4, #606

$3.99

$

In Stock, Qty 5

0

17

MTD 00009552

Small Pulley

Note: NLA

$

$

Not available

18

MTD 00009553

Large Pulley

$

$

Not available

19

MTD 00009557

V Belt

$

$

Not available

20

MTD 00009599

Sprocket, 40BS-10 x 3/4" BOR

Note: NLA

$

$

Not available

21

MTD 00009625

Chain #40 W/Master Link

Note: NLA

$

$

Currently unavailable

22

MTD 00009650

Master Link, #40

Note: NLA

$

$

Not available

23

MTD 00009678

Clevis Pin, 3/8 x 1 1/8, Zinc
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

24

MTD 00009708

Carrige Bolt, 5/16-18 x 1-1/2

$

$

Not available

25

MTD 00009748

Shaft Color, .760" x Bore w/SS Plate

Note: NLA

$

$

Not available

26

MTD 00009812

Flat Washer, 5/16, SAE, Yellow Zinc

$

$

Not available

27

MTD 00009816

Engine, Briggs & Stratton, 5 HP

Note: NLA

$

$

Not available

28

MTD 00009838

Lynch Pin, 3/8 x 2-1/4, Zinc

Note: NLA

$

$

Not available

29

MTD 00009920

Lock Washer, 7/16, Zinc

$

$

Not available

30

MTD 00009968

Yoke, 3/8-24 Forged

Note: NLA

$

$

Not available

31

MTD 00010985

Cap, Screw, Socket Set, 5/16-18 x 1/4

$

$

Not available

32

MTD 710-3119

HHCS, Standard, 3/8-16 x 3/4, Zinc

$6.99

$

In Stock, Qty 7

0

33

MTD 00011971

Decal, "Grease Daily"

Note: NLA

$

$

Not available

34

MTD 00012156

Hex Nut, 3/8-24, Yellow

$

$

Not available

35

MTD 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

36

MTD 00012158

Flat Washer, 3/8, SAE, Yellow Zinc

$4.49

$

In Stock, Qty 10

0

37

MTD 00012168

Lock Washer, 5/16, Zinc

$

$

Not available

38

MTD 00012171

HHCS, Standard, 3/8-16 x 1, Zinc

$3.49

$

Usually ships in 3-6 days

0

39

MTD 00012172

HHCS, Standard, 3/8-16 x 2, Zinc
(Superseded to 710-3096)

$7.99

$

In Stock, Qty 17

0

40

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

MTD 00012178

HHCS, Standard, 5/16-18 x 1/2, Zinc

$

$

Not available

42

MTD 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

43

MTD 00013311

Decal, Rotary "Danger-Keep Hands"

Note: NLA

$

$

Not available

44

MTD 00013433

Hex Nut, 5/16-18, Yellow

$3.99

$

Usually ships in 3-6 days

0

45

MTD 00013733

Shoulder Bolt, Socket, 3/8 x 3/8 Zinc

$

$

Not available

46

MTD 00017633

Bearing, Single, Seal, 1630-RS

Note: NLA

$

$

Not available

47

MTD 00020282

Handle, Throw-Out

$

$

Not available

48

MTD 00020326

Throttle Cable

Note: NLA

$

$

Not available

49

MTD 00020330

Belt Tensioner Rod, Zinc Plated

Note: NLA

$

$

Not available

50

MTD 00020334

Jackshaft Complete

$

$

Not available

51

MTD 00020340

Reel Shaft

Note: NLA

$

$

Not available

52

MTD 01004402

Pin, Release Quick 3/8 Dia X3.

$

$

Not available

54

MTD 00051484

Plate Base

Note: NLA

$

$

Currently unavailable

55

MTD 00051485

Carton Top Cap & Top Frame

Note: NLA

$

$

Currently unavailable

56

MTD 00060017

Flat Washer, .06, .776, 1.25, SS
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

57

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16 STR

$4.99

$

In Stock, Qty 14

0

58

MTD 00090006

Decal, "Made In America

$

$

Not available

59

MTD 01002139

Decal, "MTD PRO"

$

$

Not available

60

MTD 01002393

Housing Assembly

Note: NLA

$

$

Not available

61

MTD 01002395

Belt & Chain Guard Assembly

Note: NLA

$

$

Not available

62

MTD 01002397

Front Support Assembly

$

$

Not available

63

MTD 01002399

Reel Assembly

Note: NLA

$

$

Not available

64

MTD 01002401

Jackshaft Bearing Mount Assembly

Note: NLA

$

$

Not available

65

MTD 01002403

Right Rear Wheel Axle

Note: NLA

$

$

Not available

66

MTD 01002405

Belt Tensioner

$

$

Not available

67

MTD 00020342

Spacer, Belt Tensioner

Note: NLA

$

$

Not available

68

MTD 01002411

Handle Assembly w/Brace

Note: NLA

$

$

Not available

69

MTD 01002413

Handle Strut

$

$

Not available
