DC 1000 (45-01713-669) - Husqvarna Dump Cart (2006-03) Utility Cart Parts Diagram

Dump Cart

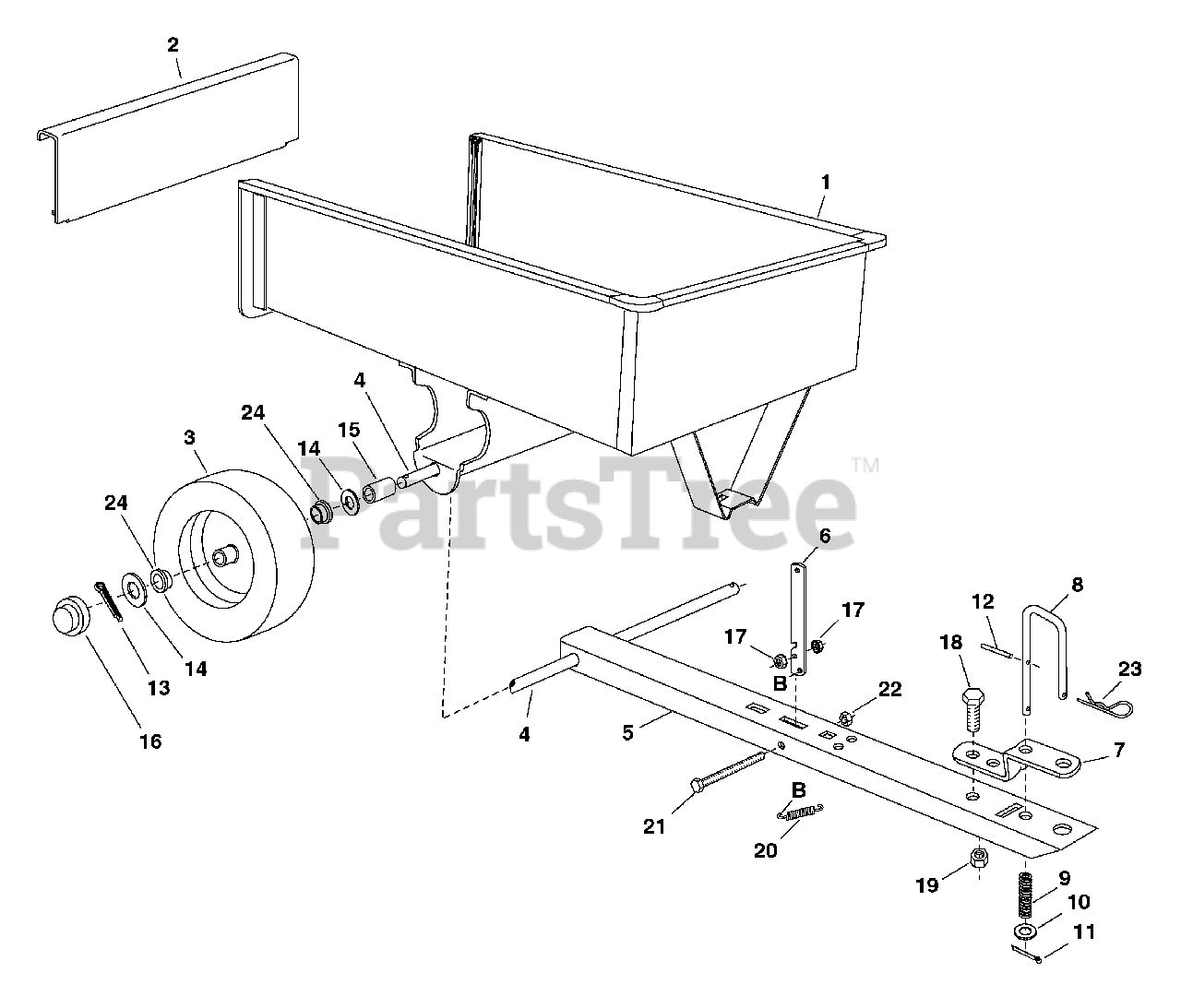

Utility Cart Parts Diagram

  • Title

1

Husqvarna 65244

Cart Body Assembly

$

$

Currently unavailable

2

Husqvarna 23502

Tailgate

$

$

Currently unavailable

3

Husqvarna 46272

Wheel, 15/6.00 x 8.00

$

$

Currently unavailable

4

Husqvarna 24897

Axle, Wheel 1" Dia.

$

$

Not available

5

Husqvarna 24750

Draw Bar Tongue

$

$

Currently unavailable

6

Husqvarna 24498

Latch Lock Lever

$

$

Currently unavailable

7

Husqvarna 23687

Hitch Bracket

$

$

Currently unavailable

8

Husqvarna 49672

Hitch Pin

$

$

Currently unavailable

9

Husqvarna 48905

Compression Spring

$

$

Currently unavailable

10

Husqvarna 43070

Washer, 3/8"

$

$

Not available

11

Husqvarna 142

Cotter Pin, 1/8" x 3/4"

$

$

Currently unavailable

12

Husqvarna 44665

Spring Pin, 5/32" x 1-1/4"

$

$

Currently unavailable

13

Husqvarna 43093

Cotter Pin, 1/8" Dia. x 1-1/2"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

14

Husqvarna 43601

Washer, Flat 1"

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

15

Husqvarna 44678

Spacer Tube

$

$

Currently unavailable

16

Husqvarna 43014

Hub Cap

$

$

Currently unavailable

17

Husqvarna 46980

Hex Nut, 5/16-18 (SEMS)

$

$

Currently unavailable

18

Husqvarna 43001

Hex Bolt, 3/8-16 x 1" Lg.

Note: Purchase Common Hardware Locally

$

$

Not available

19

Husqvarna HA21362

Nylock Nut, 3/8-16

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

20

Husqvarna 47408

Extension Spring

$

$

Currently unavailable

21

Husqvarna 47407

Hex Bolt, 5/16-18 x 3-3/4

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

22

Husqvarna 47810

Nylock Nut, 5/16-18

Note: Purchase Common Hardware Locally

$

$

Currently unavailable

23

Husqvarna 44343

Hairpin Cotter

$

$

Currently unavailable

24

Husqvarna 44488

Wheel Bearing

$

$

Currently unavailable

Husqvarna 49670

Owner's Manual

$

$

Currently unavailable
