DC 5500 - Husqvarna Dust Collection System (2008-06) FRAME Parts Diagram

Dust Collection System

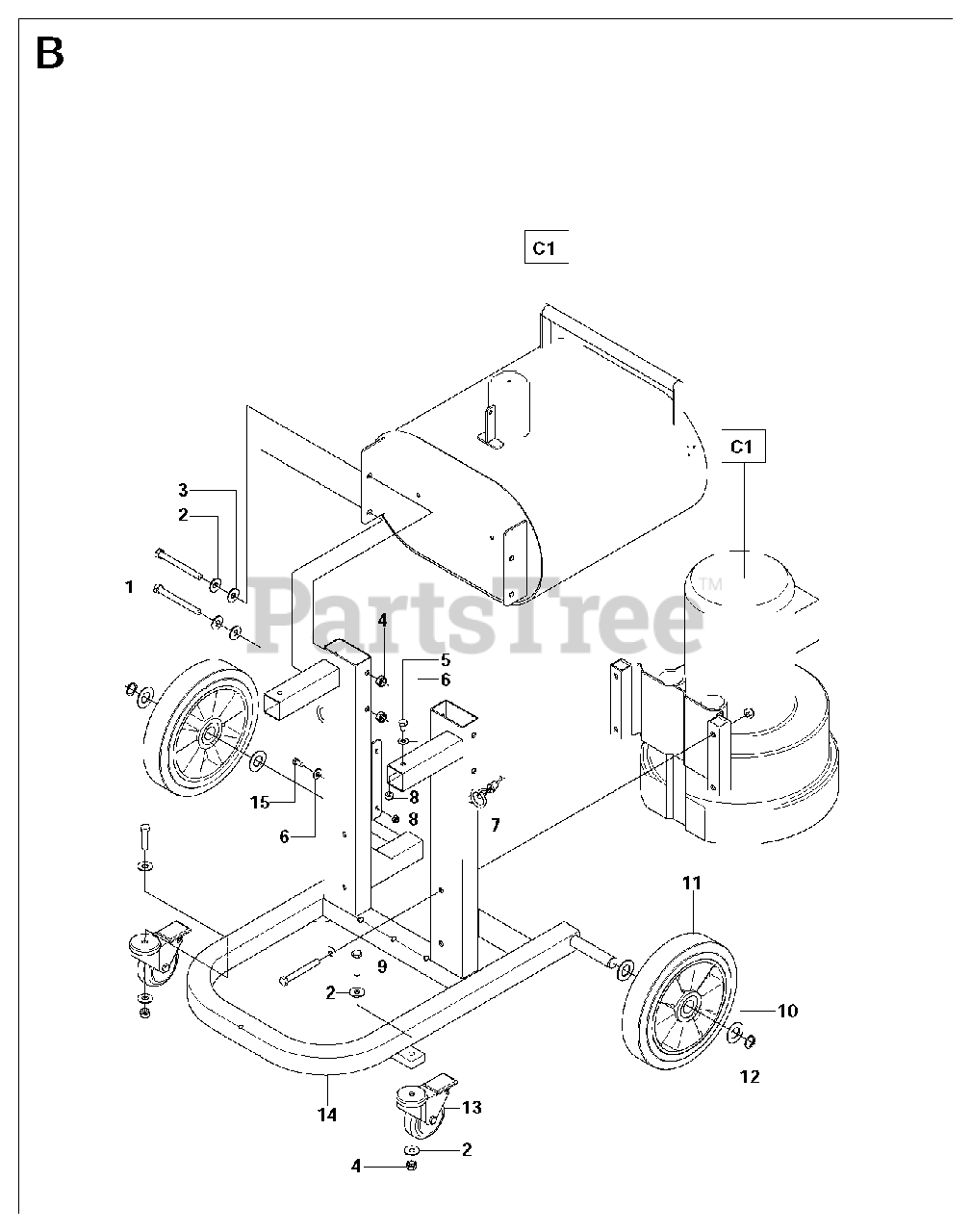

FRAME Parts Diagram

  • Title

1

Husqvarna Construction 725 25 56-51

SCREW EHHM

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 734 11 78-01

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 18

0

3

Husqvarna Construction 734 11 78-60

WASHER

$0.58

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 732 25 22-01

HEXAGON LOCKING NUT

$1.99

$

In Stock, Qty 5

0

5

Husqvarna Construction 725 24 91-71

SCREW EHHM

$1.99

$

In Stock, Qty 5

0

6

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna Construction 502 57 02-01

STRAP

$33.99

$

Usually ships in 3-10 days

0

8

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 6

0

9

Husqvarna Construction 725 25 42-71

SCREW EHHM

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 504 75 14-01

WASHER

$16.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 502 54 50-01

WHEEL

$182.07

$

Usually ships in 3-10 days

0

12

Husqvarna 735 31 26-00

CIRCLIP

$3.49

$

In Stock, Qty 10

0

13

Husqvarna Construction 502 56 91-01

WHEEL

$185.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 502 56 89-01

CHASSIS

$1439.67

$

Usually ships in 3-10 days

0

15

Husqvarna 725 24 93-76

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0
