DCG3 (539114873) - Dixon Grass Collection System (2007) HOOD ASSEMBLY Parts Diagram

Grass Collection System

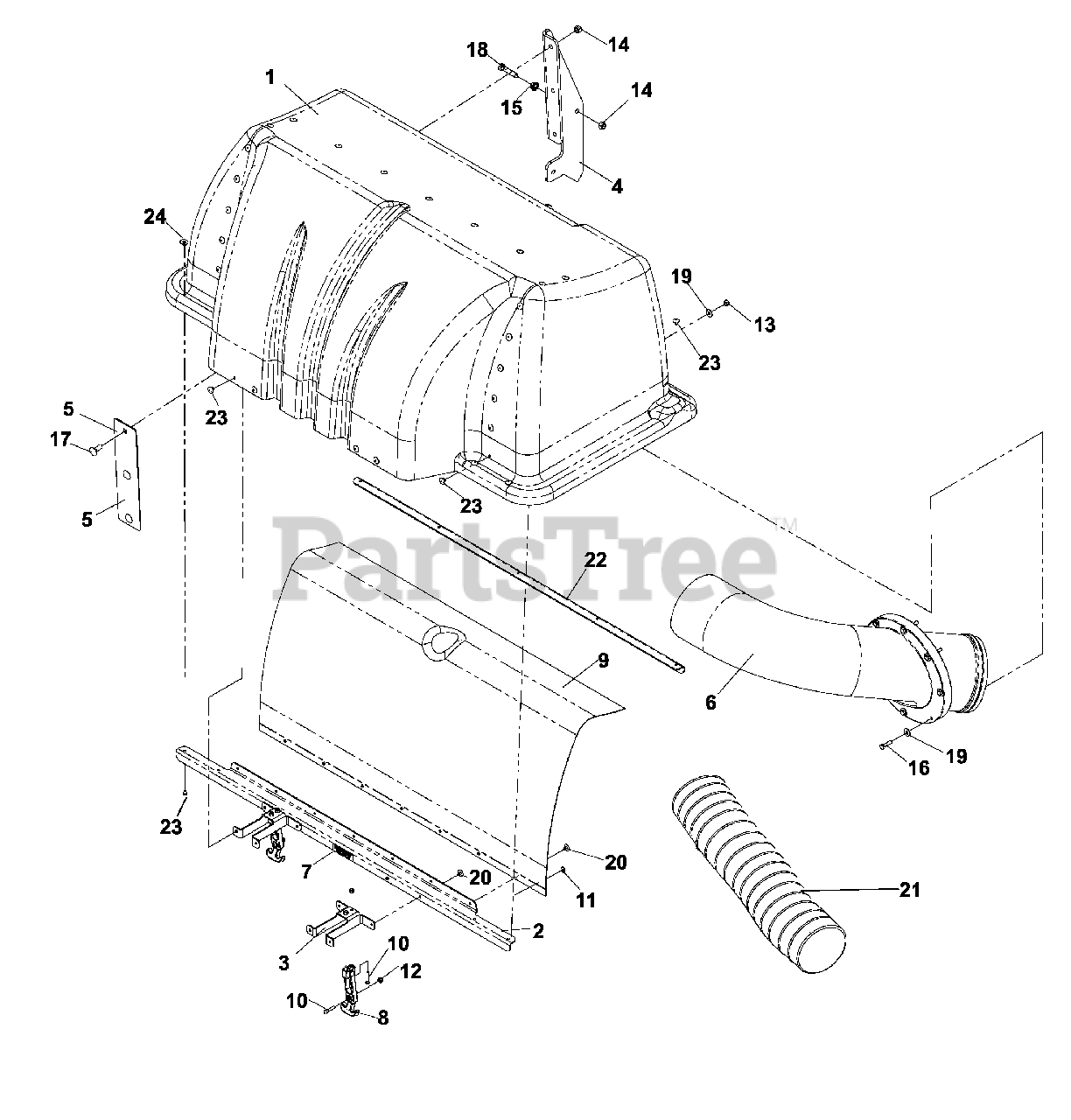

HOOD ASSEMBLY Parts Diagram

  • Title

1

Dixon 539111172

HOOD

$359.99

$

Usually ships in 3-10 days

0

2

Dixon 539111174

HOOD SUPPORT

$

$

Not available

3

Dixon 539111175

SUPPORT, DRAW LATCH

$59.99

$

Usually ships in 3-10 days

0

4

Dixon 539111177

HOOD HINGE

$

$

Not available

5

Dixon 539111181

MOUNT PLATE

$

$

Not available

6

Dixon 539111182

INLET TUB

$179.99

$

Usually ships in 3-10 days

0

7

Dixon 539111260

DECAL, VENTILATION

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539200478

DRAW LATCH, FLEXIBLE T-HANDLE
(Superseded to 540200478)

$41.99

$

Usually ships in 3-10 days

0

9

Dixon 539111183

MESH, POLY DIAMOND

$8.49

$

Usually ships in 3-10 days

0

10

Dixon 539111186

SCR, #10-24 X 1-1/8

$

$

Not available

11

Dixon 539105408

WASHER #10

$4.99

$

In Stock, Qty 8

0

12

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

13

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539990613

NUT 3/8C WHIZ

$

$

Not available

16

Dixon 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

18

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$1.99

$

Usually ships in 3-10 days

0

19

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

20

Dixon 539102744

RIVET E/16 X 1/4 LG FLG

$

$

Not available

21

Dixon 539115392

FLEX HOSE 6 X 60

$

$

Not available

22

Dixon 539111339

HOOD SUPPORT, REAR

$

$

Not available

23

Dixon 539200684

RIVERT, 3/16, STAVEX

$7.99

$

In Stock, Qty 9

0

24

Dixon 539110033

WASHER, #10 MACH SCR BLK OX

$3.99

$

Usually ships in 3-10 days

0

Dixon 539115719

HOSE CLAMP

Note: (NOT SHOWN)

$

$

Not available
