DCK3 (539114863) - Dixon Grass Collection System (2007) BLOWER ASSEMBLY Parts Diagram

Grass Collection System

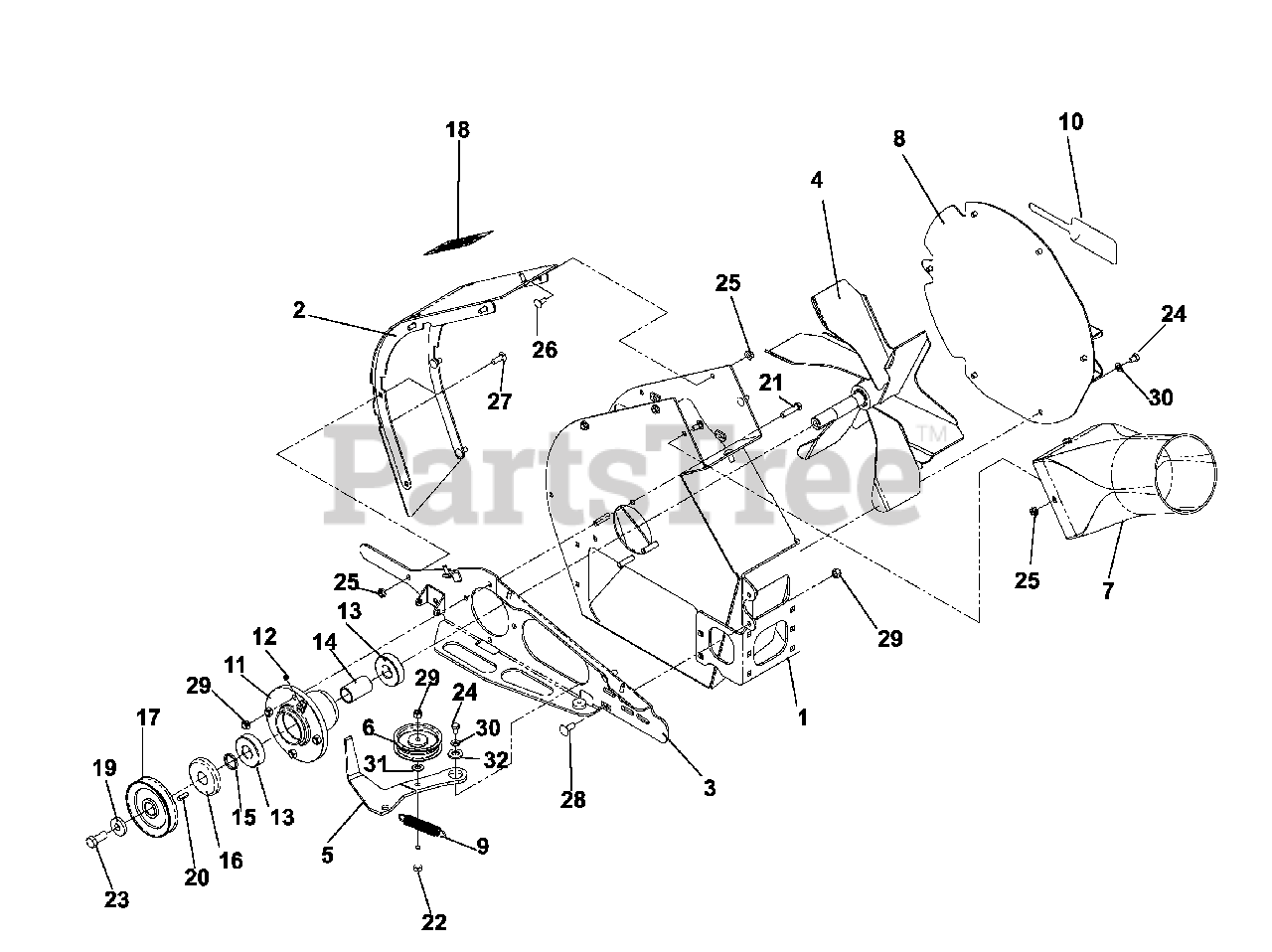

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Dixon 539117919

HOUSING WLDT

$156.99

$

Usually ships in 3-10 days

0

2

Dixon 539118255

SANDLINER WLDT.

$109.99

$

Usually ships in 3-10 days

0

3

Dixon 539118253

HUB PLATE

$

$

Not available

4

Dixon 539117917

FAN WLDT.
(Superseded to 539133013)

$607.99

$

Usually ships in 3-10 days

0

5

Dixon 539117924

IDLER ARM

$48.99

$

Usually ships in 3-10 days

0

6

Dixon 539117500

PULLEY, IDLER 3 METAL

$

$

Not available

7

Dixon 539118211

BLOWER EXIT TUBE

$

$

Not available

8

Dixon 539118270

OUTER PLT WLDT

$37.99

$

Usually ships in 3-10 days

0

9

Dixon 539115275

SPRING

$6.49

$

In Stock, only 1 left!

0

10

Dixon 539119902

DECAL, DIXON

$8.99

$

Usually ships in 3-10 days

0

11

Dixon 539117970

DECK HUB MACHINED

$

$

Not available

12

Dixon 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

13

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

14

Dixon 539117971

SPACER

$9.99

$

Usually ships in 3-10 days

0

15

Dixon 539115326

HUB PULLEY SPACER

$

$

Not available

16

Dixon 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

17

Dixon 539119264

PULLEY

$

$

Not available

18

Dixon 539115401

G.C.WARNING DECAL

$9.99

$

Usually ships in 3-10 days

0

19

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

20

Dixon 539115387

KEY - 1/4 X .88

$

$

Not available

21

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

22

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

24

Dixon 539124796

5/16-18X1/2 HHB GR5
(Superseded to 539130315)

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 2 left!

0

28

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0
