DCK3 (539114863) - Dixon Grass Collection System (2007) BLOWER KIT 52" Parts Diagram

Grass Collection System

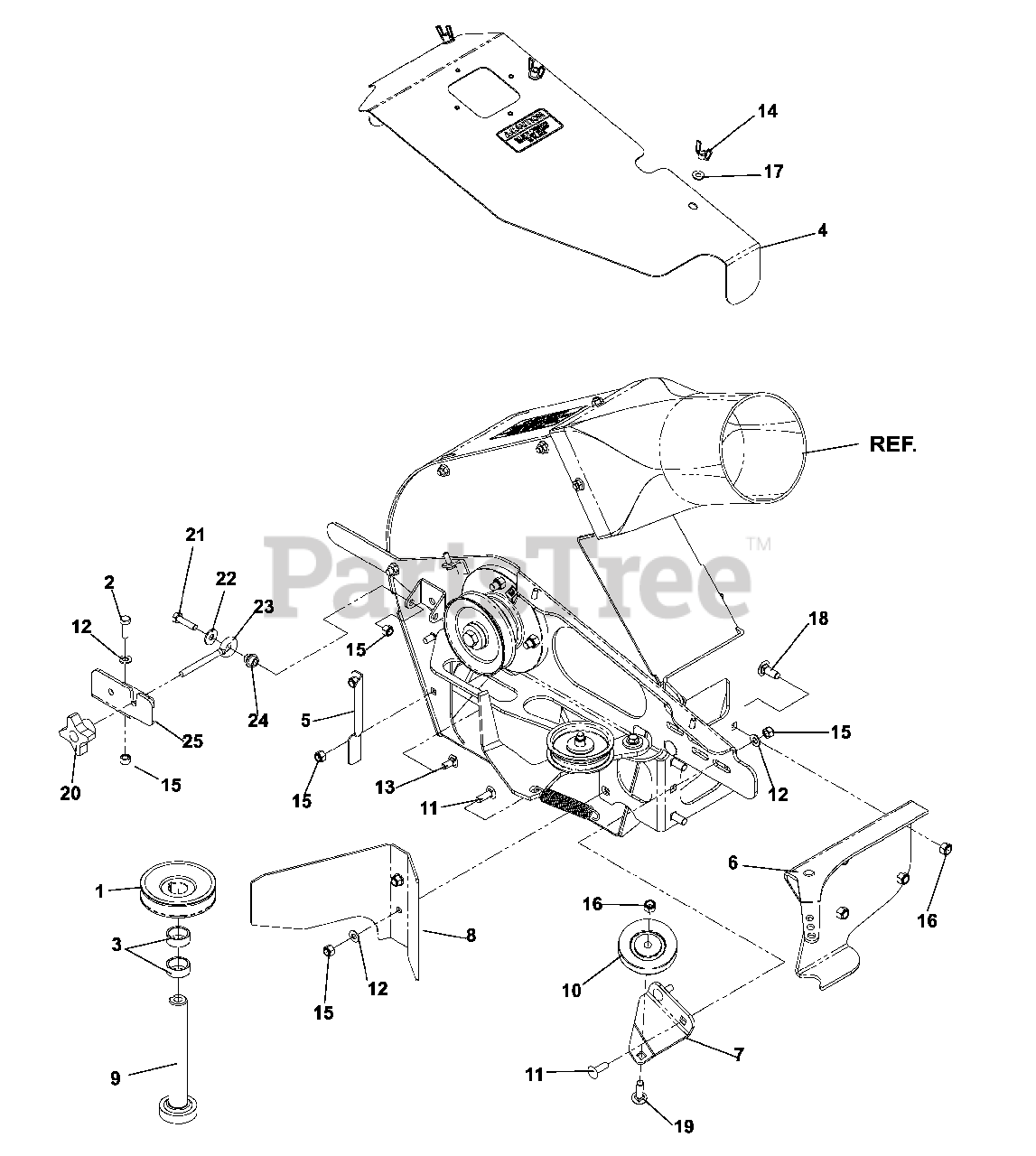

BLOWER KIT 52" Parts Diagram

  • Title

1

Dixon 539121215

V-PULLEY

$66.99

$

Usually ships in 3-10 days

0

2

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

3

Dixon 539119489

HUB BEARING SPACER

$

$

Not available

4

Dixon 539114993

GUARD ASSEMBLY. 52"

$283.99

$

Usually ships in 3-10 days

0

5

Dixon 539118257

ANGLE

$

$

Not available

6

Dixon 539118250

PIVOT WLDT

$

$

Not available

7

Dixon 539118249

FIXED IDLER BRKT.

$

$

Not available

8

Dixon 539117938

BLOCK OFF PLATE

$

$

Not available

9

Dixon 539117912

SHAFT LONG

$103.99

$

Usually ships in 3-10 days

0

10

Dixon 539117501

PULLEY, IDLER 3 METAL

$44.99

$

In Stock, only 1 left!

0

11

Dixon 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 2 left!

0

12

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539990997

WING NUT 1/4

$2.99

$

Usually ships in 3-10 days

0

15

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539115562

1/4` SAE FLAT WASHER
(Superseded to 539990055)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539109345

RHSNB, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539115746

SEAT KNOB 5/16-18

$8.99

$

Usually ships in 3-10 days

0

21

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

22

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

23

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

24

Dixon 539127092

SPRING CAP

$

$

Not available

25

Dixon 539117939

LATCH RECEIVER

$

$

Not available

Dixon 539120772

BELT, EZT HYDRO

Note: (NOT SHOWN)

$40.99

$

In Stock, Qty 11

0
