DCK3 (539114863) - Dixon Grass Collection System (2007) BLOWER KIT 60" Parts Diagram

Grass Collection System

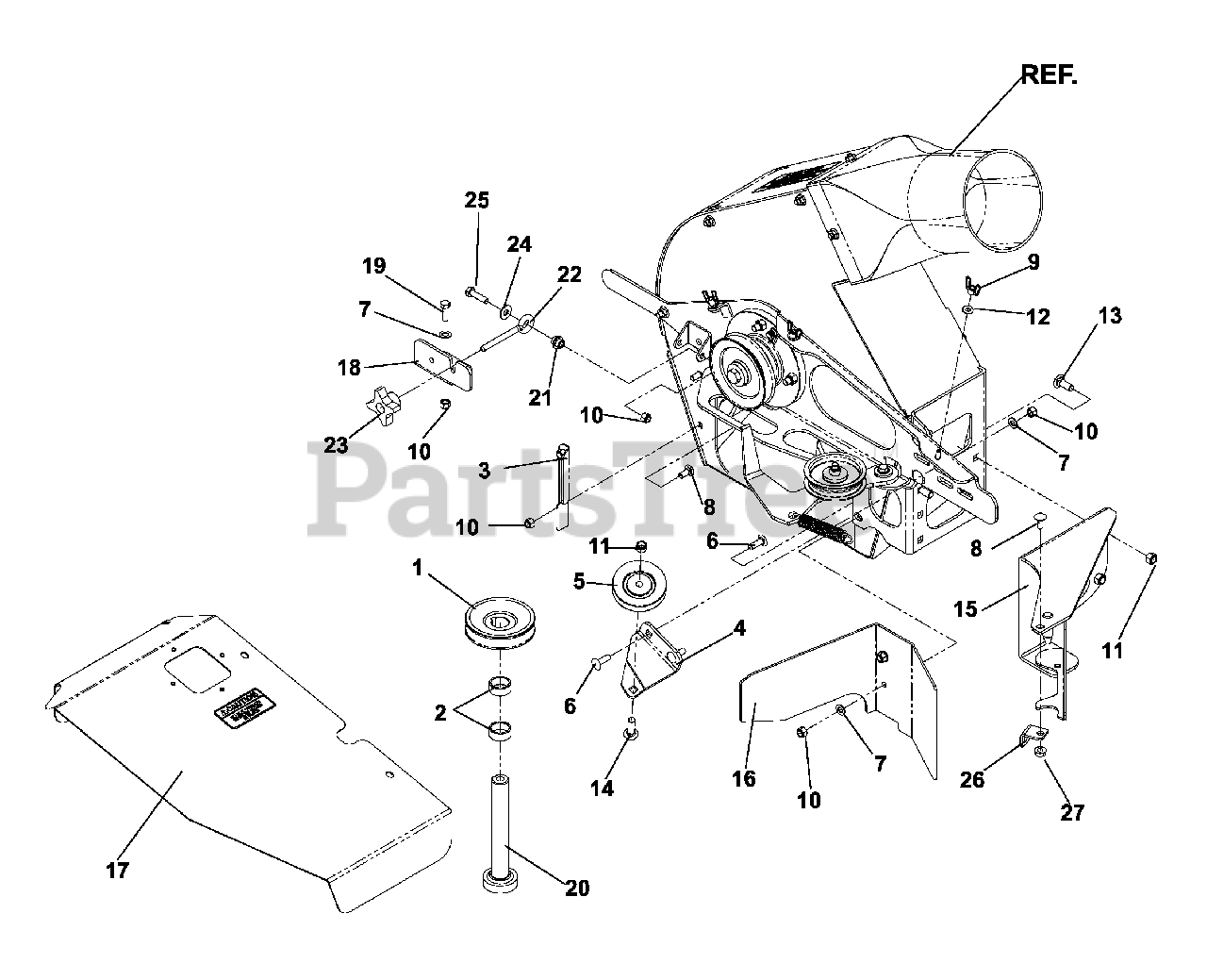

BLOWER KIT 60" Parts Diagram

  • Title

1

Dixon 539121215

V-PULLEY

$66.99

$

Usually ships in 3-10 days

0

2

Dixon 539119489

HUB BEARING SPACER

$

$

Not available

3

Dixon 539118257

ANGLE

$

$

Not available

4

Dixon 539118249

FIXED IDLER BRKT.

$

$

Not available

5

Dixon 539117501

PULLEY, IDLER 3 METAL

$44.99

$

In Stock, only 1 left!

0

6

Dixon 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 2 left!

0

7

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539990997

WING NUT 1/4

$2.99

$

Usually ships in 3-10 days

0

10

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539115562

1/4` SAE FLAT WASHER
(Superseded to 539990055)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539109345

RHSNB, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539118261

PIVOT WLDT.

$51.99

$

Usually ships in 3-10 days

0

16

Dixon 539118265

BLOCK OFF PLT

$

$

Not available

17

Dixon 539130198

GUARD ASSEMBLY, 60"

$311.99

$

Usually ships in 3-10 days

0

18

Dixon 539117939

LATCH RECEIVER

$

$

Not available

19

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

20

Dixon 539117912

SHAFT LONG

$103.99

$

Usually ships in 3-10 days

0

21

Dixon 539127092

SPRING CAP

$

$

Not available

22

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

23

Dixon 539115746

SEAT KNOB 5/16-18

$8.99

$

Usually ships in 3-10 days

0

24

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

25

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

26

Dixon 539121859

SPRING BRKT.

$12.99

$

Usually ships in 3-10 days

0

27

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

Dixon 539120772

BELT, EZT HYDRO

Note: (NOT SHOWN)

$40.99

$

In Stock, Qty 11

0
