DCRC (539130212) - Dixon Grass Collection System (2007) CLAMSHELL FRONT ASSEMBLY Parts Diagram

Grass Collection System

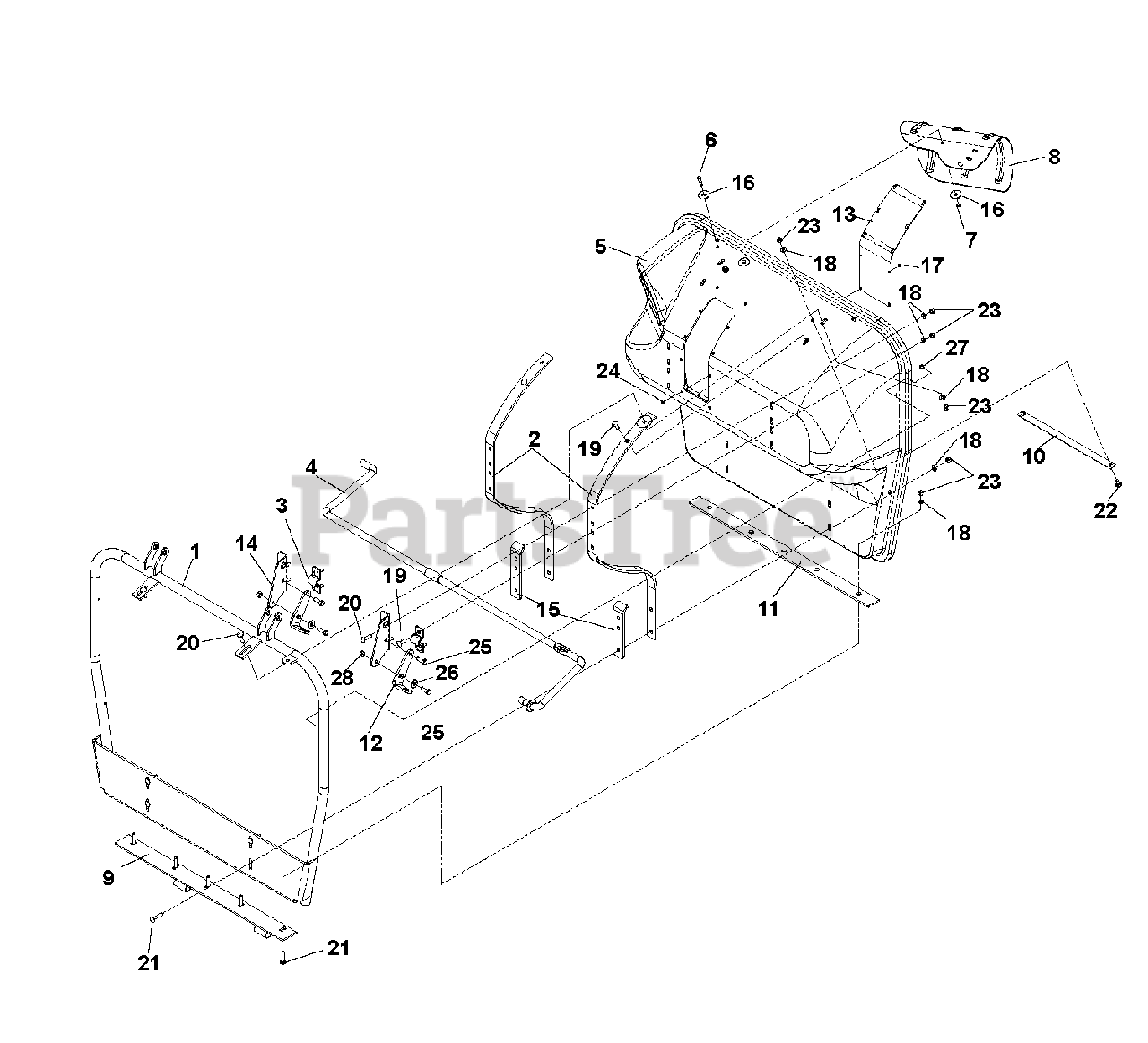

CLAMSHELL FRONT ASSEMBLY Parts Diagram

  • Title

1

Dixon 539119410

FRONT FRAME WLDT.

$485.99

$

Usually ships in 3-10 days

0

2

Dixon 539119409

STRAP

$

$

Not available

3

Dixon 539119368

STRAP

$18.99

$

Usually ships in 3-10 days

0

4

Dixon 539117986

LIFT SHAFT

$133.99

$

Usually ships in 3-10 days

0

5

Dixon 539119376

CLAM SHELL (FRONT)

$

$

Not available

6

Dixon 539115596

CLEVIS PIN 5/16

$12.99

$

Usually ships in 3-10 days

0

7

Dixon 539115489

RETAINER RING

$

$

Not available

8

Dixon 539119433

DEFLECTOR

$121.99

$

Usually ships in 3-10 days

0

9

Dixon 539114779

MOUNT.LOWER.CLAMSHELL

$

$

Not available

10

Dixon 539119458

STRAP

$42.99

$

Usually ships in 3-10 days

0

11

Dixon 539121194

CLAMSHELL SPACER

$

$

Not available

12

Dixon 539114782

BRACKET, SUPPORT

$

$

Not available

13

Dixon 539115441

WINDOW

$46.99

$

Usually ships in 3-10 days

0

14

Dixon 539114785

BRKT, SUPPORT, UPPER

$

$

Not available

15

Dixon 539117988

CLAMSHELL SUPPORT PLATE

$66.99

$

Usually ships in 3-10 days

0

16

Dixon 539115495

WASHER, FENDER 5/16

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539115560

5/8-11 HEX NUT
(Superseded to 539115670)

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 2 left!

0

20

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

21

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

22

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 539115661

POP RIVET 5/32 STEEL

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

26

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539119413

LARGE DOME RIVET

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
