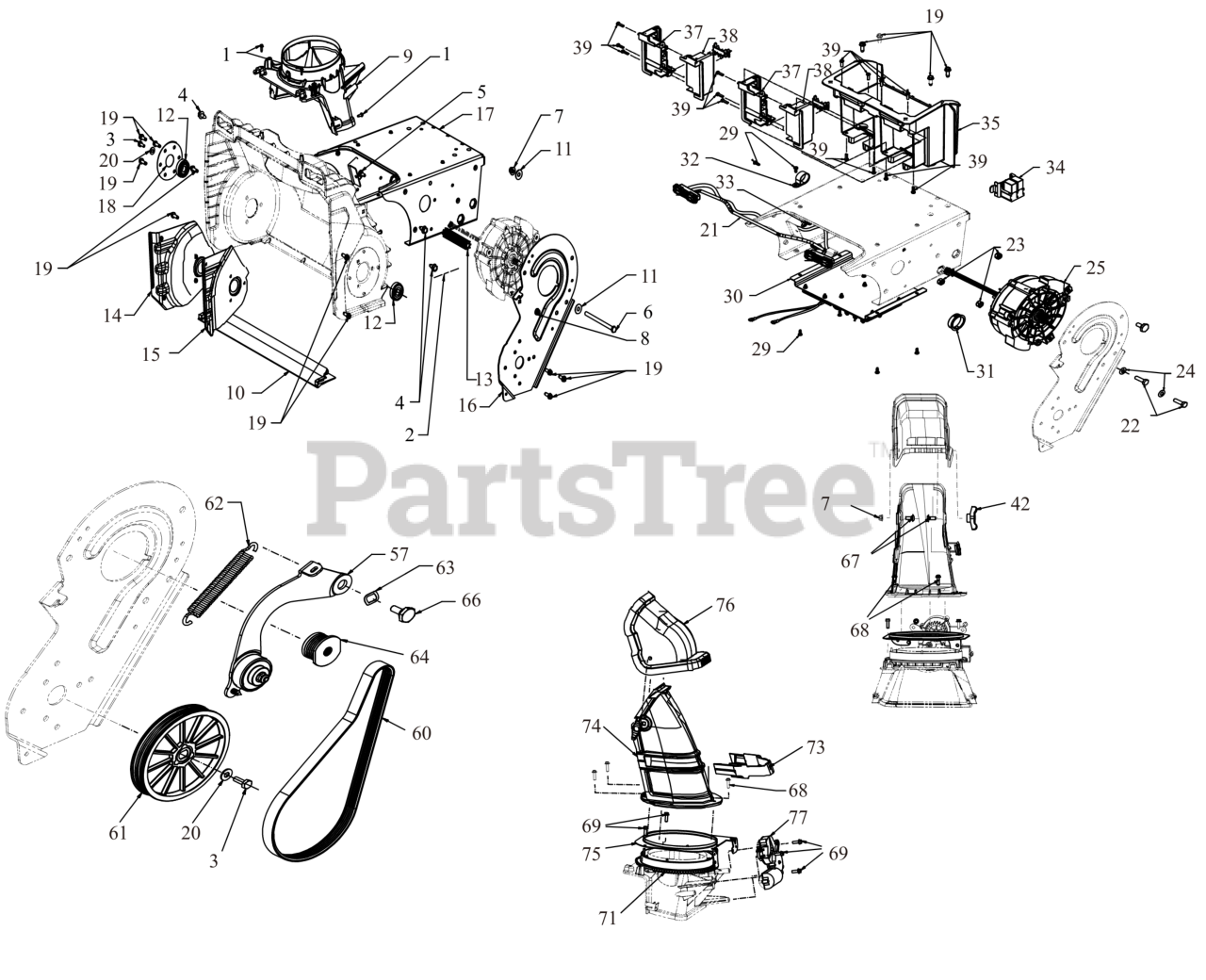

DCSNP2142B (32AC2A0DB38) - DeWALT Snow Blower, Electric (2023) General Assembly Parts Diagram

Snow Blower, Electric

General Assembly Parts Diagram

  • Title

1

MTD 710-04326

SCREW #8-16 x .50

$4.49

$

In Stock, Qty 11

0

2

MTD 710-04508

SCREW 8-16X.75

$4.49

$

In Stock, only 1 left!

0

3

MTD 710-0513A

BOLT 1/4-28 x .625 GR8

$4.99

$

In Stock, only 2 left!

0

4

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, only 3 left!

0

6

MTD 710-0974

SCREW 5/16-18 x 4.750 GR5

$12.99

$

Usually ships in 3-6 days

0

7

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-27374

CHUTE ADAPTER

$

$

Not available

10

MTD 731-27518

SHAVE PLATE 1.019X2.651X20.675

$11.99

$

Usually ships in 0 days

0

11

MTD 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

12

MTD 741-04517

BALL BEARING

$9.49

$

In Stock, only 2 left!

0

13

MTD 750-11113

SPACER 0.345X0.875X3.895

$3.49

$

Usually ships in 0 days

0

14

MTD 790-04010

BEARING CUP (RH)

$8.99

$

Usually ships in 0 days

0

15

MTD 790-04011

BEARING CUP (LH)

$11.99

$

Usually ships in 0 days

0

16

MTD 790-04012

MOTOR PLATE

$33.99

$

Usually ships in 0 days

0

17

MTD 790-04015

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$53.99

$

Usually ships in 0 days

0

18

MTD 790-04016

BEARING COVER (RH)

$2.99

$

Usually ships in 0 days

0

19

MTD BD-NA327792

SCREW-TT-1/4 20X0.75-HXINDWSH

$0.99

$

Usually ships in 0 days

0

20

MTD 736-04446

FLAT WASHER

$4.99

$

In Stock, Qty 17

0

21

MTD 625P08430A

HEADLIGHT HARNESS (W/LED)

$49.99

$

In Stock, Qty 6

0

22

MTD 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.99

$

Usually ships in 3-6 days

0

23

MTD 712-0411

HEX NUT

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0278

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

25

MTD NA455006

MOTOR

$337.99

$

Usually ships in 0 days

0

29

MTD BD-NA163515

SCREW-TRS-#8-32-0.50-RNDPHI-TYPEF

$0.99

$

Usually ships in 0 days

0

30

MTD NA477423

CONTROL

$412.99

$

Usually ships in 0 days

0

30

MTD 729-05056

CLIP-WIRING-ROSEBUD-ZIPTIE

$1.49

$

Usually ships in 0 days

0

30

MTD BD-NA163515

SCREW-TRS-#8-32-0.50-RNDPHI-TYPEF

$0.99

$

Usually ships in 0 days

0

31

MTD 735-07261

GROMMET 1.31X1.50X0.45

$1.49

$

Usually ships in 0 days

0

32

MTD 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

33

MTD 729-05056

CLIP-WIRING-ROSEBUD-ZIPTIE

$1.49

$

Usually ships in 0 days

0

34

MTD NA393821

BRACKET

$70.99

$

Usually ships in 0 days

0

34

MTD BD-NA163515

SCREW-TRS-#8-32-0.50-RNDPHI-TYPEF

$0.99

$

Usually ships in 0 days

0

35

MTD 731-27445

BATTERY BOX

$27.99

$

Usually ships in 0 days

0

37

MTD 731-27364

BATTERY RAIL (RH)

$4.49

$

Usually ships in 0 days

0

38

MTD 731-27363

BATTERY RAIL (LH)

$4.49

$

Usually ships in 0 days

0

39

MTD BD-330019-12

SCREW M4.55X16 T20-PLAS THD FRM

$1.49

$

Usually ships in 3-6 days

0

42

MTD 720-05984

WING KNOB 5/16-18

$2.49

$

Usually ships in 0 days

0

57

BRACKET SA

$

$

Not available

57

MTD 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

57

MTD 750-04571

SHOULDER SPACER

$7.49

$

In Stock, Qty 6

0

57

MTD 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

57

MTD NA328025

SOCKET HEAD CAP SCREW 1/4-20-1.25

$1.49

$

Usually ships in 0 days

0

57

MTD NA322332

IDLER BRACKET

$10.99

$

Usually ships in 0 days

0

57

MTD NA383107

PUSH IN RIVET 0.25X0.63

$0.99

$

Usually ships in 0 days

0

60

MTD 754P07144

MICRO BELT

$14.99

$

Usually ships in 0 days

0

61

MTD 731-27554

MICRO PULLEY 5.06

$10.99

$

Usually ships in 0 days

0

62

MTD 732-08404

EXTENTSION SPRING .625x4.972x.102

$5.99

$

Usually ships in 0 days

0

63

MTD 736-0232

WAVE WASHER

$4.99

$

In Stock, only 3 left!

0

64

MTD 756-06902

MICRO PULLEY

$13.99

$

Usually ships in 0 days

0

66

MTD 738-04439

SHOULDER SCREW

$4.49

$

In Stock, only 4 left!

0

67

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

68

MTD 710-12132

SCREW M6X22

$0.99

$

Usually ships in 0 days

0

69

MTD 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

71

MTD 717-06889

BEVEL GEAR 95T

$13.99

$

Usually ships in 0 days

0

73

MTD 731-27959

CHUTE PLUG

$7.99

$

Usually ships in 0 days

0

74

MTD 731-27960

LOWER CHUTE 6.5 DIA

$24.99

$

Usually ships in 0 days

0

75

MTD 790-00471B

GEAR BRACKET

$22.99

$

Usually ships in 0 days

0

76

MTD 731-27637

UPPER CHUTE DEFLECTOR

$12.99

$

Usually ships in 0 days

0

77

MTD 618-10053

CHUTE ROTATION DRIVE ASSEMBLY

$74.99

$

Usually ships in 0 days

0
