DCSNP2142B (32AC2A0DB38) - DeWALT Snow Blower, Electric (2023) Housing Assembly Parts Diagram

Snow Blower, Electric

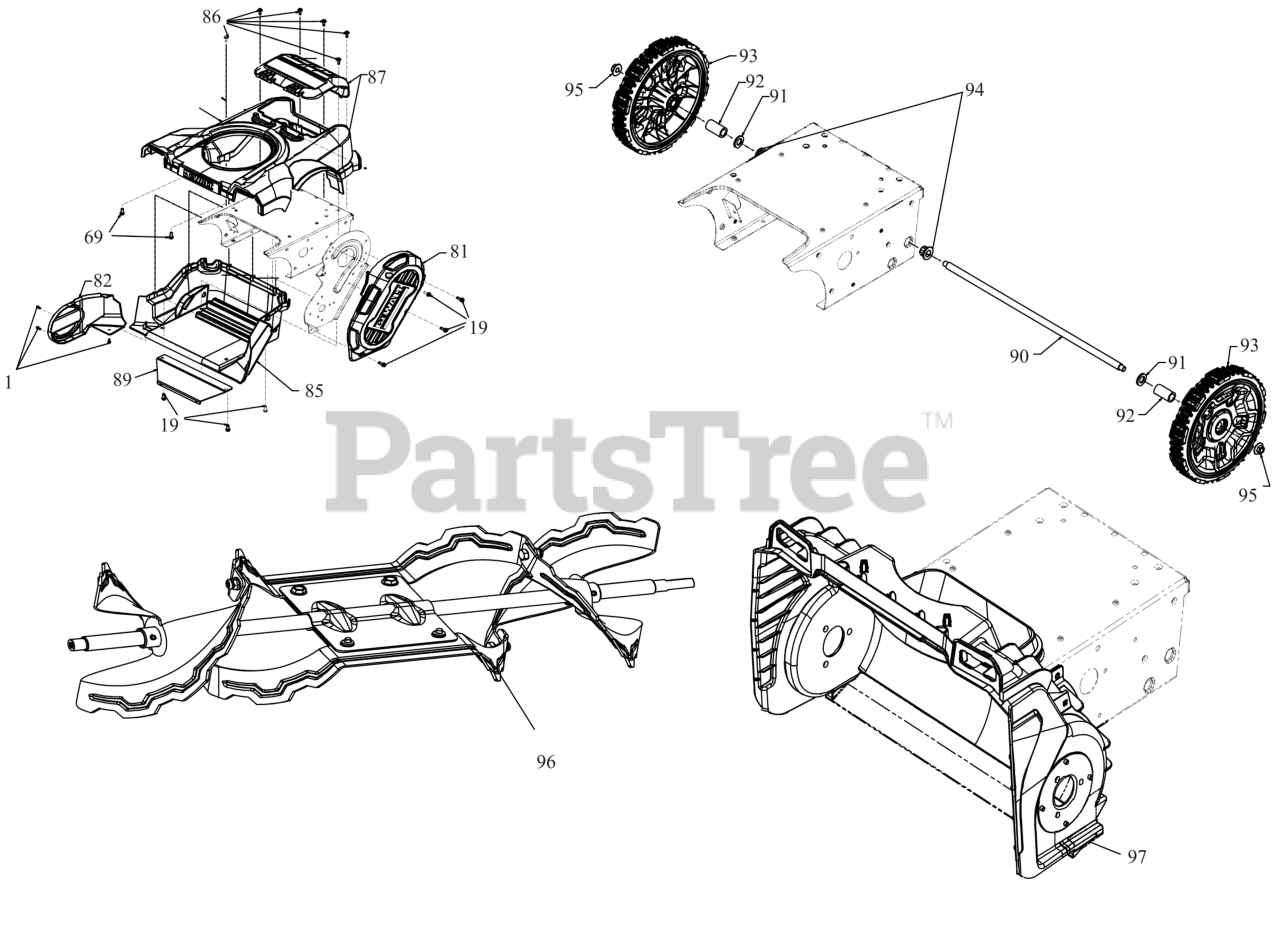

Housing Assembly Parts Diagram

  • Title

1

MTD 710-04326

SCREW #8-16 x .50

$4.49

$

In Stock, Qty 11

0

19

MTD BD-NA327792

SCREW-TT-1/4 20X0.75-HXINDWSH

$0.99

$

Usually ships in 0 days

0

69

MTD 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

81

MTD 731-27438

BELT COVER

$24.99

$

Usually ships in 0 days

0

82

MTD 731-27439

HOUSING COVER (RH)

$13.99

$

Usually ships in 0 days

0

85

MTD 731-27464

FRAME COVER (BOTTOM)

$46.99

$

Usually ships in 0 days

0

86

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 11

0

87

MTD NA477420

COVER

$101.99

$

Usually ships in 0 days

0

89

MTD 790-04077

SHAVE PLATE BRACE

$16.99

$

Usually ships in 0 days

0

90

MTD NA322379

AXLE SHAFT 19.188 LG

$14.99

$

Usually ships in 0 days

0

91

MTD 736-0192

FLAT WASHER .535 x .930 x .090

$4.99

$

In Stock, Qty 16

0

92

MTD 750-11102

SPACER .525 X .775X 1.375

$1.49

$

Usually ships in 0 days

0

93

MTD NA171659

WHEEL 9X1.5

$28.99

$

Usually ships in 0 days

0

94

MTD 741-04108

HEX FLANGE BEARING .506ID x .590LG

$6.49

$

In Stock, only 2 left!

0

95

MTD 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

96

MTD NA328190

AUGER ASSEMBLY

Note: (See Separate Breakdown)

$262.99

$

Usually ships in 0 days

0

97

MTD 731-27515

AUGER HOUSING

$72.99

$

Usually ships in 0 days

0
