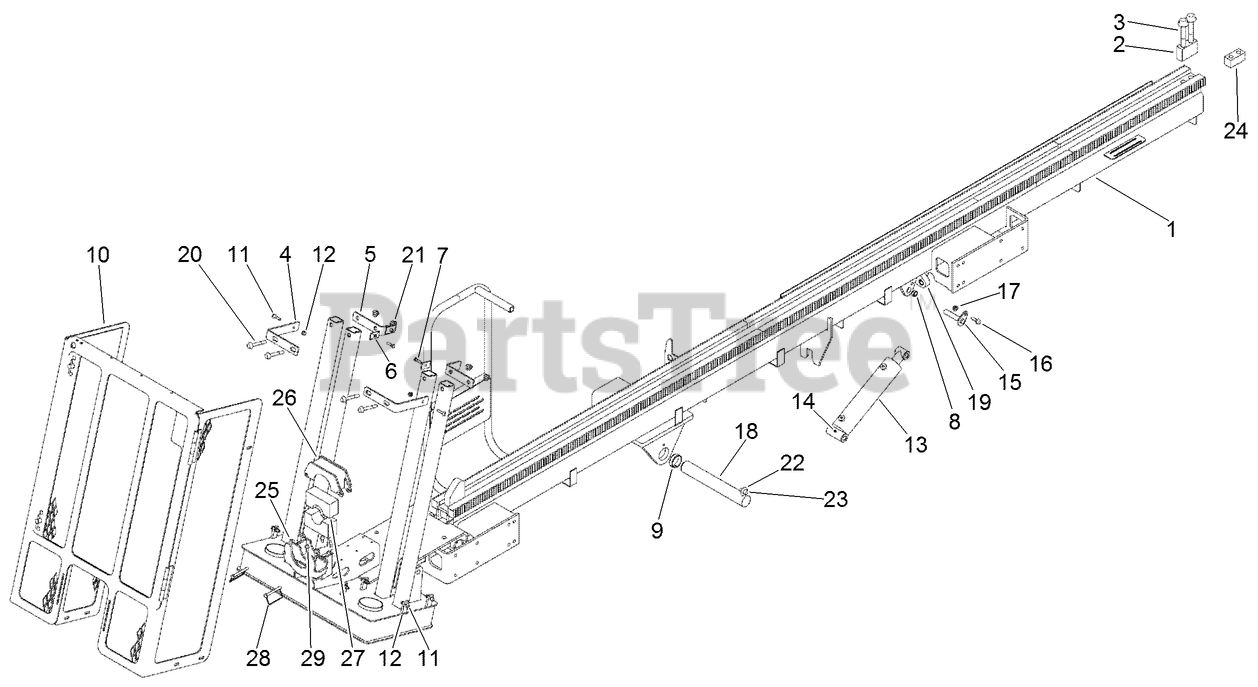

DD 2024 - Toro EarthPro Directional Drill (2007) THRUST FRAME MACHINES WITH SERIAL NUMBERS DD202480125 AND AFTER Parts Diagram

EarthPro Directional Drill

THRUST FRAME MACHINES WITH SERIAL NUMBERS DD202480125 AND AFTER Parts Diagram

  • Title

Toro AU110695

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110486

WELDMENT - Thrust Frame

$

$

Currently unavailable

2

Toro AU12GB2030

STOP BLOCK - Rear

$

$

Currently unavailable

3

Toro AU100378

SCREW-HHF

$

$

Currently unavailable

4

Toro AU113696

POST - Tie, Stakedown
(Superseded to AU113696-03)

$

$

Not available

5

Toro AU12GB2011

HOLDER - Hose
(Superseded to AU12GB2011-03)

$

$

Not available

6

Toro AU8CL21201

PLATE-COVER, TWIN

$

$

Currently unavailable

7

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, only 2 left!

0

8

Toro AU108956

BUSHING-SPRG.75"IDX1.00"X .5"L

$

$

Currently unavailable

9

Toro AU108974

SPRING BUSHING - 2 ID x 2.25 OD x .75 Long

$

$

Currently unavailable

10

Toro AU113338

COVER - Stakedown

$

$

Currently unavailable

11

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

12

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU109341

CYLINDER-HYDRAULIC

$

$

Currently unavailable

14

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU109483

PIN-FLAG

$

$

Currently unavailable

16

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU109489

PIN ASSEMBLY - Boom

$

$

Currently unavailable

19

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

20

Toro AU100354

SCREW, METRIC FLANGE w/BODY-M12 x 90

$9.99

$

Usually ships in 3-6 days

0

21

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

22

Toro AUH313981

PIN-RETAINER

$68.99

$

Usually ships in 3-6 days

0

23

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

24

Toro AU112132

BLOCK - Tapped

$

$

Currently unavailable

25

Toro AU113517

WELDMENT - Rod Guide Bushing Bottom
(Superseded to AU113517-03)

$

$

Not available

26

Toro AU113516

WELDMENT - Rod Bushing Top
(Superseded to AU113516-03)

$

$

Not available

27

Toro AU113442

GUIDE-ROD, BUSHING

$

$

Not available

28

Toro AU113514

PIN-SELF LOCKING

$

$

Currently unavailable

29

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0
