DD 2024 - Toro EarthPro Directional Drill (2007) VALVE - 9 SECTION / MULTIFUNCTION Parts Diagram

EarthPro Directional Drill

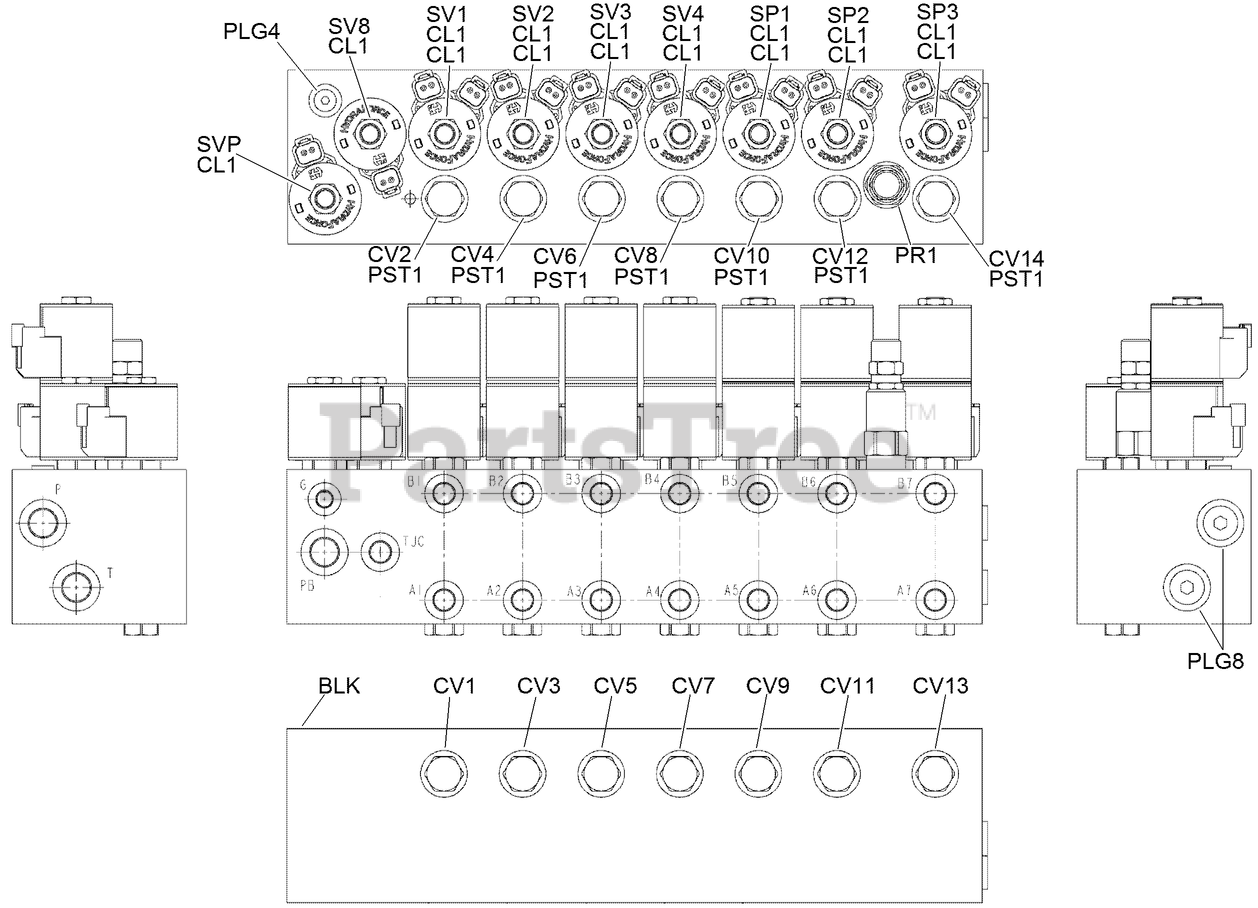

VALVE - 9 SECTION / MULTIFUNCTION Parts Diagram

  • Title

Toro AU111494

9 SECTION HYD VALVE ASM

Note: Not illustrated

$

$

Not available

10

Toro AU21001199

PLUG -4 6103004 (PLG4)

Note: Not illustrated

$

$

Not available

11

Toro AU21001207

EXPANDER PLUG - 6108080

Note: Not illustrated

$

$

Not available

12

Toro AU116745

MANIFOLD BLOCK - 7291560 (BLK)

Note: Not illustrated

$

$

Not available

1

Toro AU112257

VALVE-CARTRIDGE, MOTOR SPOOL

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU116736

SOLENOID ASM
(Superseded to 115-5400)

Note: Not illustrated

$402.99

$

Usually ships in 3-6 days

0

3

Toro AU116737

SOLENOID ASM
(Superseded to 120-0913)

Note: Not illustrated

$261.99

$

Usually ships in 3-6 days

0

4

Toro AU116738

SOLENOID ASM

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU116739

VALVE-REDUCING, PRESSURE

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU21001312

COIL - 4303712 (CL1)
(Superseded to 119-4619)

Note: Not illustrated

$92.99

$

Usually ships in 3-6 days

0

7

Toro AU21001210

CARTRIDGE - CV08-20-0-N-25 (CV1 through CV14)
(Superseded to 107-7524)

Note: Not illustrated

$88.99

$

Usually ships in 3-6 days

0

8

Toro AU116741

PISTON ASM
(Superseded to 120-2554)

Note: Not illustrated

$134.99

$

Usually ships in 3-6 days

0

9

Toro AU21001197

PLUG -8 6103008 (PLG8)

Note: Not illustrated

$

$

Not available
