DD 4045 - Toro EarthPro Directional Drill (2009) CARRIAGE ASSEMBLY Parts Diagram

EarthPro Directional Drill

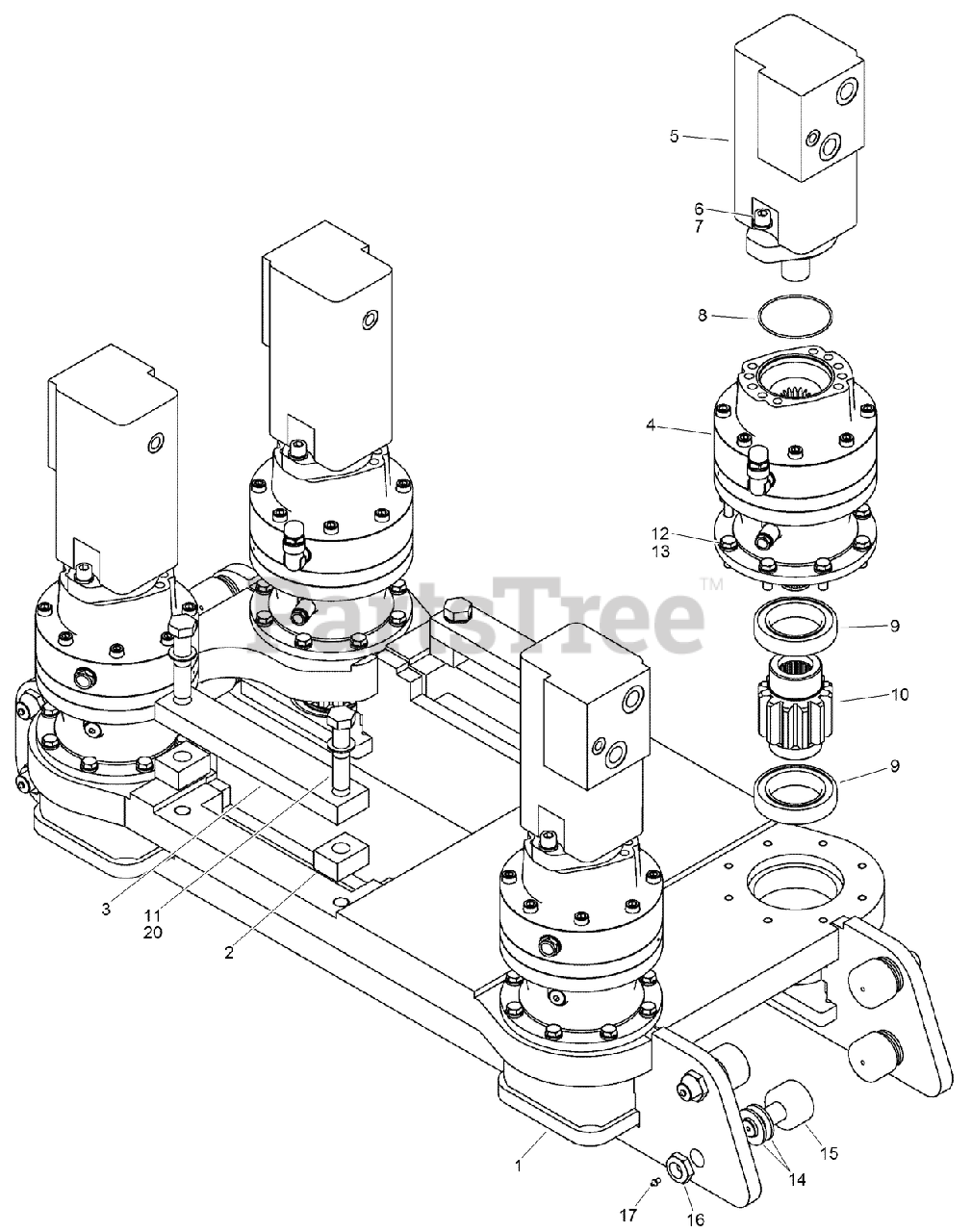

CARRIAGE ASSEMBLY Parts Diagram

  • Title

Toro AU115600

ASSEMBLY - Carriage

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115601

WELDMENT - Carriage

$

$

Currently unavailable

2

Toro AU32GB4022

SPACER - Clamp, Carriage
(Superseded to AU32GB4022-03)

$

$

Not available

3

Toro AU32GB4021

CLAMP - Rotary Box, Carriage

$

$

Currently unavailable

4

Toro AU8GB80063

PLANETARY GEARBOX ASM

$

$

Currently unavailable

5

Toro AU115604

HYD MOTOR ASM

$

$

Currently unavailable

6

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

7

Toro AU864-12045

SCREW-HSFH

$2.49

$

Usually ships in 3-6 days

0

8

Toro AU8HS51152

O-RING

$

$

Currently unavailable

9

Toro AU8CF40005

BEARING-BALL, RADIAL

$

$

Currently unavailable

10

Toro AU32GB4020

PINION-DRIVE, CARRIAGE

$

$

Currently unavailable

11

Toro AU8LW51112

WASHER - Lock, Reg 0.438 in ZND
(Superseded to 3253-9)

$1.49

$

In Stock, only 3 left!

0

12

Toro AU492-11044

WASHER - Spring Lock, Reg 0.438 in ZND

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU8HH65358

SCREW - Cap, M10 x 30 mm

$

$

Currently unavailable

14

Toro AU496-11094

WASHER

$2.99

$

Usually ships in 3-6 days

0

15

Toro AU8CF30032

BEARING-FOLLOWER, CAM

$

$

Currently unavailable

16

Toro AU131-465

NUT - Jam, Hex, 7/8 - 14 NF, Nyloc
(Superseded to 32-9660)

$3.49

$

In Stock, Qty 10

0

17

Toro AU8PP00104

FITTING - Lube, 3/16 Drive Type
(Superseded to 302-63)

$2.99

$

In Stock, Qty 20+

0

18

Toro AU8PP00200

CAP - Grease Fitting

Note: Not illustrated

$

$

Currently unavailable

19

Toro AU8CF30003

PLUG - Brass, 3/16

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU426-1256

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0
