DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME STAKEDOWN GUARD AND ROD GUIDE ASSEMBLY Parts Diagram

EarthPro Directional Drill

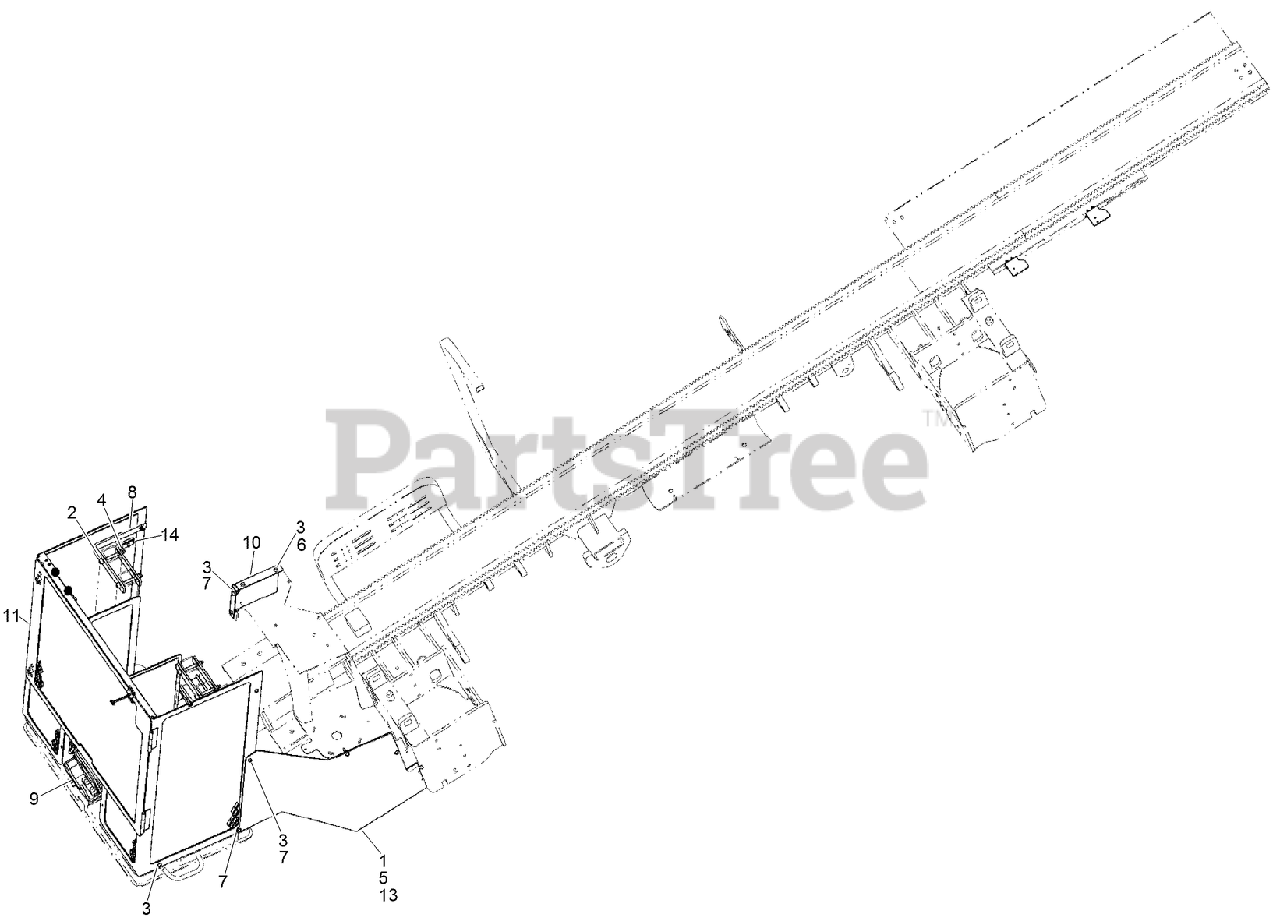

THRUST FRAME STAKEDOWN GUARD AND ROD GUIDE ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU100357

SCREW-HHF

$

$

Currently unavailable

3

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

5

Toro AU100862

NUT-U

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

7

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Toro AU119039

PLATE - Stakedown Guard Mounting

$

$

Currently unavailable

9

Toro AU119093

ASSEMBLY - Rod Guide

$

$

Currently unavailable

10

Toro AU121073

PLATE - Guard

$

$

Currently unavailable

11

Toro AU122455

COVER - Stakedown

$

$

Currently unavailable

12

Toro AU122460

PLATE - Proximity Switch Mount

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU122462

COVER, GUARD - 9 Section Valve
(Superseded to AU122462-03)

$

$

Not available

14

Toro AU122788

ASSEMBLY - Bracket

$

$

Currently unavailable
